STAGE 2.3 SYSTEM - SPRINTER AWD, 4X4 (2015-PRESENT 2500 ONLY) by VAN COMPASS

STAGE 2.3 SYSTEM - SPRINTER AWD, 4X4 (2015-PRESENT 2500 ONLY) by VAN COMPASS

SKU:7071-LM

Regular price $ 2,738.22 USD
Regular price Sale price $ 2,738.22 USD
Sale Sold out
SHOCK TUNE

Few upgrades are as critical to a vehicle as a tuned suspension package. Adventure in comfort and confidence with a Van Compass system tuned for your van and needs. The Stage 2.3 system utilizes front and rear adjustable piggy back 3.3 Fast Adjust shocks paired with a front Sumo Spring bump stop upgrade for owners that want to minimize sway and gain additional control over their suspensions feel and driving dynamic. This system is intended for lighter weight adventure vans that do not need a rear spring rate upgrade, and vans where the owner do not want any change in ride height.

Our Stage 2.3 system retains the factory suspension geometry and transforms the Mercedes Sprinter 4x4 from a violently swaying and lumbering cargo van into a vehicle with true German luxury car feeling and control, both on and offroad. Vehicle control and suspension compliance are the two areas of ride quality we focused on when we engineered this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.

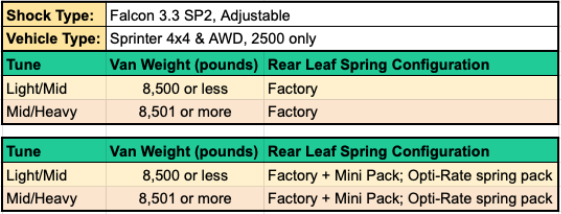

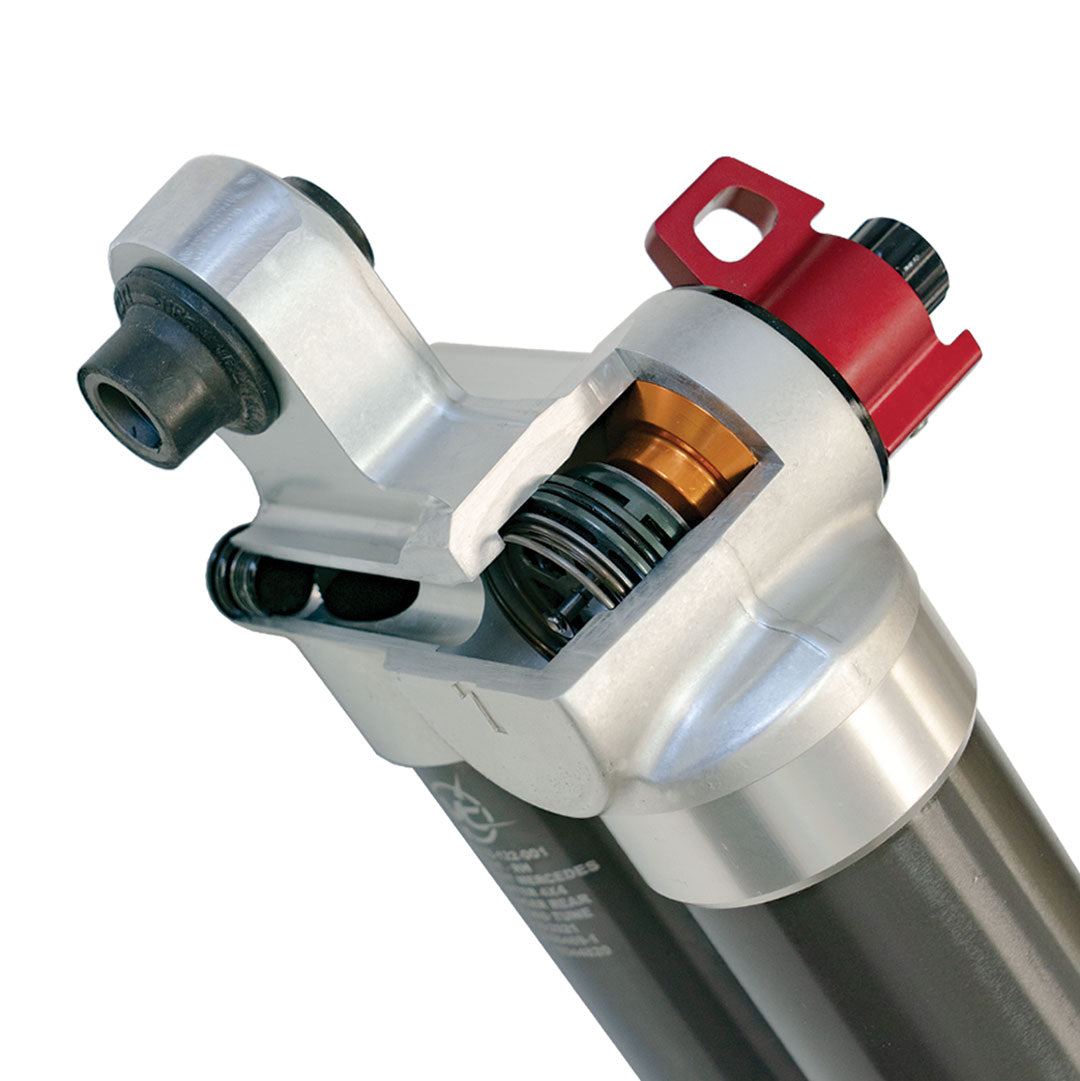

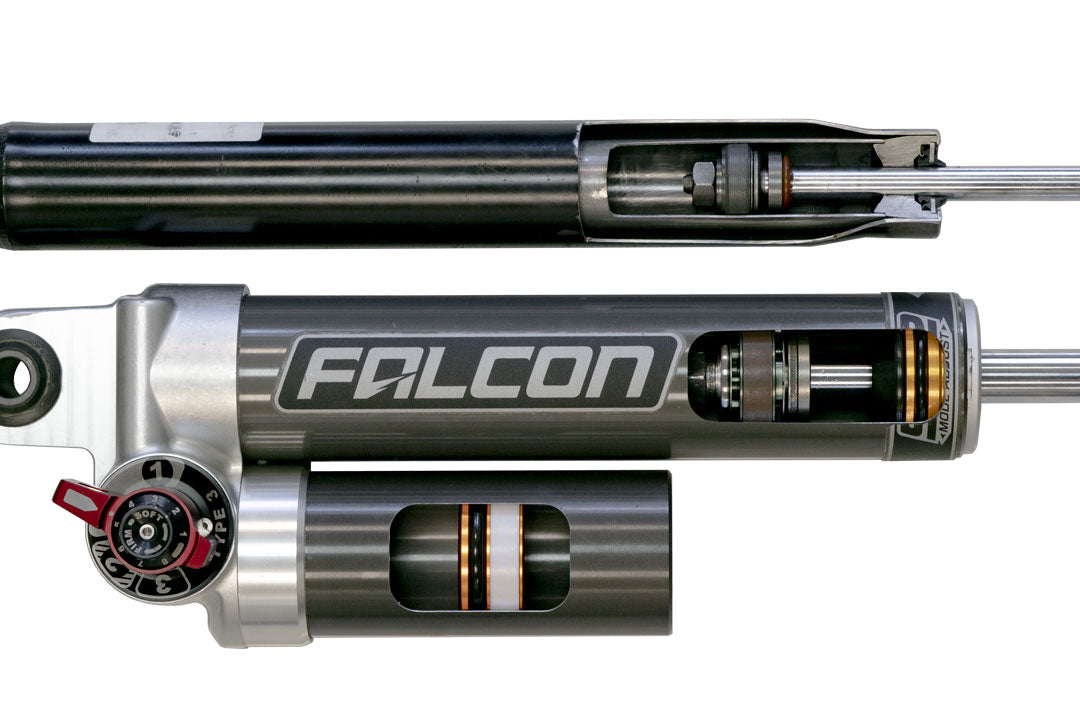

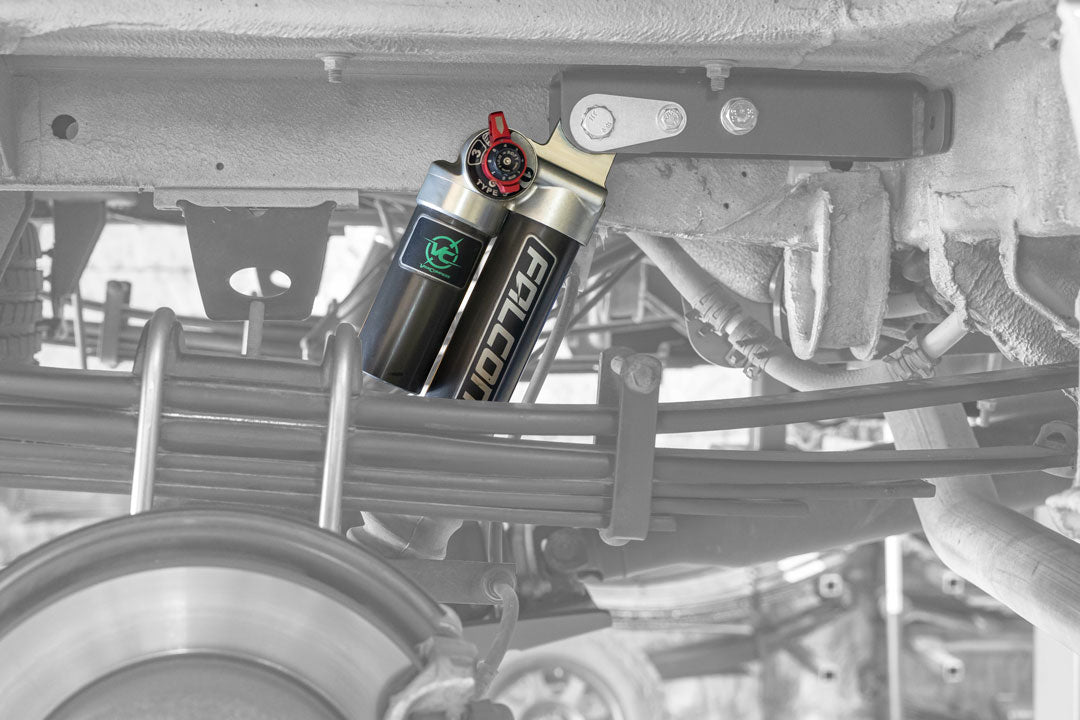

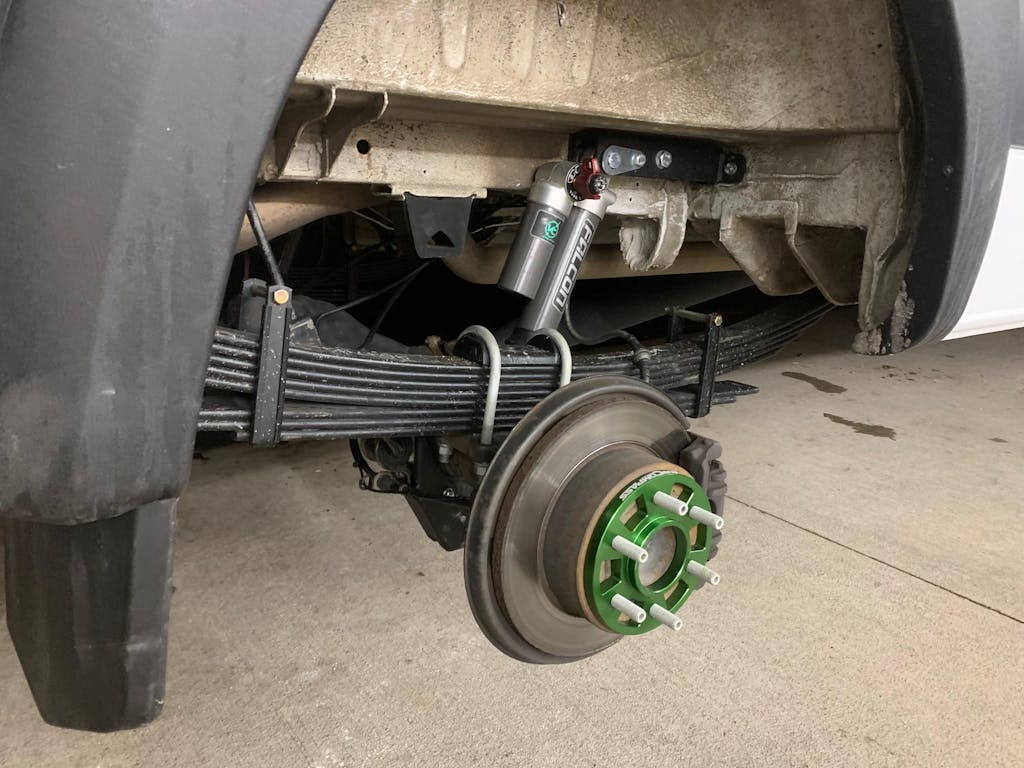

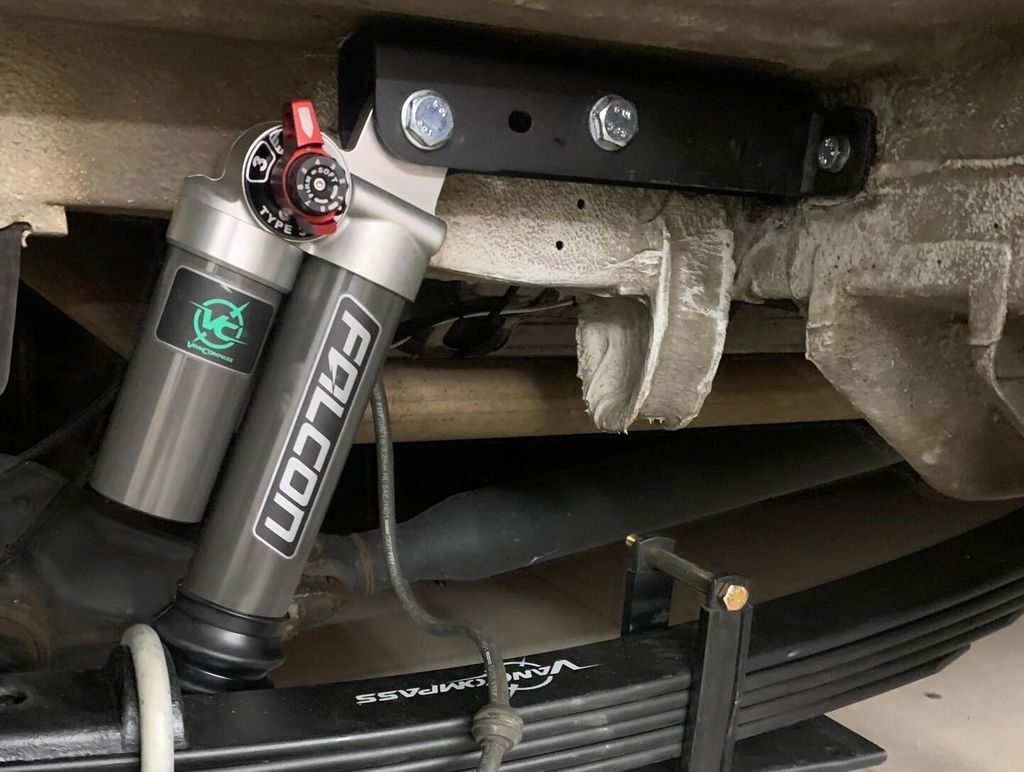

Falcon's 3.3 Fast Adjust Piggyback Reservoir Shocks represent the cornerstone of our Stage 2.3 system. Built specifically to our tune specifications, they represent the culmination of years of accumulated knowledge, applied directly to the adventure van market. These shocks have a MASSIVE range of compression adjustment at the simple flip of a knob. We've put the large red knob in an easy to reach location that allows for easy access and quick confirmation of the settings. The rear shocks also include the SP2 adjustment, which allows for further refinement specific to your preferences and vehicle's weight; with a simple turn of the shaft one of 2 tune profiles is engaged during installation. For more info on the functions of these shocks, you can read our 3.3 shock settings guide.

Videos

View full details

Collapsible content

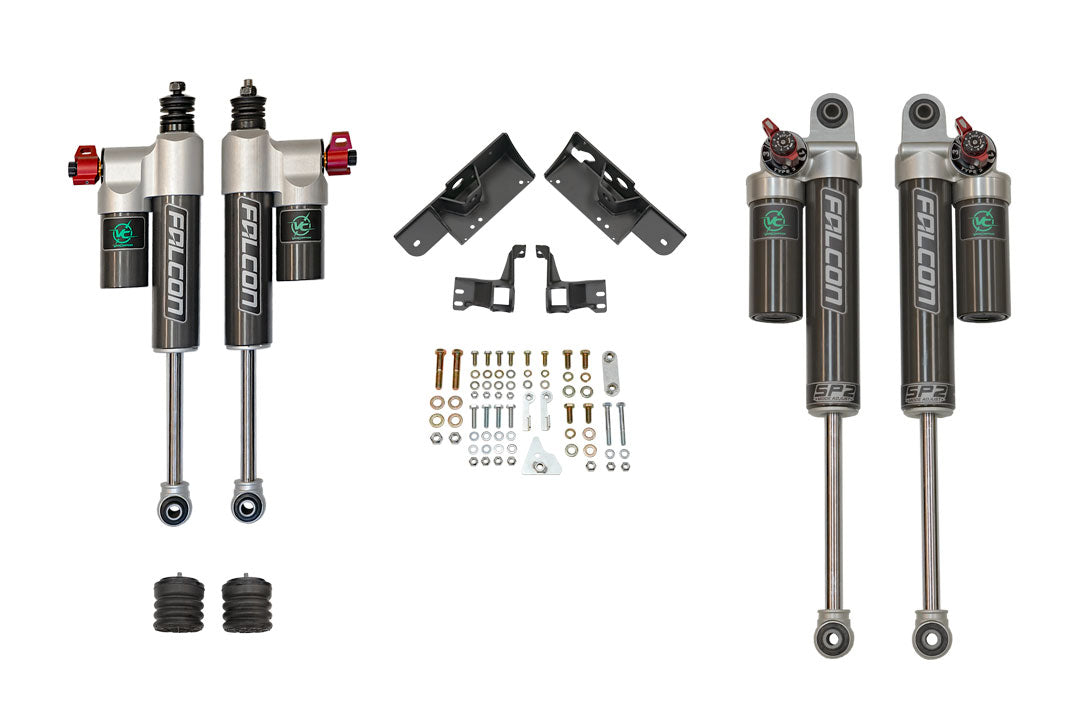

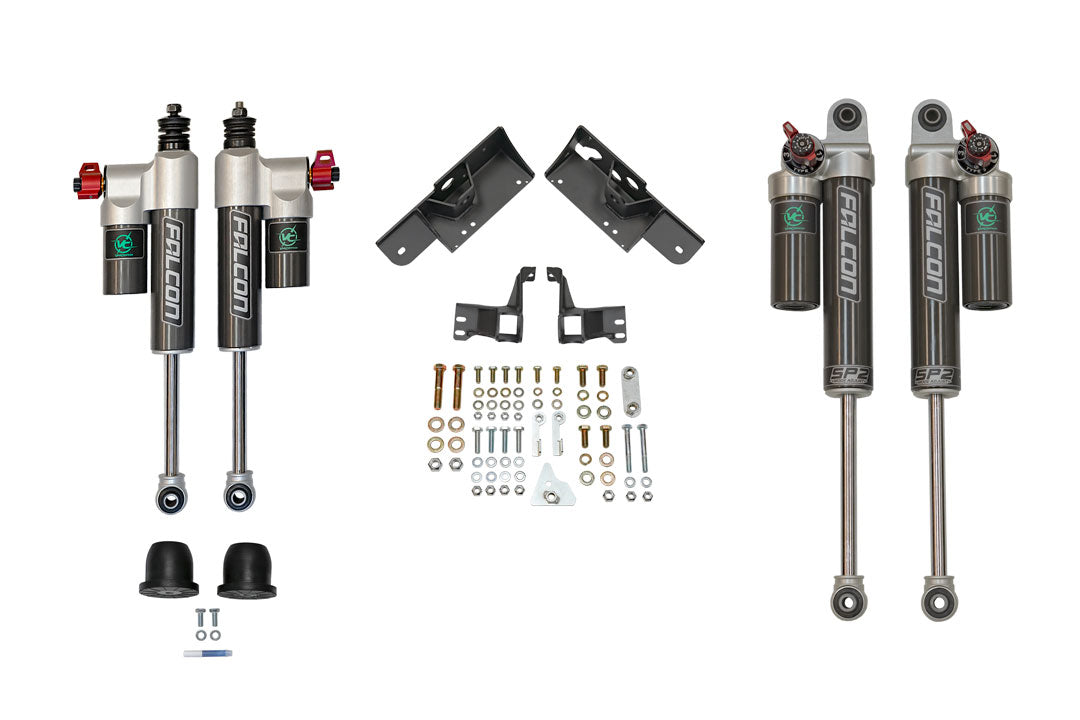

INCLUDED COMPONENTS

FITMENT GUIDE

MODEL: SPRINTER 2500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4 and AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Recommended Wheel Size: 17" x 8.5", +45mm offset

WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.

INSTRUCTIONS

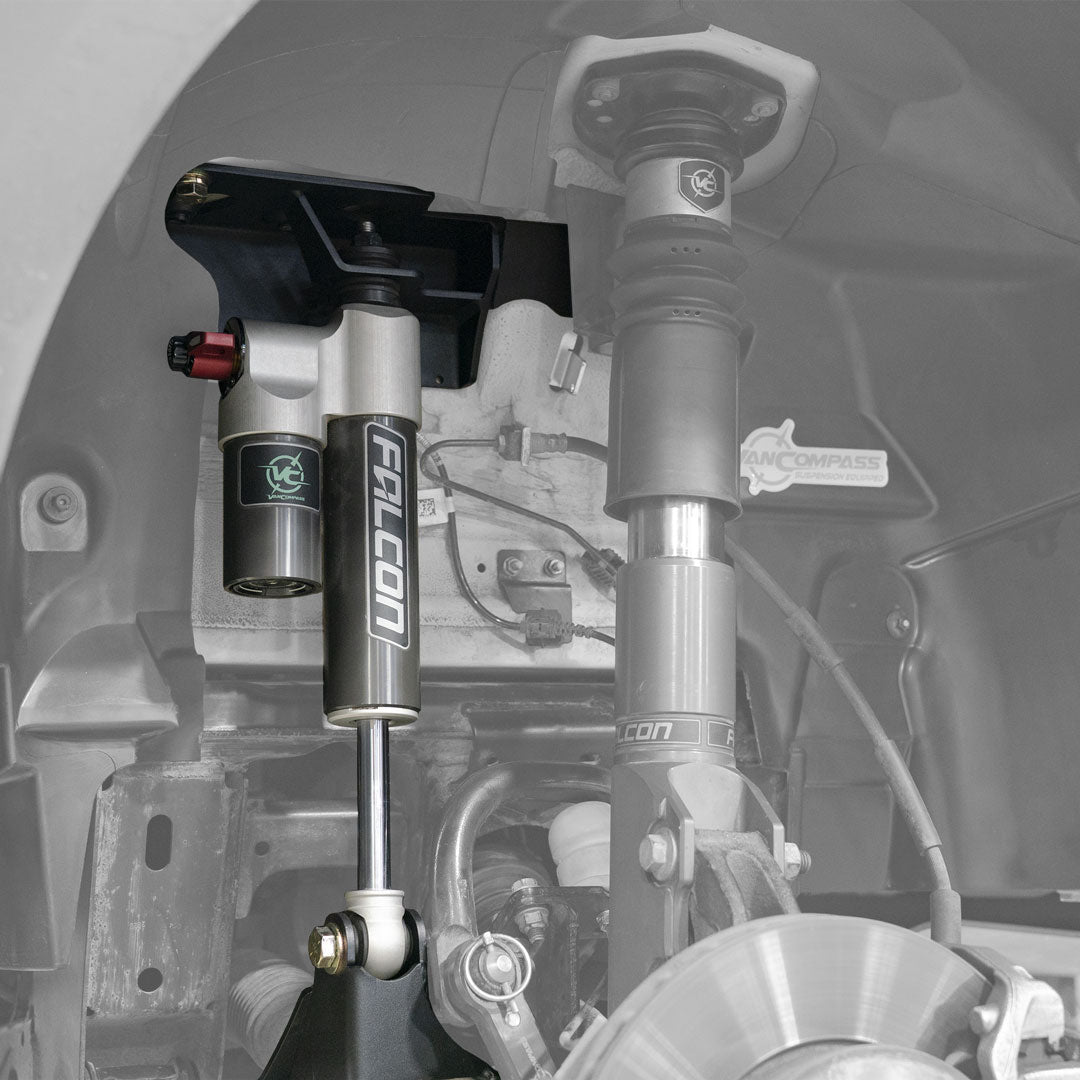

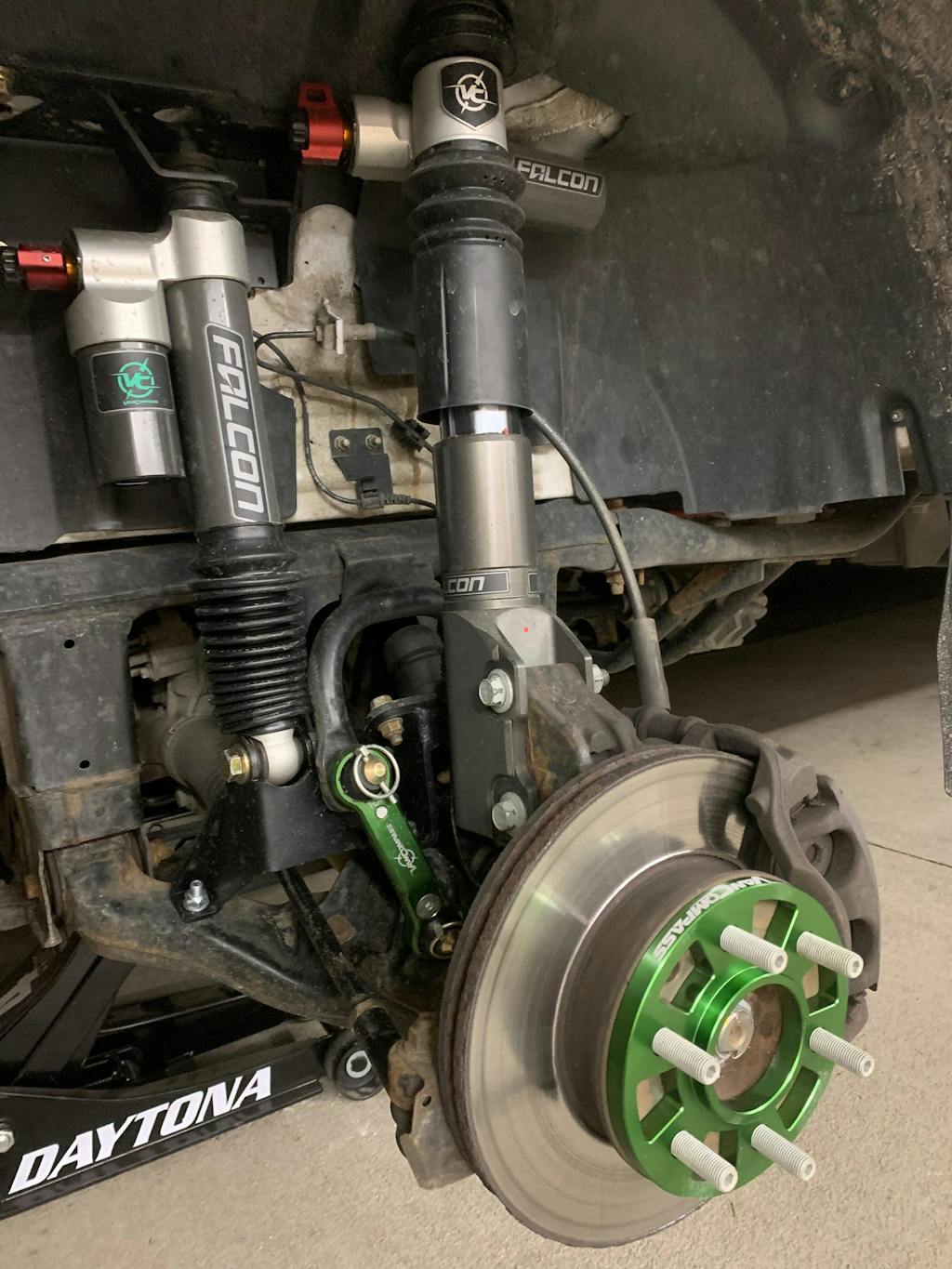

2015+ VS30 4x4 Falcon Front Shock Installation Instructions:

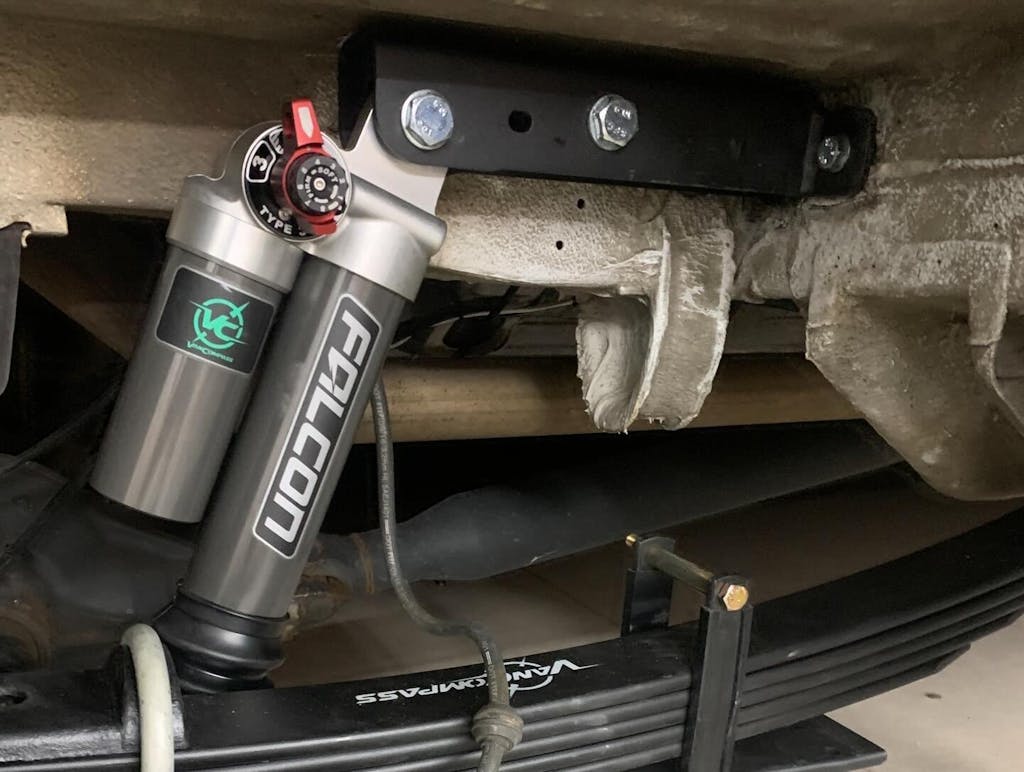

Falcon 3.3 SP2 Rear Shock installation instructions:

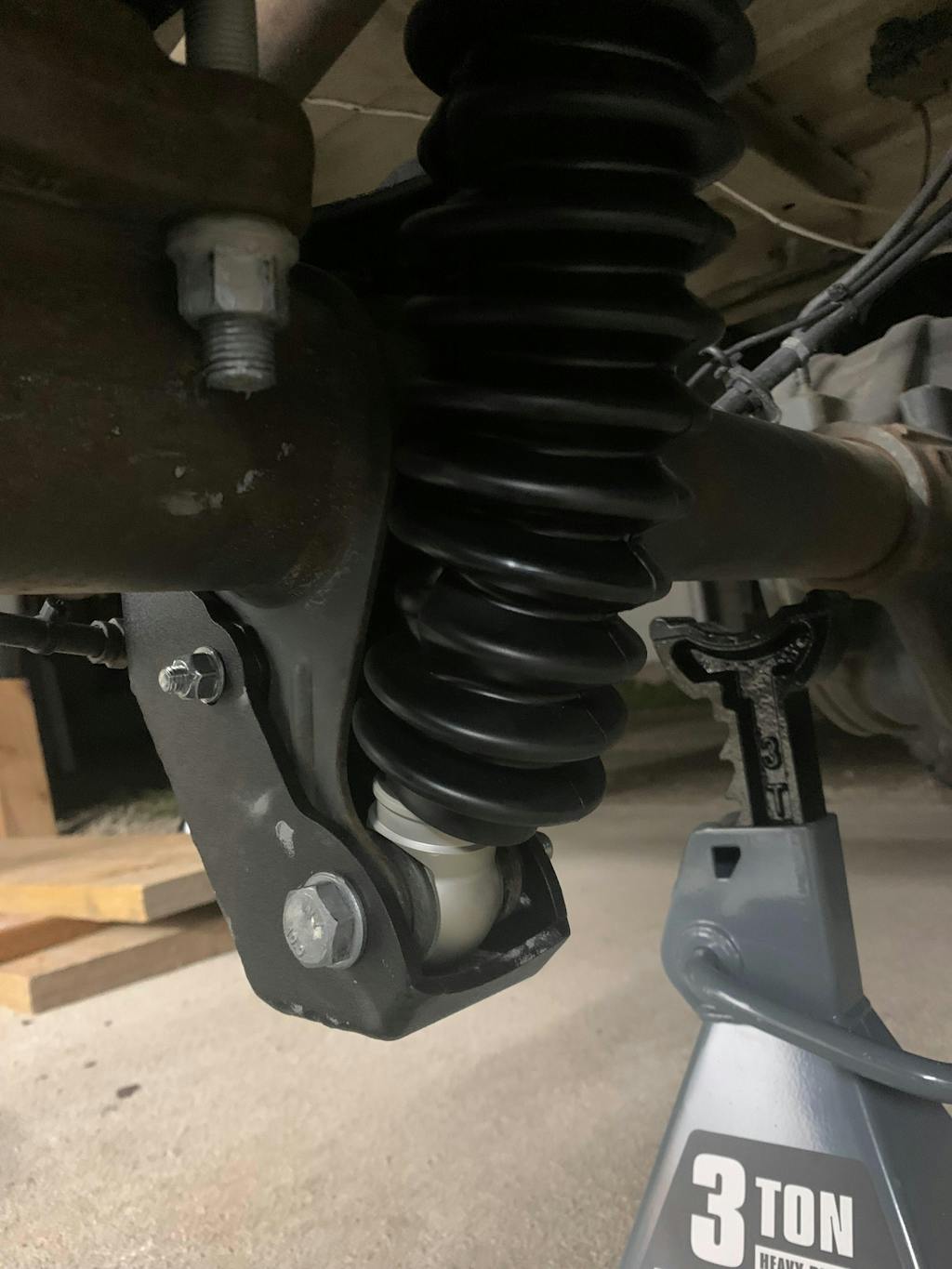

Sprinter AWD and 4x4 Front Bump Buddies installation instructions:

  • Falcon 3.3 Shock Settings Guide:
  • LABOR TIMES

    Recommended Shop Labor Time: 5 Hours
