STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023-PRESENT 2500 SINGLE REAR WHEEL)

STRIKER AWD 2" LIFT KIT (COMPLETE) - Sprinter AWD (2023-PRESENT 2500 SINGLE REAR WHEEL)

SKU:7219

Regular price $ 2,709.00 USD
Regular price Sale price $ 2,709.00 USD
Sale Sold out
Shipping calculated at checkout.

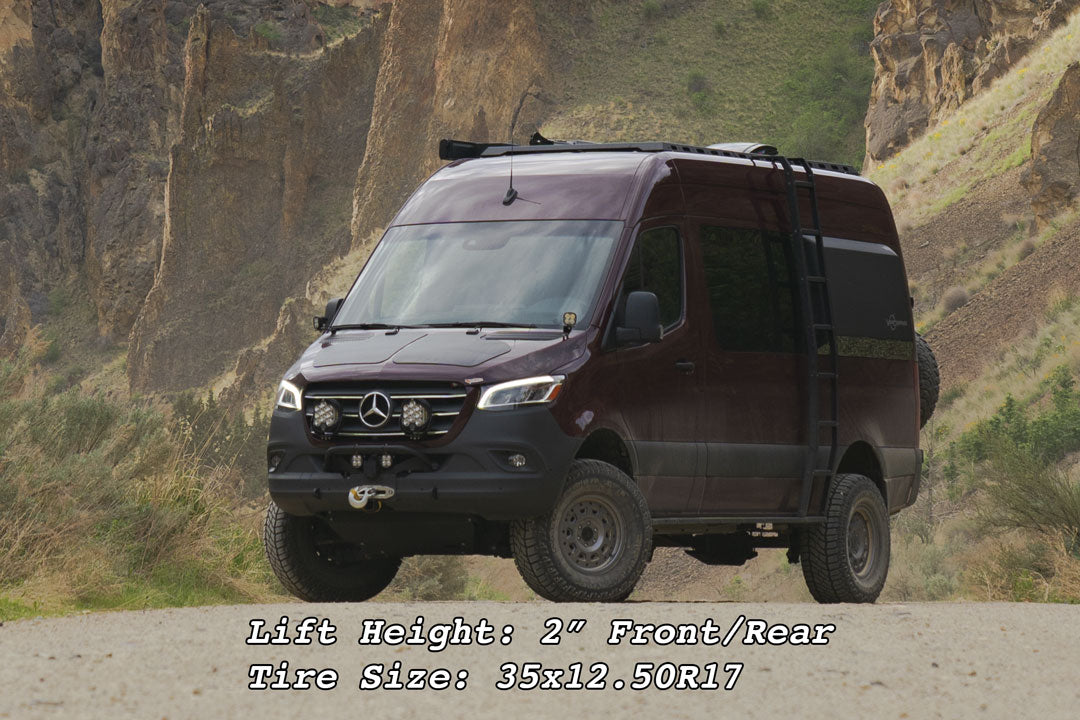

The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible. Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compression on axle articulation. With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

Videos

View full details

Collapsible content

INCLUDED COMPONENTS

  • Front 2" strut spacers
  • Front 2" subframe drop spacers
  • Engine and transmission mount 2" lift spacers
  • Front differential re-clocking cams
  • CNC Machined 2" steering shaft extension
  • Low pressure power steering hose extension
  • Front brake line relocation brackets
  • 6-leaf Mini Leaf Spring pack
  • Extended rear sway bar links
  • Rear lower shock relocation brackets
  • Rear bump stop drop brackets
  • Wind assist or headlight leveling sensor bracket
  • All necessary hardware and detailed instructions

FITMENT GUIDE

MODEL: SPRINTER 2500

YEAR: 2023-PRESENT

DRIVE TYPE: AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

Recommended Wheel Size: 17" x 8.5", +45mm offset

WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.

INSTRUCTIONS

  • 2023+ VS30 AWD Striker 2" Front Kit Installation Instructions:
  • 2019+ VS30 4x4 and AWD Striker 2" Rear Kit Installation Instructions:
  • LABOR TIMES

    Recommended Shop Labor Time: 12 Hours
