STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD (2013+ SINGLE OR DUAL REAR WHEEL) by VAN COMPASS
STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD (2013+ SINGLE OR DUAL REAR WHEEL) by VAN COMPASS
SKU:7112-L
Couldn't load pickup availability
Stage 1 System Benefits:
- Aggressive, 2" taller stance allows larger tires to smooth out terrain
- Increased approach, break over and departure angles
- VC tuned Falcon 2.1 Monotube Shocks
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
Intended Use:
- Entry level kit for lighter vans without sag problems
- Passenger vans that want a more aggressive stance
Improve the ride quality and stance of your Ford Transit RWD with the Stage 1 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020+ AWD Transit platform.
Our Topo 2" lift kit includes a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25" of lift, with a corresponding increase in compression travel. Rear lift at Stage 1 is accomplished by a 2" billet aluminum block and corresponding bump stop spacers to keep rear suspension geometry intact. Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.
Falcon 2.1 Monotube Shocks dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamic of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts.
The RWD specific Topo systems include Bilstein B6 front struts to increase damping and further improve handling.
![STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD by VAN COMPASS: Includes yellow shock absorber, blue springs, and metal components for improved ride quality and handling.](http://vancompass.com/cdn/shop/products/7112-MAIN.jpg?v=1733879599&width=1445)

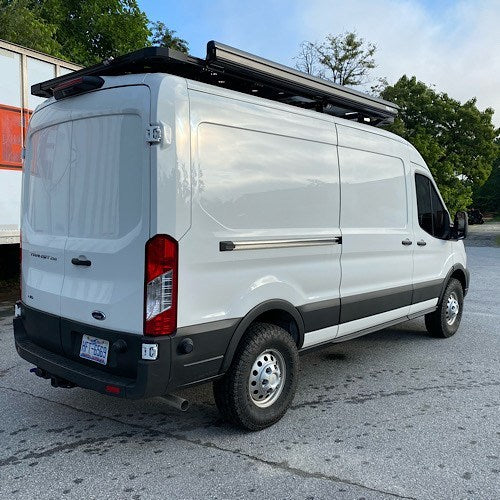

![White van with black roof rack parked on pavement, equipped with the Stage 1 Topo 2.0 System for improved ride quality and stability by Van Compass.](http://vancompass.com/cdn/shop/products/IMG_7249-3.jpg?v=1733879600&width=1445)

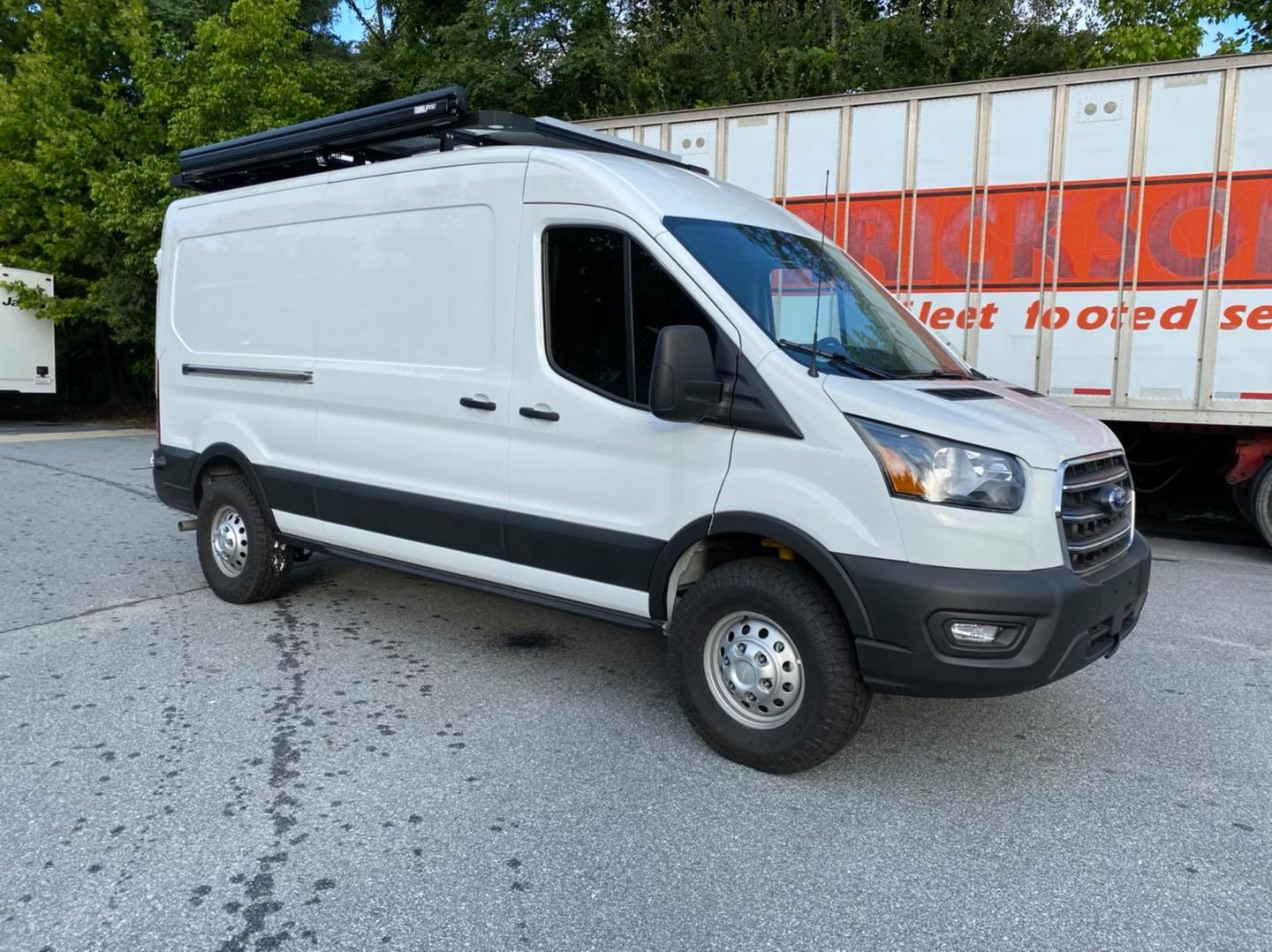

![Stage 1 Topo 2.0 System - Transit RWD by Van Compass shown on a white van, emphasizing improved suspension and ride quality.](http://vancompass.com/cdn/shop/products/116707066_3522908401061696_5413839302492373698_o.jpg?v=1733879600&width=1445)

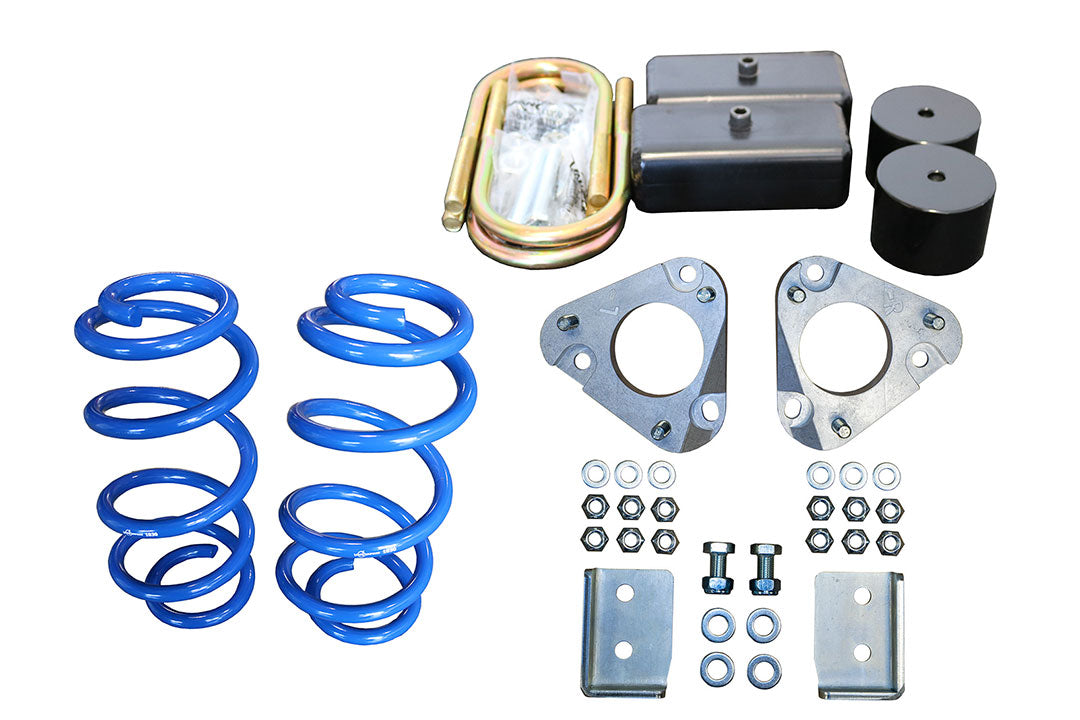

![Group of blue coil springs and metal parts for the STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD by VAN COMPASS, enhancing vehicle stance and ride quality.](http://vancompass.com/cdn/shop/products/7097-MAIN_dd57e81c-7209-402e-aff4-31792acd9654.jpg?v=1733879600&width=1445)

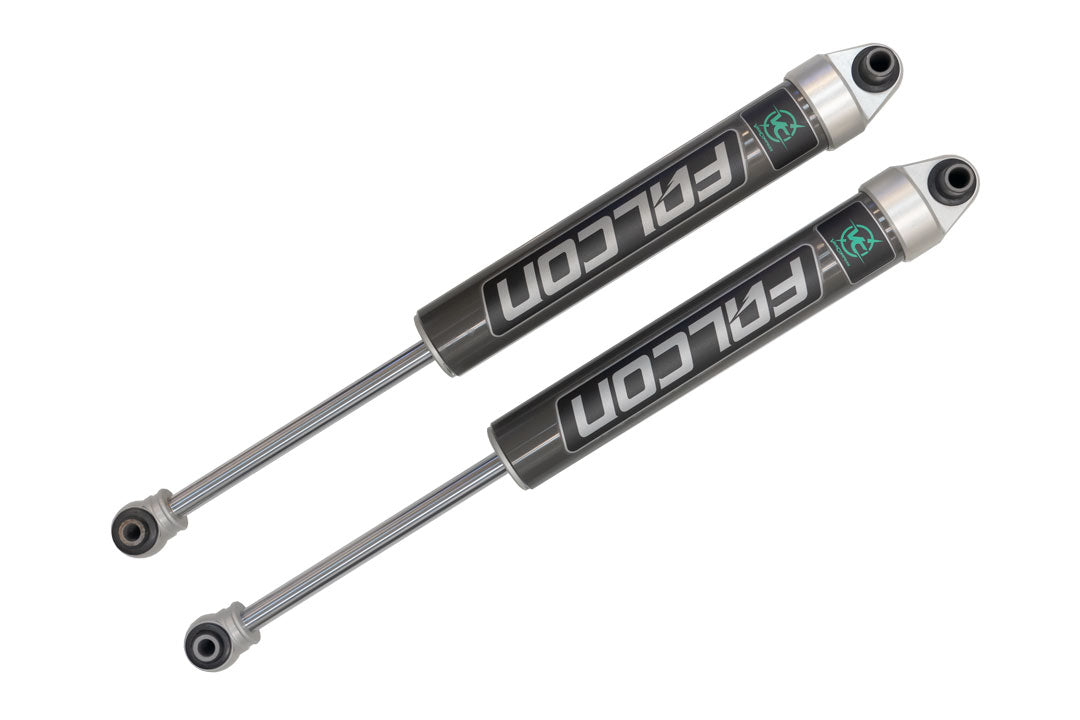

![Stage 1 Topo 2.0 System - Transit RWD by Van Compass: a pair of black and silver Falcon 2.1 Monotube Shocks for improved ride quality and stability.](http://vancompass.com/cdn/shop/products/3047-MAIN_9bb549dd-c842-411a-a0bc-5577a9448f5c.jpg?v=1733879600&width=1445)
![STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD by VAN COMPASS: Pair of yellow shock absorbers for improved handling and ride quality in Ford Transit vans.](http://vancompass.com/cdn/shop/products/Transit-B6.jpg?v=1733879600&width=1445)

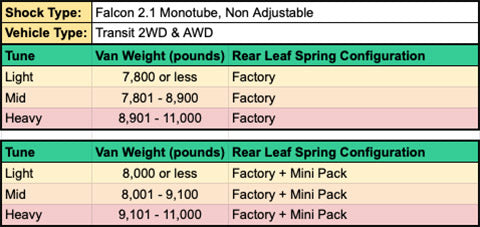

![STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD (2013+ SINGLE OR DUAL REAR WHEEL) by VAN COMPASS, featuring a detailed chart with weights and numbers.](http://vancompass.com/cdn/shop/files/Transit_2.1_Valving_Guide_9f5675d5-0445-40a1-8959-8fb1237b061f.jpg?v=1733879600&width=1445)
Collapsible content
INCLUDED COMPONENTS
- Topo 2.0 Front and Rear Lift Kit
- Bilstein B6 Front Strut Kit (1 pair)
- Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
- High Clearance Rear Shock Brackets
FITMENT GUIDE
MODEL: TRANSIT
YEAR: 2015-PRESENT
DRIVE TYPE: RWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
LABOR TIMES
Recommended Shop Labor Time: 10 Hours
