STAGE 2 SYSTEM WITH ADJUSTABLE RALLY STRUTS - SPRINTER 2WD (2007+ 2500 ONLY) by VAN COMPASS
STAGE 2 SYSTEM WITH ADJUSTABLE RALLY STRUTS - SPRINTER 2WD (2007+ 2500 ONLY) by VAN COMPASS
SKU:7189-LM-RS
Couldn't load pickup availability
Stage 2 System Benefits:
- VC Inverted 3.3 Adjustable Rally Struts
- VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
- 100% bolt on
Intended Use:
- Lightweight adventure vans below GVWR
- Passenger vans
Customers looking for maximum handling flexibility from their vans, need look no further than our 2WD Stage 2 system. Adding our innovative, groundbreaking inverted Rally Strut turns this kit into a true 4-corner suspension upgrade! Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, we're able to minimize side to side sway and balance out jarring impacts using our deep knowledge of suspension tuning.

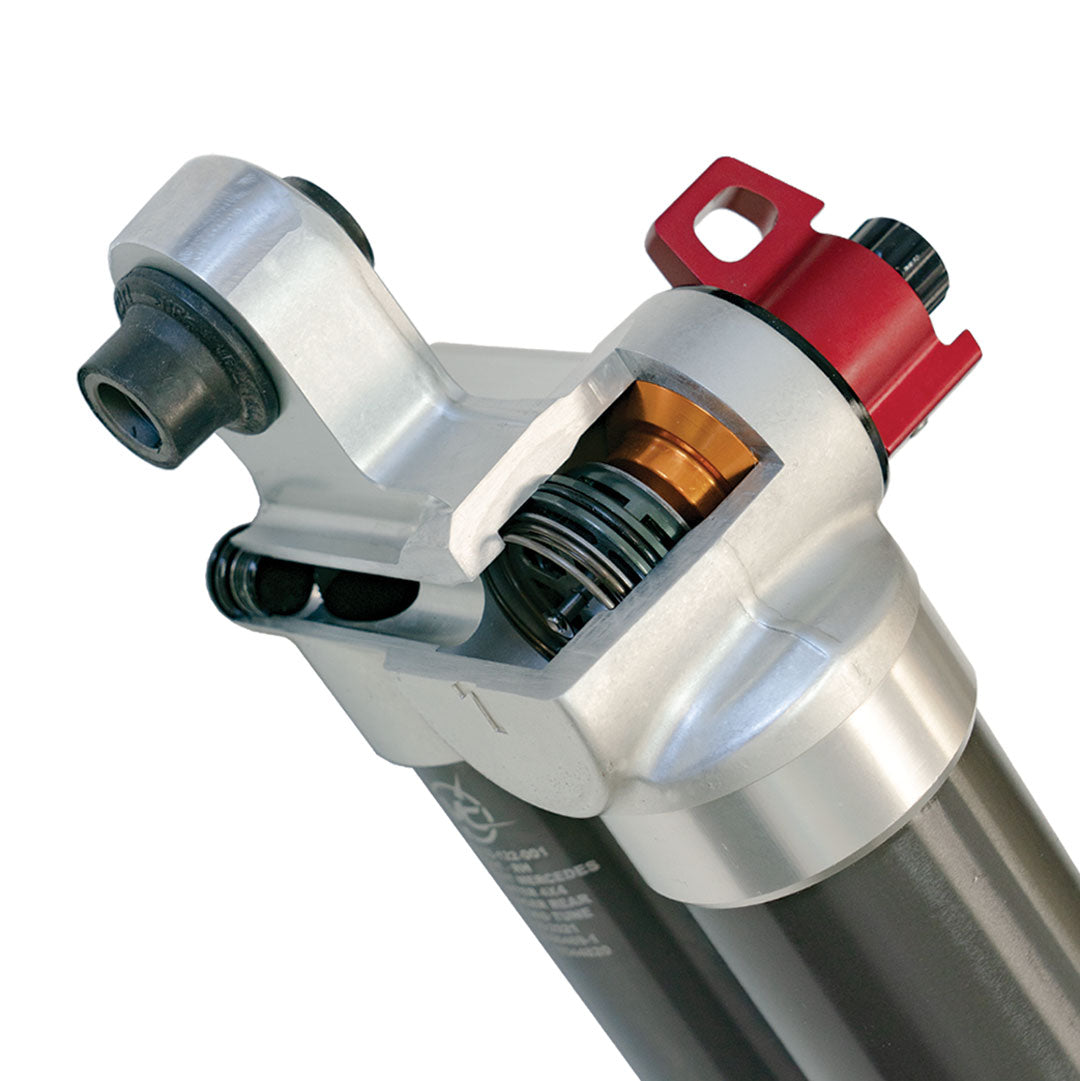

The cornerstone of our Stage 2 kit is the fully adjustable Falcon 3.3 Fast Adjust Inverted Rally Struts and rear shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use. The race inspired design of the Inverted Rally Strut ensures long service life and a new performance benchmark for 2wd vans!
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.
This is a great kit for light weight adventure vans, work vans and any van that sees a wide range of payload and terrain. Vans that are near the gross vehicle weight rating (GVWR) may want to add additional rear suspension parts to reduce rear suspension sag and improve stability.





Collapsible content

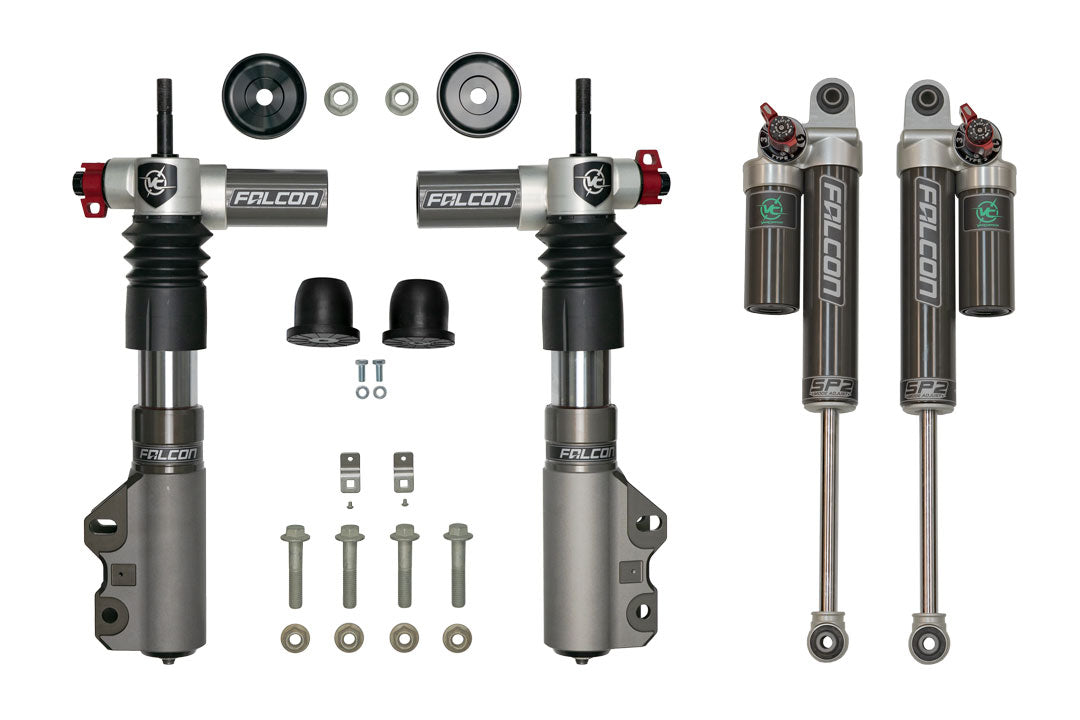

INCLUDED COMPONENTS
- 3.3 Adjustable Inverted Rally Struts
- Front Falcon Bump Buddies Jounce Bumpers (pair)
- Falcon 3.3 SP2 Fast Adjust rear shocks **custom tuned to the weight of your van for 2500 applications**
- Dust boots for rear shocks
FITMENT GUIDE
MODEL: SPRINTER 2500
YEAR: 2007-PRESENT
DRIVE TYPE: 2WD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
LABOR TIMES
Recommended Shop Labor Time: 4.5 Hours
