STRIKER 4X4 2" LIFT KIT (4.3 to 6.3 UPGRADE) - SPRINTER 4X4 (2015+ 2500 SINGLE REAR WHEEL)

7035-UP
$ 1,800.00

Customer Reviews

Based on 2 reviews Write a review
VAN YEAR
-
+
$ 1,800.00

This grouping of parts is specifically for customers with an existing 4.3 kit that want to upgrade to a 6.3 kit. We pair the front and rear lift components, with 2 small leaves to upgrade their existing rear mini pack.

The Striker 4x4 Sprinter 2.0” suspension lift kit provides clearance for larger tires and offers additional ground clearance under the van. Additional traction from larger tires and ground clearance helps to avoid obstacles on the trail to your remote campsite. The Striker kit retains the stock vehicle suspension geometry, payload rating and ride quality. All of the suspension lift kit components are constructed of high quality materials here in the USA, are powder coated for durability and corrosion resistance.

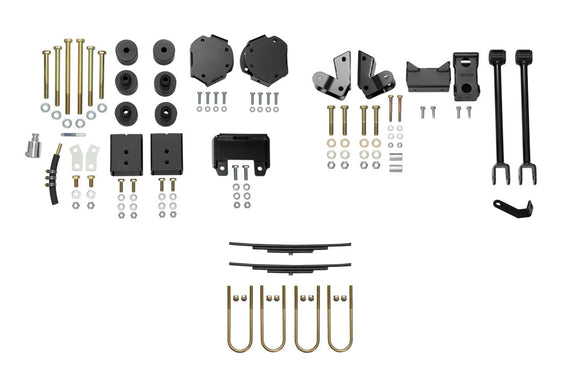

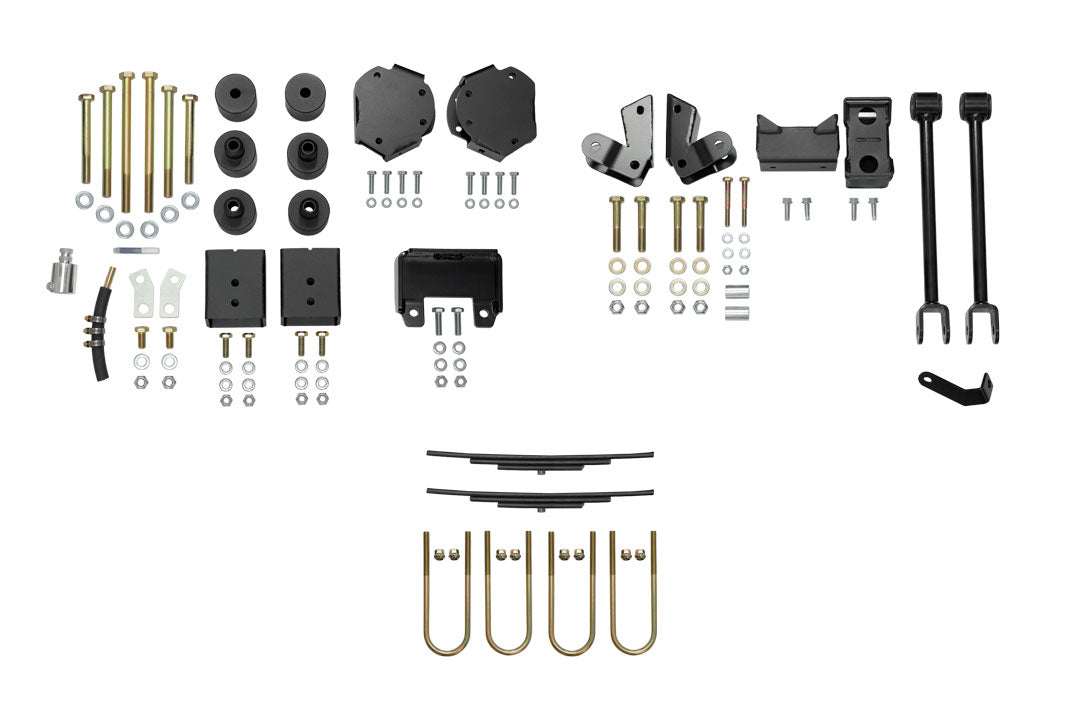

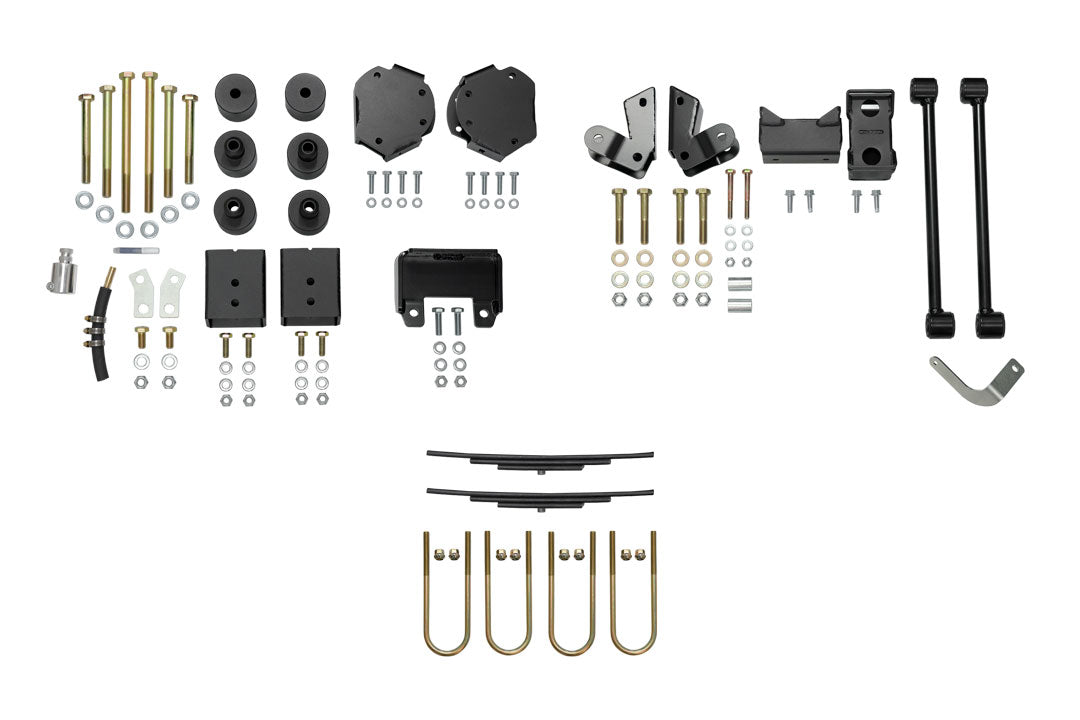

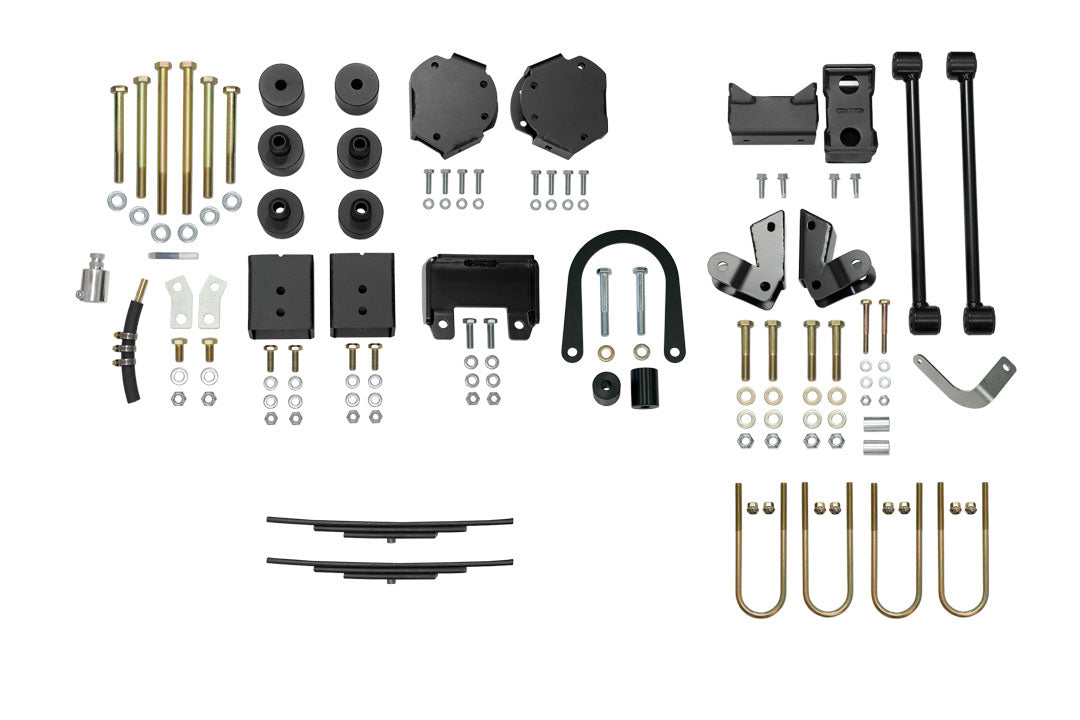

  • Front 2.0” strut spacer - 1/4” hot rolled steel
  • Front 2.0” subframe drop spacers - 4140 heat treated chromoly
  • Motor mount 2.0” lift spacer - 3/16" hot rolled steel
  • Transmission 2.0" lift spacer - 3/16" hot rolled steel
  • Steering shaft extension - 4140 heat treated chromoly
  • Low pressure power steering hose extension
  • Front brake line relocation brackets
  • 2-short leaves to convert 3 leaf to 5 leaf pack
  • Rear sway bar links - 11/16" x .120" wall DOM and 3/16" hot rolled steel
  • Rear lower shock mounts - 1/8" hot rolled steel
  • Rear bump stop drop brackets - 1/8" hot rolled steel
  • Rear wind assist extension bracket - 1/8" hot rolled steel
  • All necessary hardware

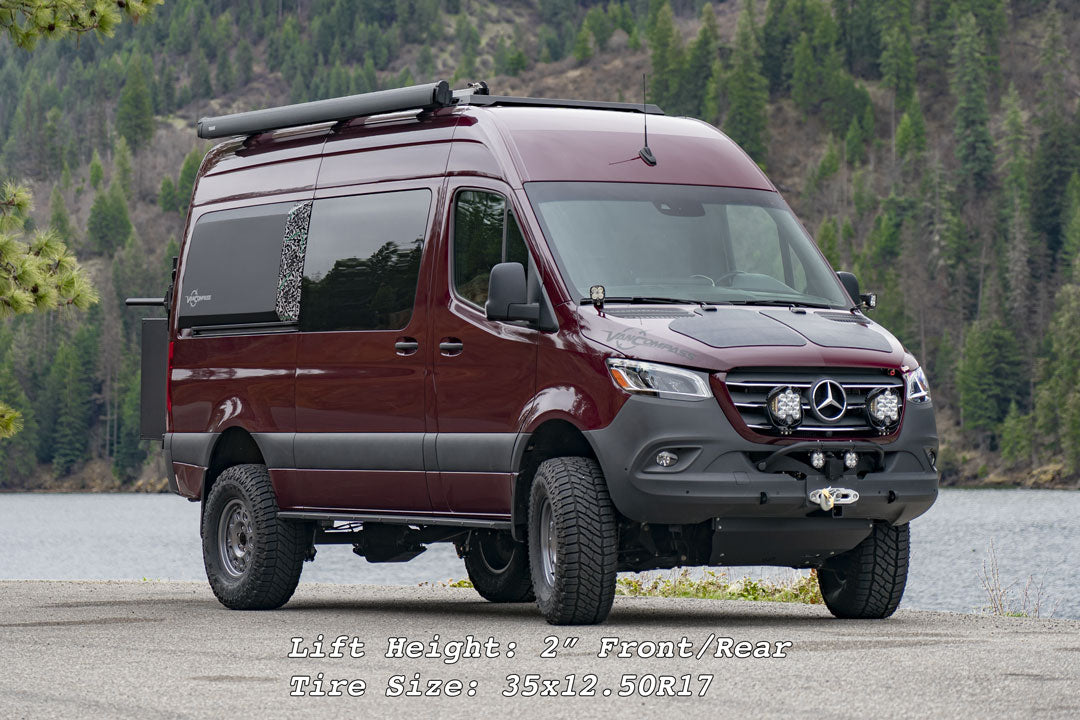

With this lift kit, 315/75R16 (35x12.50 equivalent) tires can be fitted with the following conditions met:

  • 2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions:
  • 2019+ VS30 4x4 Striker 2" Front Kit Installation Instructions:
  • 2015-2018 NCV3 4x4 Striker 2" Rear Kit Installation Instructions:
  • 2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions:
  • 2019+ Sprinter Tire fitment guide:

    We've prepared this guides to help with tire choices for your van. Generally, the largest compatible diameter and widths are listed, other sizes may fit. Actual size varies by manufacturer, wheel choice, and inflation pressure. Tire size selection will vary by manufacturer and tread pattern, and tires with more aggressive tread or aggressive sidewalls may have more fitment issues. Specific trimming instructions are noted in most of our lift kit's instructions. All 2019+ vans will require our Big Tire Mud Flap Relocation kit for tires larger than stock, as the wheel wells pinch inward and restrict fitment. Van Compass is not responsible for fitment issues.
    This calculator is one of the best we've found, and very helpful for comparisons between different tire sizes. Actual size varies by manufacturer, wheel choice, and inflation pressure. Always consult your tire shop before purchasing wheels or tires.

    2007-2018 Sprinter Tire fitment guide:

    We've prepared this guide to help with tire choices for your van. Generally, the largest compatible diameter and widths are listed, other sizes may fit. Actual size varies by manufacturer, wheel choice, and inflation pressure. Tire size selection will vary by manufacturer and tread pattern, and tires with more aggressive tread or aggressive sidewalls may have more fitment issues. Specific trimming instructions are noted in most of our lift kit's instructions. Van Compass is not responsible for fitment issues.
    This calculator is one of the best we've found, and very helpful for comparisons between different tire sizes. Actual size varies by manufacturer, wheel choice, and inflation pressure. Always consult your tire shop before purchasing wheels or tires.

    Customer Reviews

    Based on 2 reviews Write a review

    How do I decide which system to buy? I'm a newbie.

    • We've prepared some comparison guides for our most popular systems, they can be found under the stage guides tab on the product page.

    Which tune should I select?

    • We've prepared some valving charts based on van weights, they are at the bottom of each shock, and stage system page. You can select the tune from the options when adding your system to the cart.

    I don't know what my van weighs. How do I find out?

    • Easy, most county landfills have a commercial scale. You can use the CAT SCALE LOCATOR to find the closest CAT certified scale. These are great, as they give us a front and rear axle weight separately.

    Do I need adjustable shocks?

    • Our adjustable shocks are very popular, and offer a huge range of adaptability to your van. They are well suited to vans that see a wide range of payload and terrain. Do you like to exact every last bit of performance and comfort out of every situation? Or, do you prefer to live in the moment and keep your vehicle simple?

    Can I upgrade my kit in stages?

    • Typically, yes. Our kits are designed to be modular, so that customers can add components in stages without having to buy many components twice. If you buy a stock stage, then lift the van later, your shocks will still work.

    Do I have to lift my van to use your upgrades?

    • NO! All of our shock upgrades work as stock replacements. They are designed to work with both stock height and Van Compass lifted vans.

    Is a lifted van safe to drive?

    • YES! Our lifted 2wd vans are roughly comparable to a stock 4wd van. We design our lifts to preserve factory suspension geometry and travel, as well as work with our upgraded shocks. Lifts will also allow fitment of larger tires, which help smooth out terrain and road irregularities. The combined effect is a van that is actually much better driving than their stock, delivery van roots suggest.

    What size tire fits my _____?

    • We've prepared detailed fitment charts for each application, you'll find them in a tab on the product pages. We also recommend you consult your installer, and local tire shop. They are the experts when it comes to proven formulas with builds, and good tire choices for your area and use cases.

    Does installation void my warranty?

    • Ultimately, the decisions for warranty lie with the Dealer and Manufacturer, so you will want to contact them for an answer. Van Compass parts are designed with OEM performance in mind, and as thoroughly as possible. Many of our parts are stock replacements.

    Do Van Compass products have a warranty?

    Do you do installations?

    • We no longer do installations, we are focused 100% on designing, manufacturing and shipping the best possible products we can make.

    How much does installation cost?

    How long do your products take to install?

    • Installation instructions are found under the 'Instructions' tab on the product page. We list recommended labor hours for both home, and professional environments.

    Can I install your products myself?

    • YES! Many of our customers are do-it-yourselfers, so our products are designed with the installer in mind. They have been thoroughly engineered to be durable, fit great, and easy for a human to install. We've prepared detailed instructions and fitment info to help you, so make sure you read them thoroughly. We've done our best to outline the tools, safety equipment, and various other tricks you'll need to be able to confidently install our products.

    Will I need an alignment after installation?

    • We always recommend a quality, digital alignment be performed after any suspension modification where the struts are removed and reinstalled. Although many vans have limited adjustment, the TOE setting is critical to front end alignments, good tire wear, and safe drivability and should always be properly checked after installation.
