HIDDEN WINCH MOUNT - 2013-2022 RAM PROMASTER by VAN COMPASS

"PART NUMBER: "4061
  • $ 1,235.00
    Unit price per


Adding a winch to the front of any vehicle will increase its capability. However, simply bolting a winch capable of pulling 8k+ lbs to the front of a uni-body van is not always a great idea, unless the mounting system is properly secured to the chassis and engineered for proper load dispersion throughout the vehicle. At Van Compass, we engineered our Promaster Winch Mount System to strengthen and load the chassis correctly so that our customers can have the peace of mind knowing that when they need to use their winch, they can do so with confidence. Confidence to explore is one thing; confidence to explore without destroying your vehicle is why Van Compass products are the best in the industry.

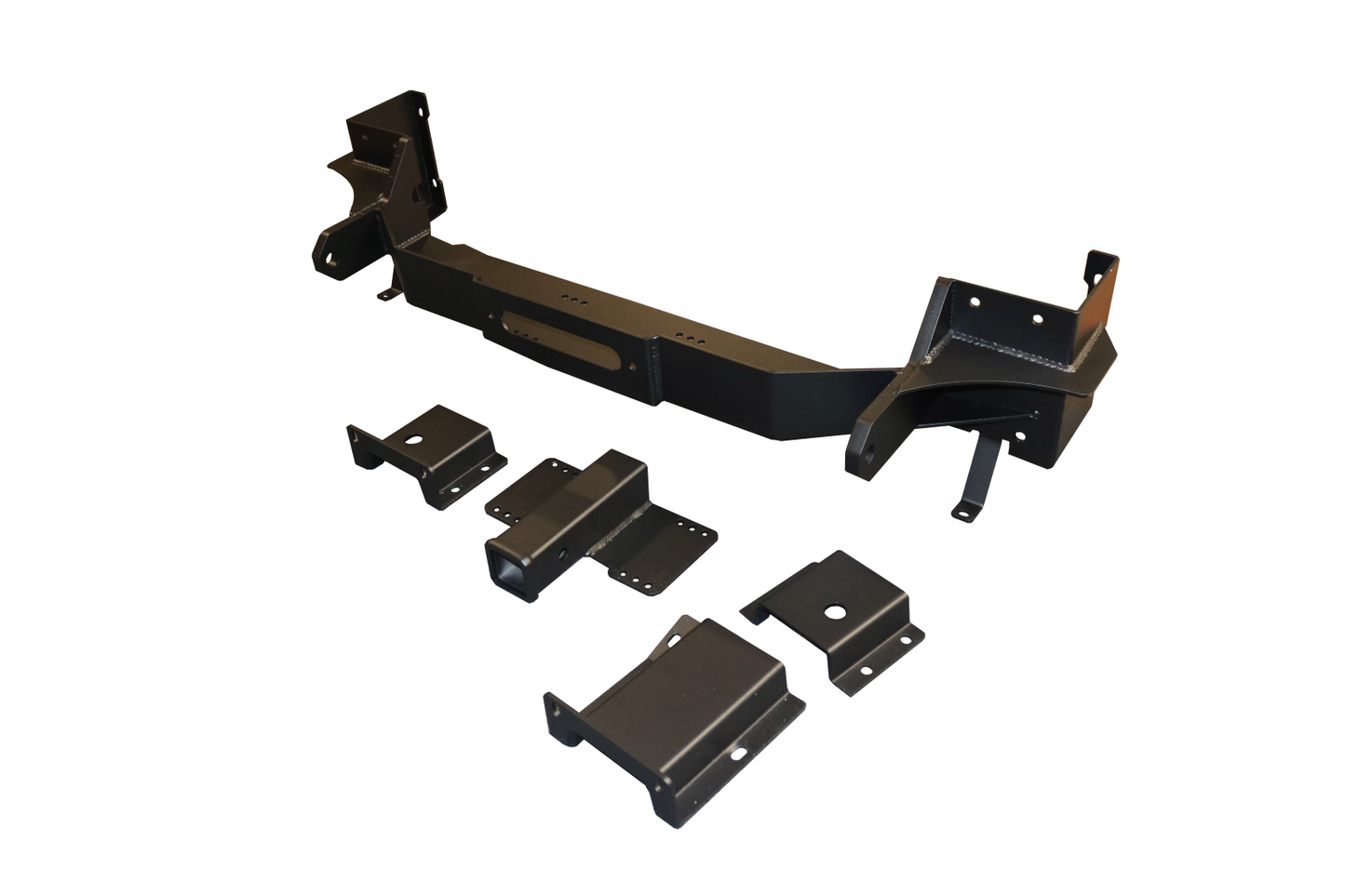

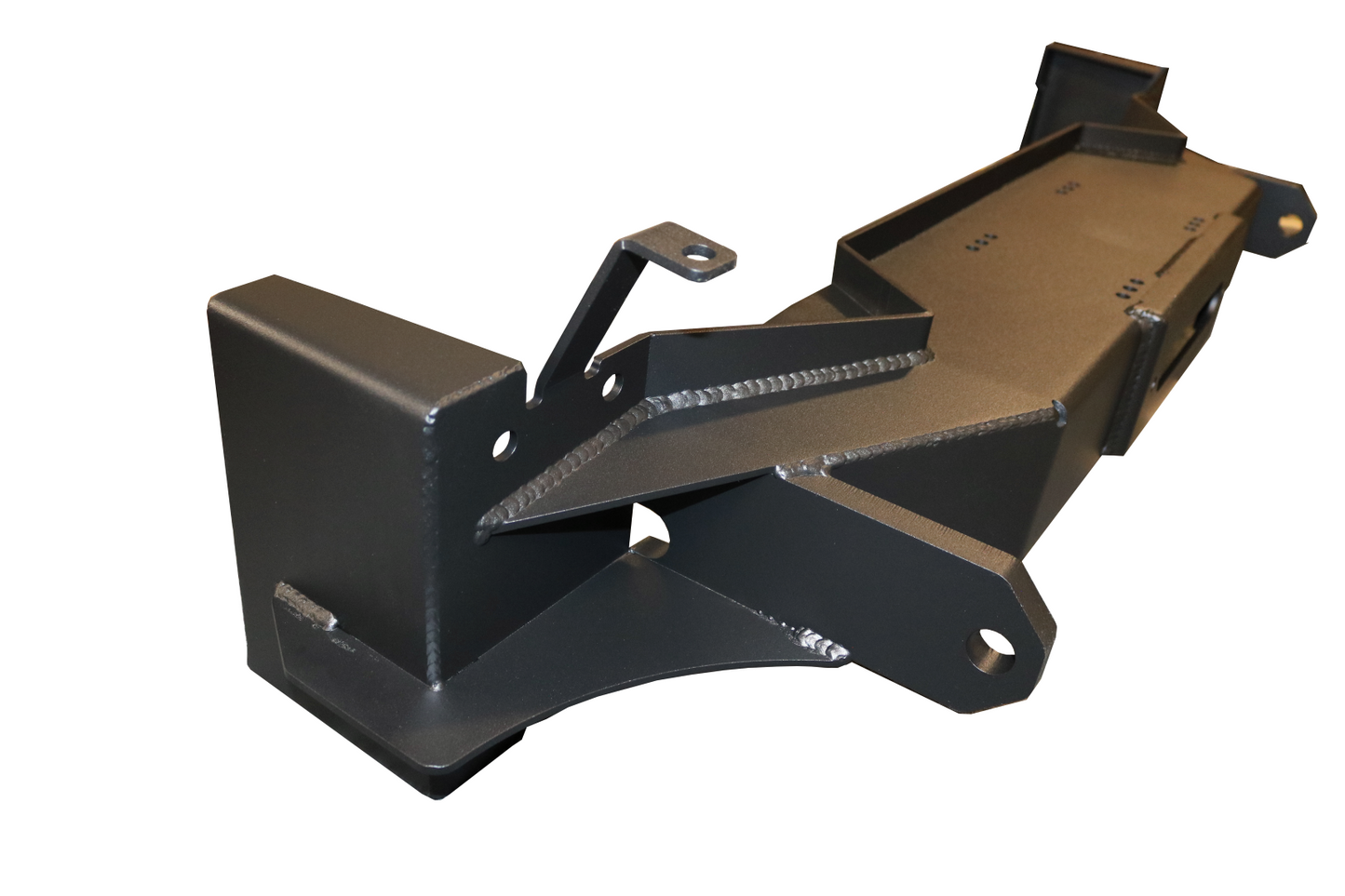

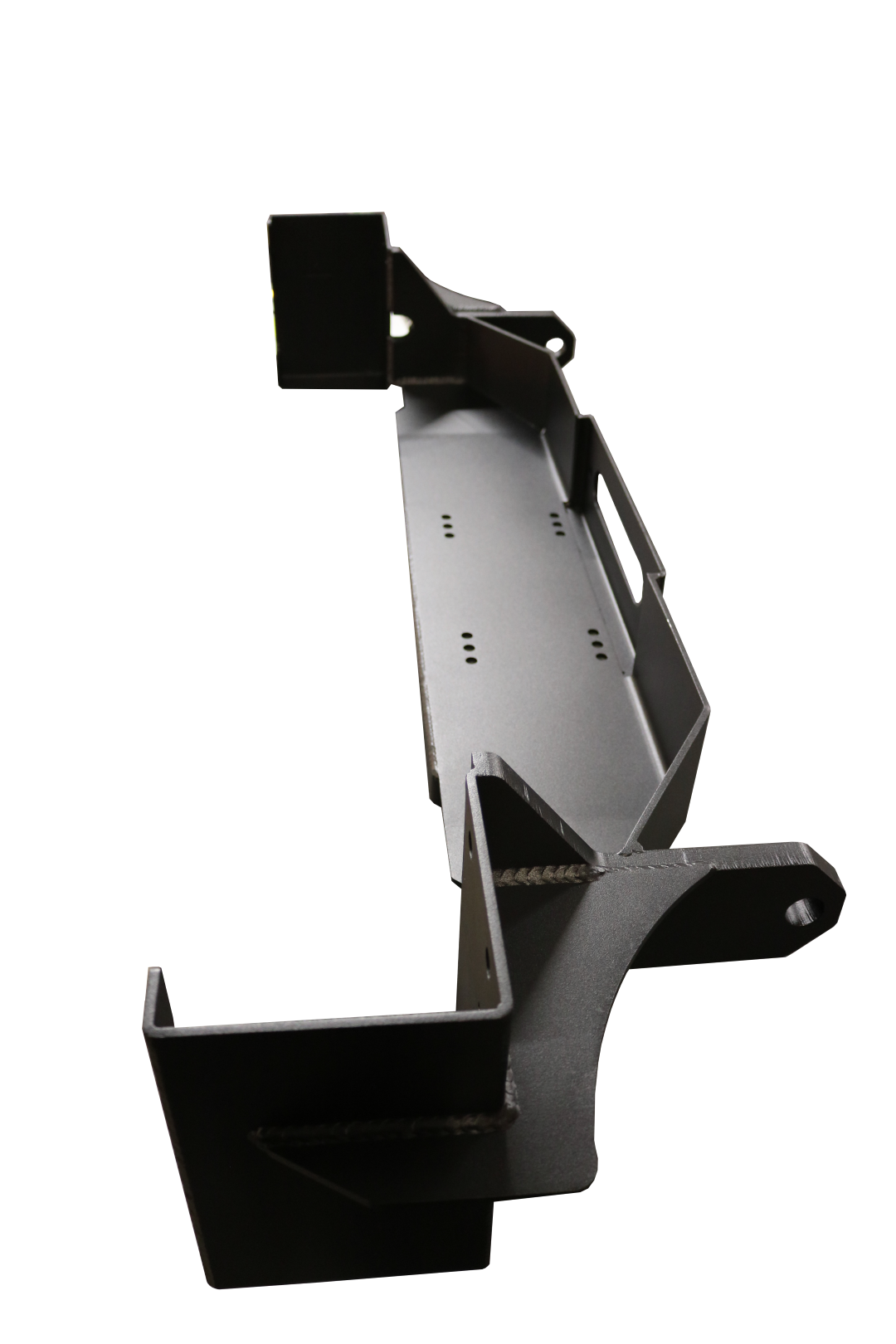

This winch mount system is constructed from a combination of 3/16" high strength steel and has integrated 3/4" D-ring shackle anchor points constructed from massive 3/4" thick steel plates. All fixtured and expertly welded in house at Van Compass with the upmost attention to detail and weld quality. Engineered to bolt onto the chassis in 15 bolt locations and extending past the crumple zone of the van with re-enforcement brackets means this mounting system will not deflect or twist the chassis when properly used.

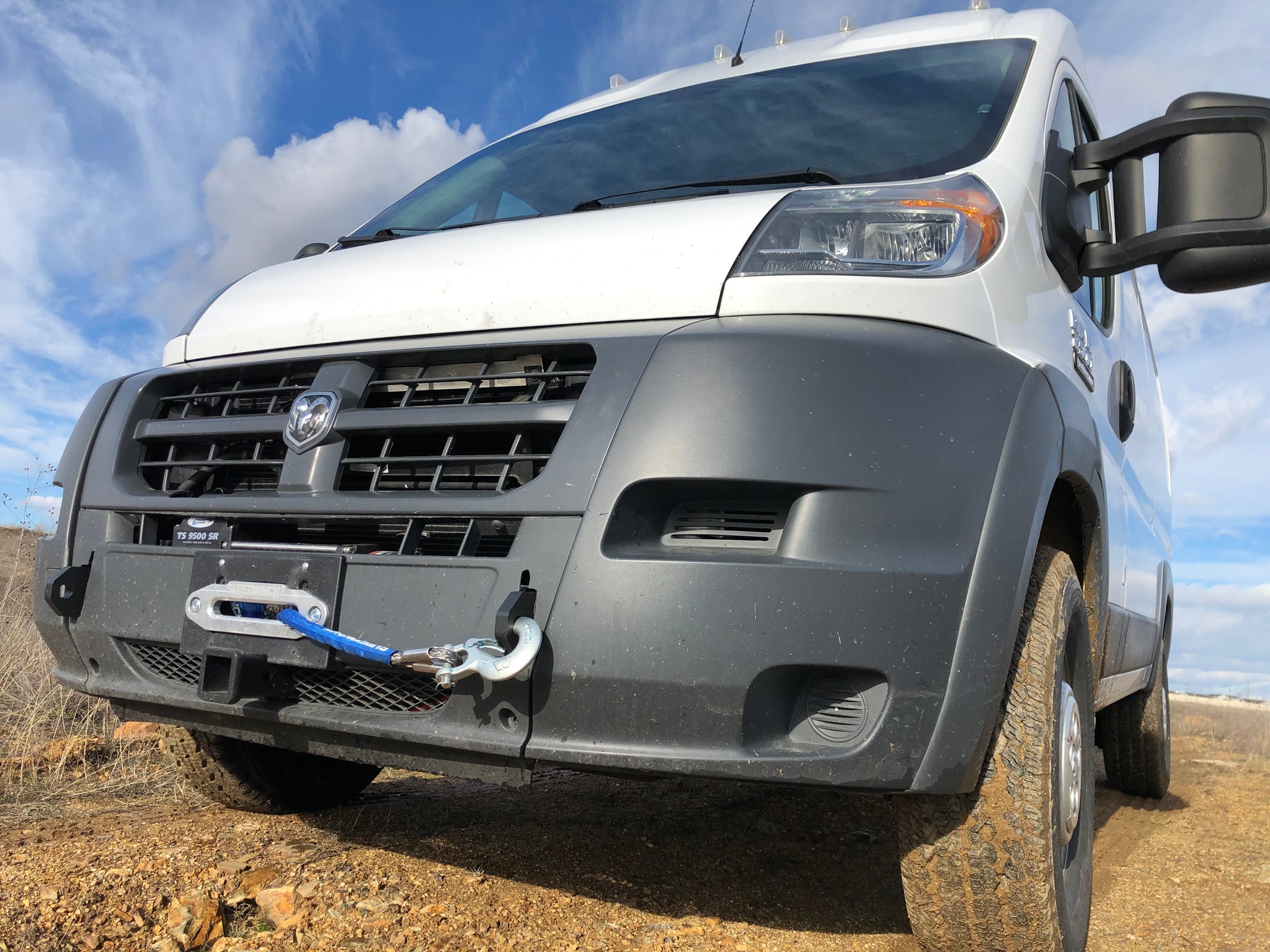

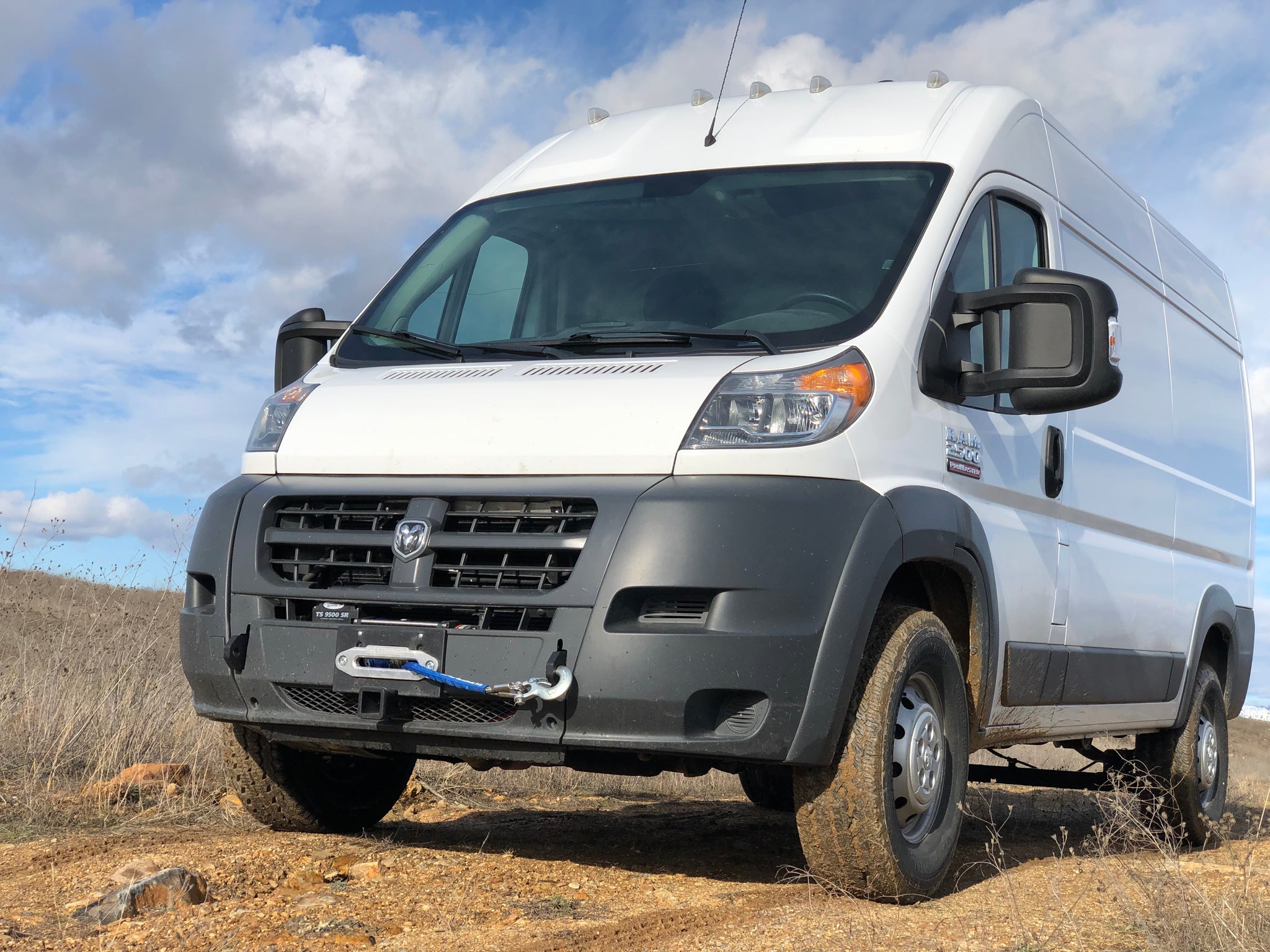

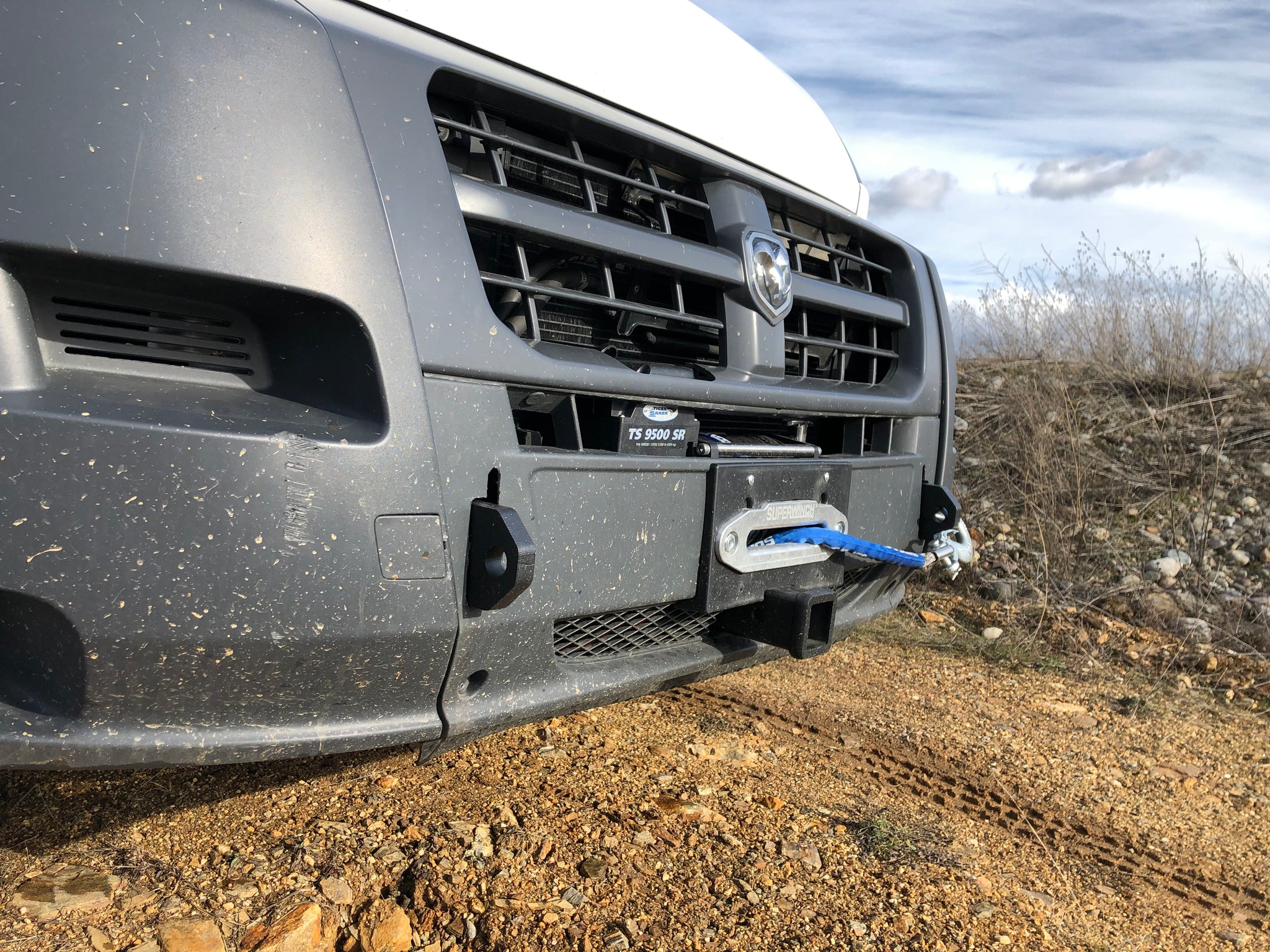

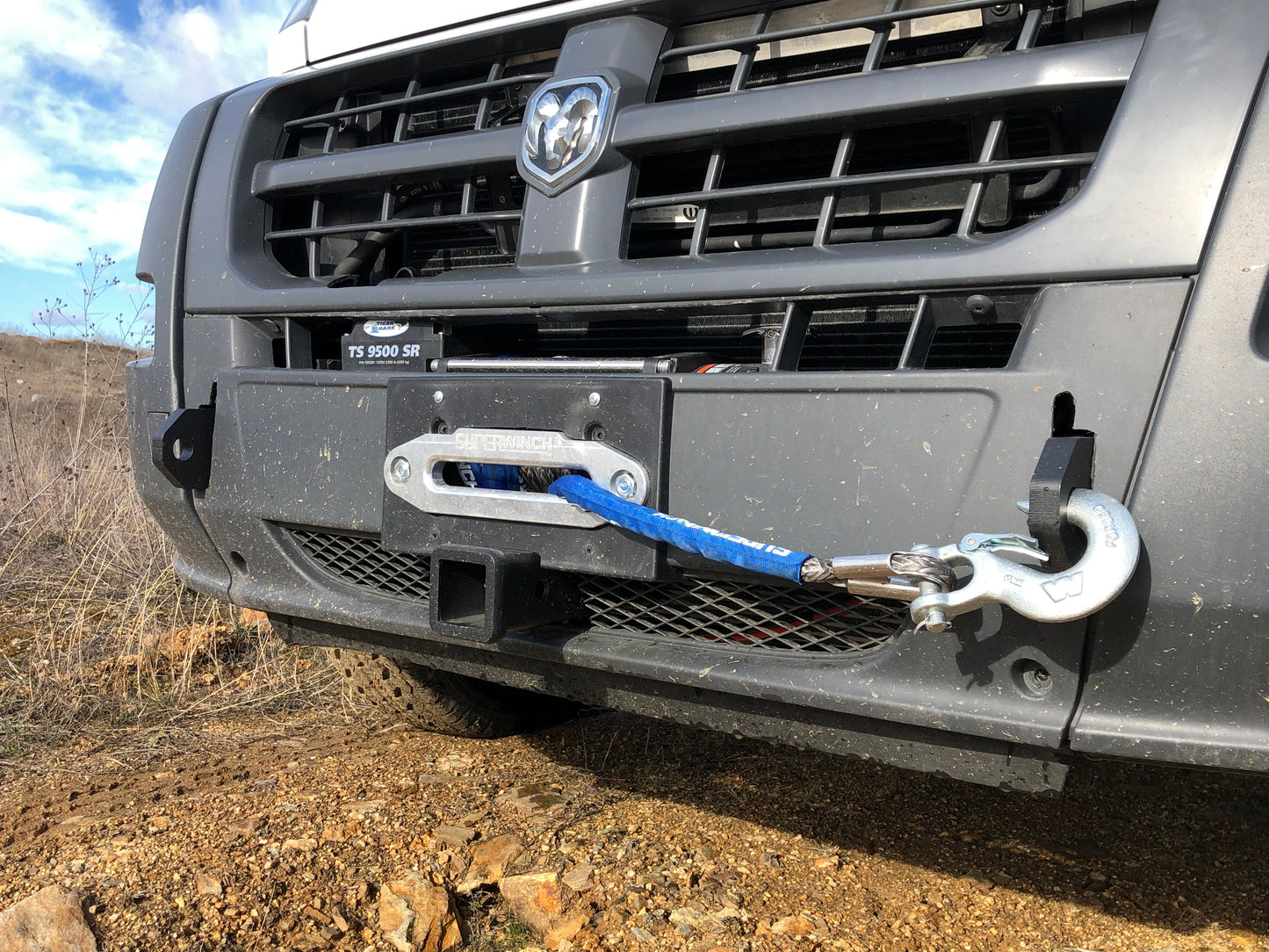

During the manufacturing process, we use a dual stage powder coat. With a zinc rich primer applied and baked on before the final matte black finish, this product will hold up to the elements for years to come. While most of the winch mount is hidden behind the factory bumper cover. The 3/4" shackle anchor points protrude through as does the front receiver to give the Promaster a muscular front end update without being a detriment to aerodynamics and fuel economy which is often common with full replacement bumpers.

The front receiver on this system is included but is not mandatory to install. Please review the instructions below for details on how this system is installed and which winches are compatible with this product. Space constraints are very tight on the front of the Promaster, so only select winches are confirmed to be compatible. Warn M8000, Warn XD9000, Superwinch Tiger Shark 9500SR/11500SR

Hitch Receiver Static Load Capacity: 300 lbs

Not compatible with 2023 and newer models with adaptive cruise control.

Not compatible with diesel models.

  • 2013+ ProMaster Front Hidden Winch Mount Installation Instructions:
  • Recommended Shop Labor Time: 6 Hours

    How do I decide which system to buy? I'm a newbie.

    • We've prepared some comparison guides for our most popular systems, they can be found under the stage guides tab on the product page.

    Which tune should I select?

    • We've prepared some valving charts based on van weights, they are at the bottom of each shock, and stage system page. You can select the tune from the options when adding your system to the cart.

    I don't know what my van weighs. How do I find out?

    • Easy, most county landfills have a commercial scale. You can use the CAT SCALE LOCATOR to find the closest CAT certified scale. These are great, as they give us a front and rear axle weight separately.

    Do I need adjustable shocks?

    • Our adjustable shocks are very popular, and offer a huge range of adaptability to your van. They are well suited to vans that see a wide range of payload and terrain. Do you like to exact every last bit of performance and comfort out of every situation? Or, do you prefer to live in the moment and keep your vehicle simple?

    Can I upgrade my kit in stages?

    • Typically, yes. Our kits are designed to be modular, so that customers can add components in stages without having to buy many components twice. If you buy a stock stage, then lift the van later, your shocks will still work.

    Do I have to lift my van to use your upgrades?

    • NO! All of our shock upgrades work as stock replacements. They are designed to work with both stock height and Van Compass lifted vans.

    Is a lifted van safe to drive?

    • YES! Our lifted 2wd vans are roughly comparable to a stock 4wd van. We design our lifts to preserve factory suspension geometry and travel, as well as work with our upgraded shocks. Lifts will also allow fitment of larger tires, which help smooth out terrain and road irregularities. The combined effect is a van that is actually much better driving than their stock, delivery van roots suggest.

    What size tire fits my _____?

    • We've prepared detailed fitment charts for each application, you'll find them in a tab on the product pages. We also recommend you consult your installer, and local tire shop. They are the experts when it comes to proven formulas with builds, and good tire choices for your area and use cases.

    Does installation void my warranty?

    • Ultimately, the decisions for warranty lie with the Dealer and Manufacturer, so you will want to contact them for an answer. Van Compass parts are designed with OEM performance in mind, and as thoroughly as possible. Many of our parts are stock replacements.

    Do Van Compass products have a warranty?

    Do you do installations?

    • We no longer do installations, we are focused 100% on designing, manufacturing and shipping the best possible products we can make.

    How much does installation cost?

    How long do your products take to install?

    • Installation instructions are found under the 'Instructions' tab on the product page. We list recommended labor hours for both home, and professional environments.

    Can I install your products myself?

    • YES! Many of our customers are do-it-yourselfers, so our products are designed with the installer in mind. They have been thoroughly engineered to be durable, fit great, and easy for a human to install. We've prepared detailed instructions and fitment info to help you, so make sure you read them thoroughly. We've done our best to outline the tools, safety equipment, and various other tricks you'll need to be able to confidently install our products.

    Will I need an alignment after installation?

    • We always recommend a quality, digital alignment be performed after any suspension modification where the struts are removed and reinstalled. Although many vans have limited adjustment, the TOE setting is critical to front end alignments, good tire wear, and safe drivability and should always be properly checked after installation.

    When will my order ship?

    • We allocate and ship orders on a first in, first out basis. We understand, it's frustrating waiting for long periods of time and how that impacts the unique circumstances of our customers. For more information on our shipping and order policies, please read here: Shipping, Return and Cancellation Policies

    Do I need to put a deposit down?

    • Many credit card companies provide only a small window to collect funds from online orders. With the long and often un-predictable lead times many of our products are experiencing, this small windw is not a good fit. The unique nature of our business and customer base dictate that we take a full deposit up front. If your order will be shipping freight, we will contact you at the time of shipment to ensure an accurate and fair rate. The 3% cancellation fee only covers the service charges we incur from the credit card companies.

    Still have questions?

    • We'd love to chat!

    Please fill out our contact form and someone will reach out to you as soon as they are able to!

    Why can't I find your phone number?

    • With the unique nature of many of our customer's builds, the conversation is often drawn out over several months. Keeping a paper trail allows us to remember the specific names, vans, builds and needs for each of our customers. We're available to chat via appointment on a limited basis, so please email us first.
