FUEL TANK SKID PLATE - SPRINTER 4X4 (2015+) by VAN COMPASS

FUEL TANK SKID PLATE - SPRINTER 4X4 (2015+) by VAN COMPASS

4012

$ 450.00 USD
$ 811.62 USD $ 450.00 USD
Sale Sold out
Shipping calculated at checkout.
VAN YEAR

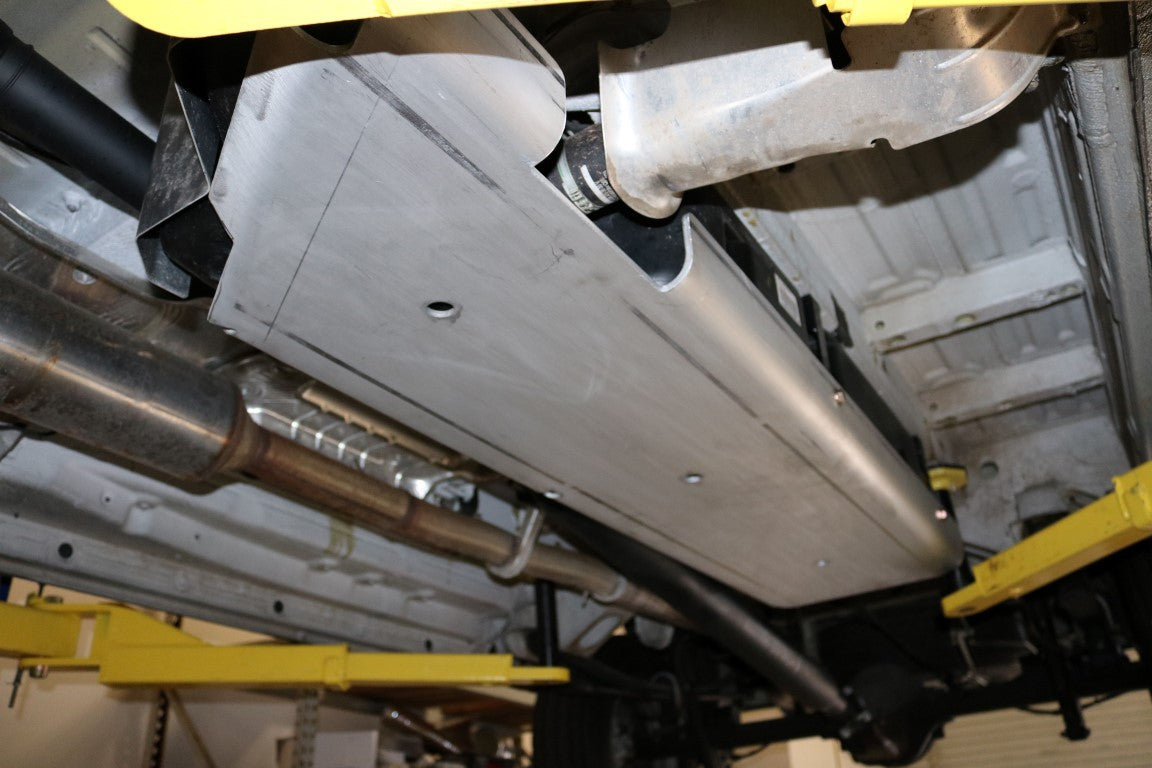

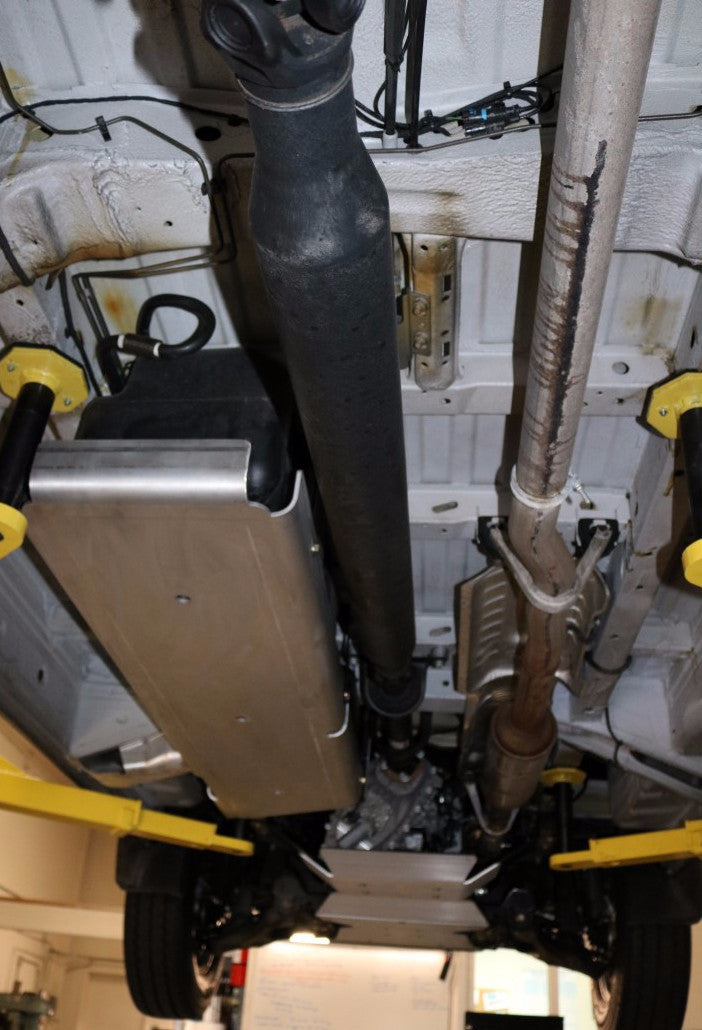

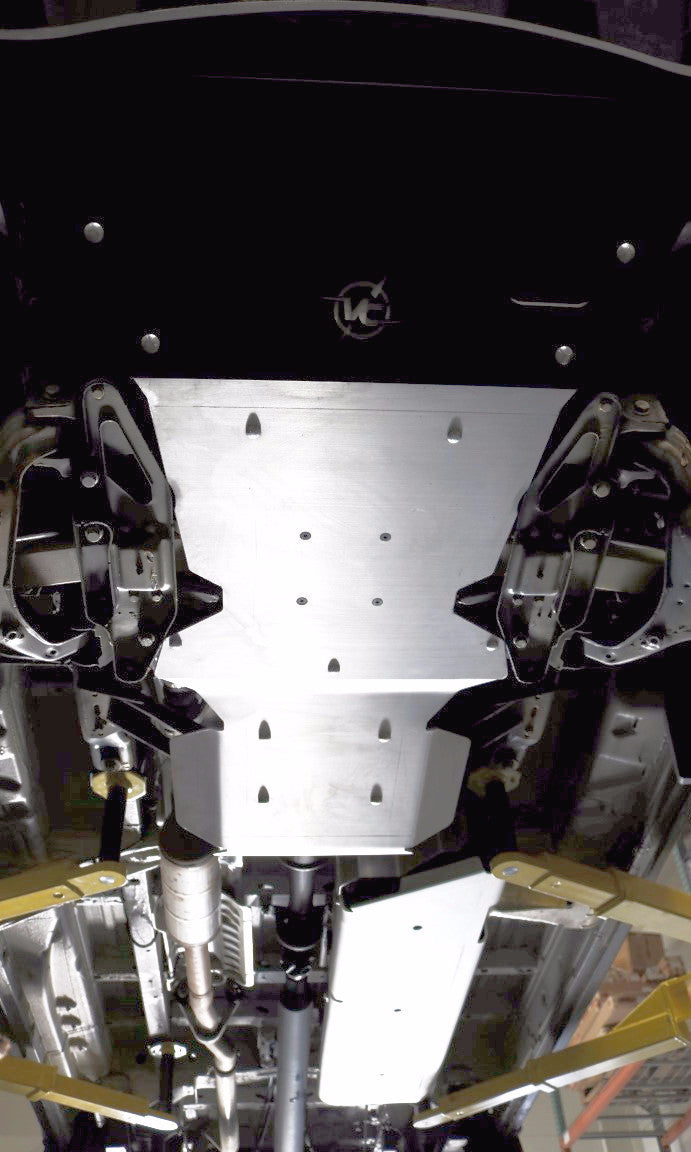

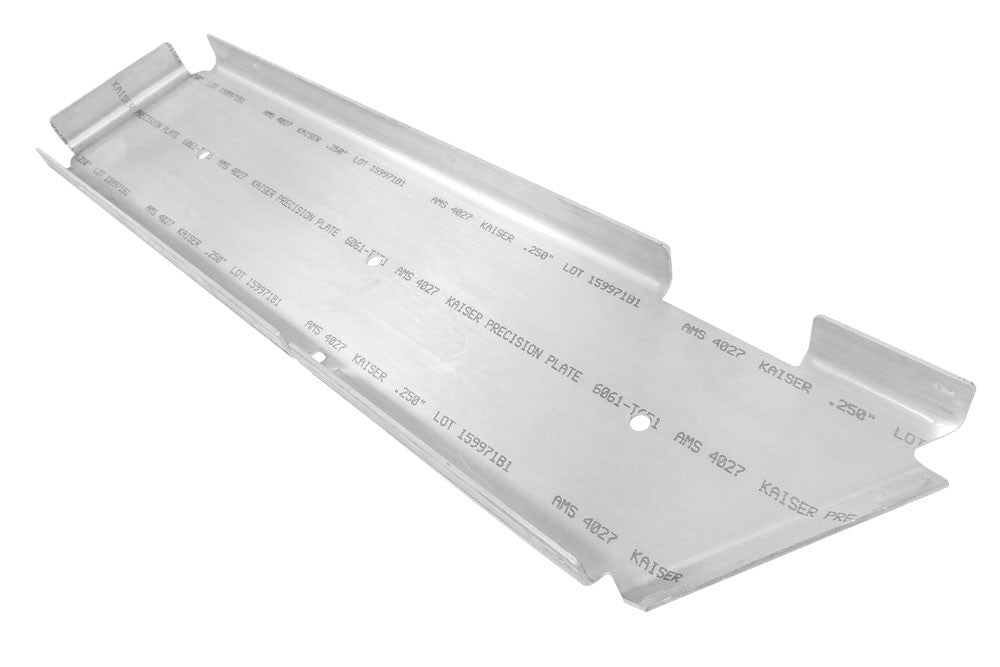

Explore with confidence in your 4x4 Sprinter with the Van Compass Fuel Tank skid plate. The plastic fuel tank is in vulnerable position when driving over obstacles. This skid plate is designed to create a strong, smooth surface to slide over or land on. Made of 1/4" thick 6061-T6 Aluminum, This skid plate is designed to take the hardest of hits. The skid system is 100% bolt on with all the hardware and 1/8" high strength steel brackets provided. For additional protection add the Engine and Transmission skid plates!

Videos

View full details

INCLUDED COMPONENTS

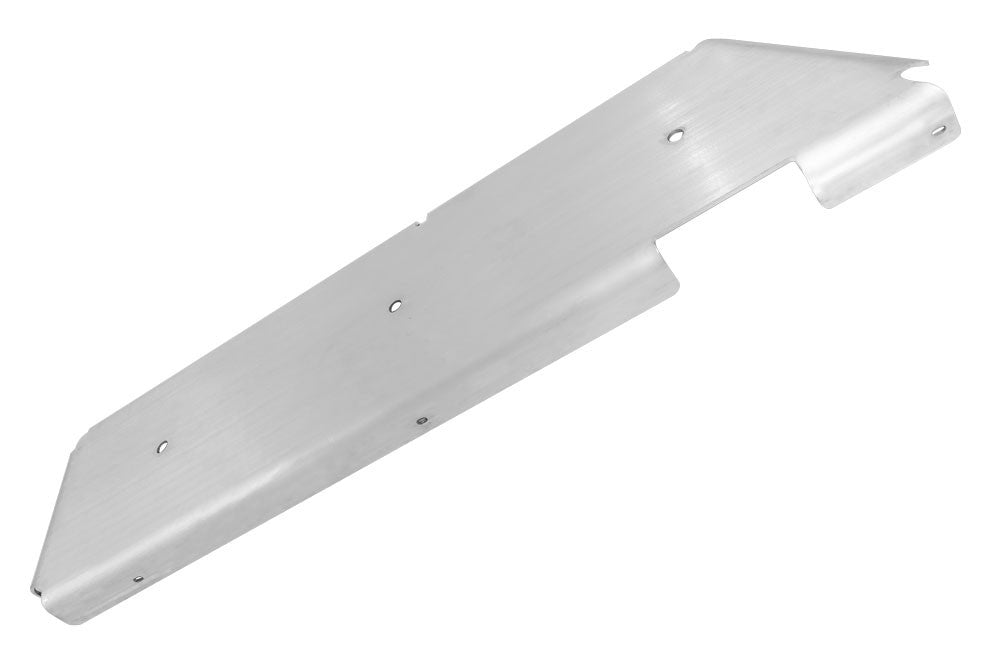

  • Fuel Tank Skid Plate - 1/4" 5052 Aluminum

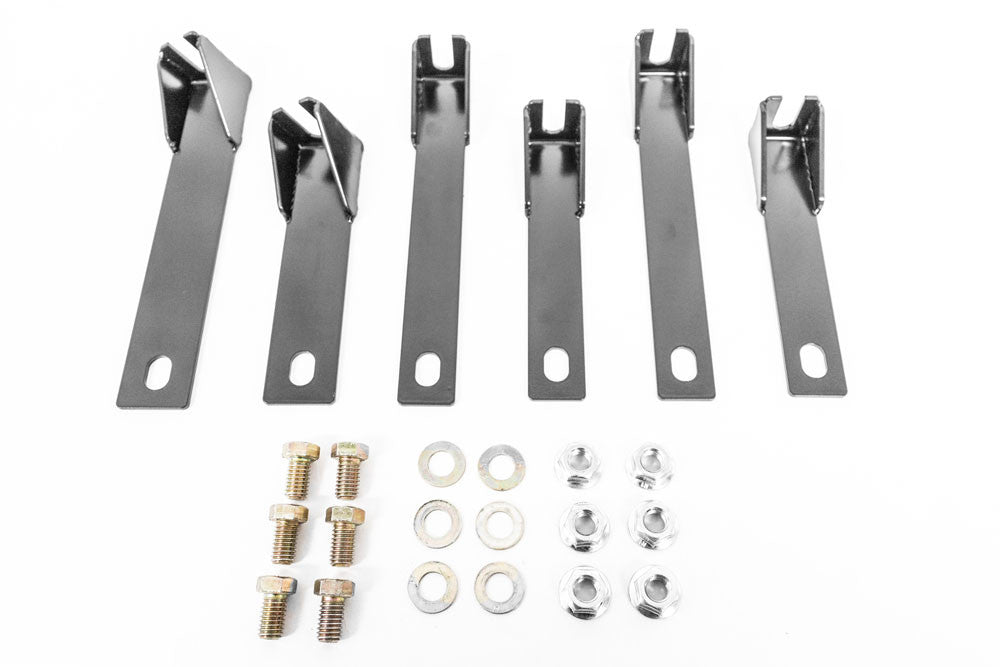

  • Skid Plate Mounting Brackets - 1/8" High strength steel brackets powder coated black for corrosion resistance
  • All necessary hardware

FITMENT GUIDE

MODEL: SPRINTER 2500 and 3500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4

INSTRUCTIONS

2015-2018 Sprinter 4x4 Fuel Tank Skid Plate Installation Instructions:

2019-22 Sprinter 4x4 Fuel Tank Skid Plate Installation Instructions:

LABOR TIMES

Recommended Shop Labor Time: 1 Hour

Customer Reviews

Based on 2 reviews
0%
(0)
50%
(1)
50%
(1)
0%
(0)
0%
(0)
R
Ross
tight fit

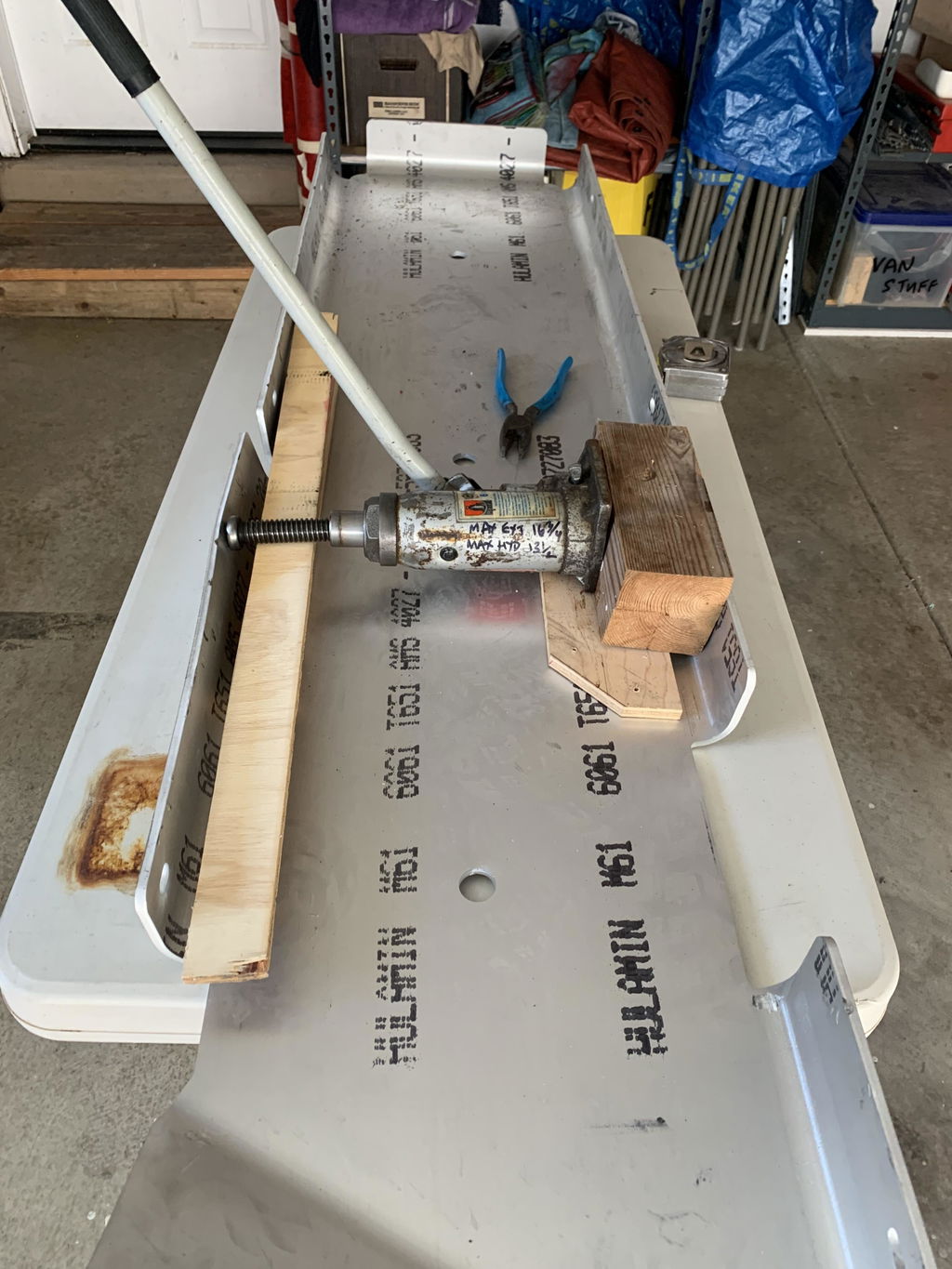

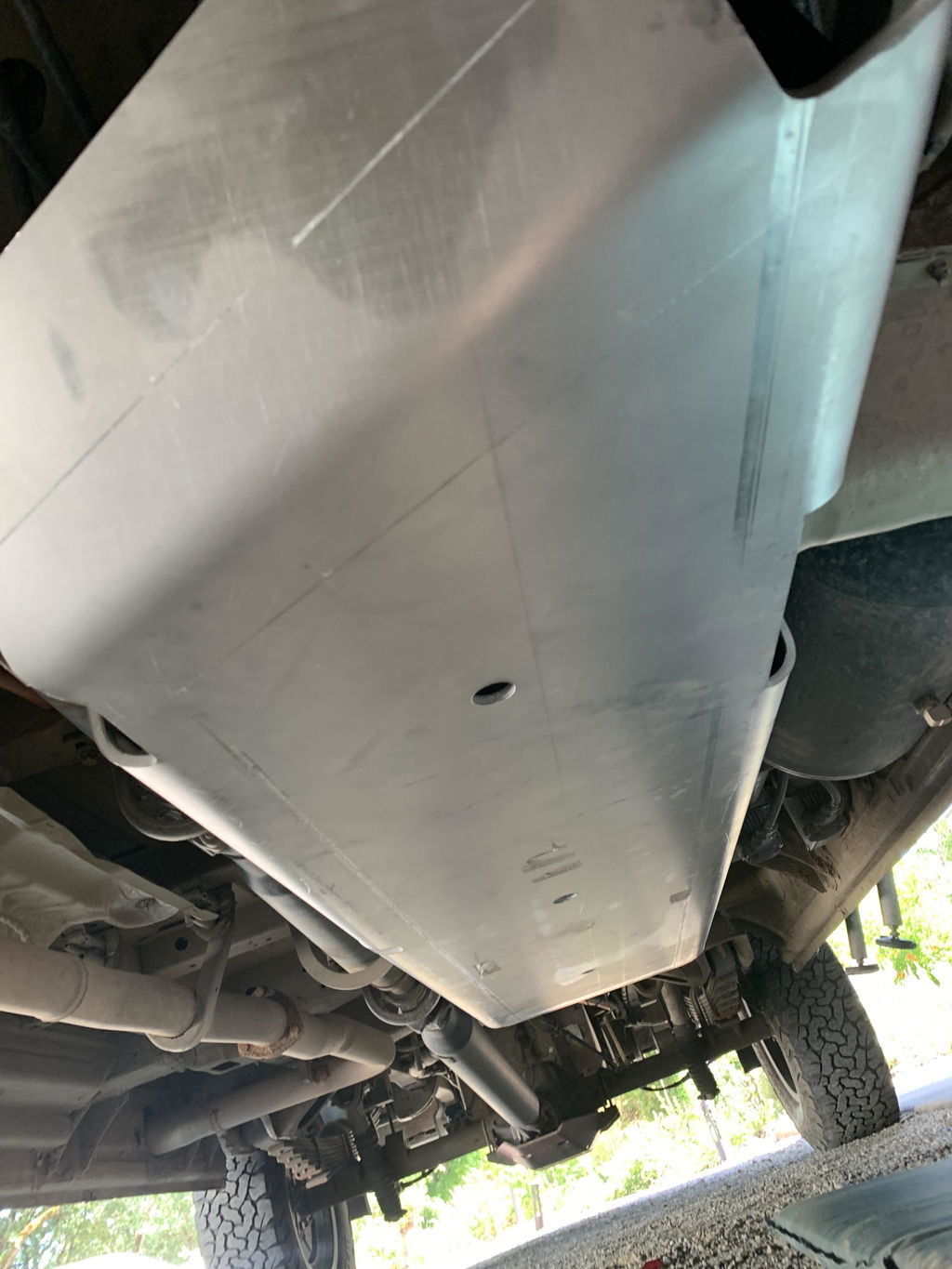

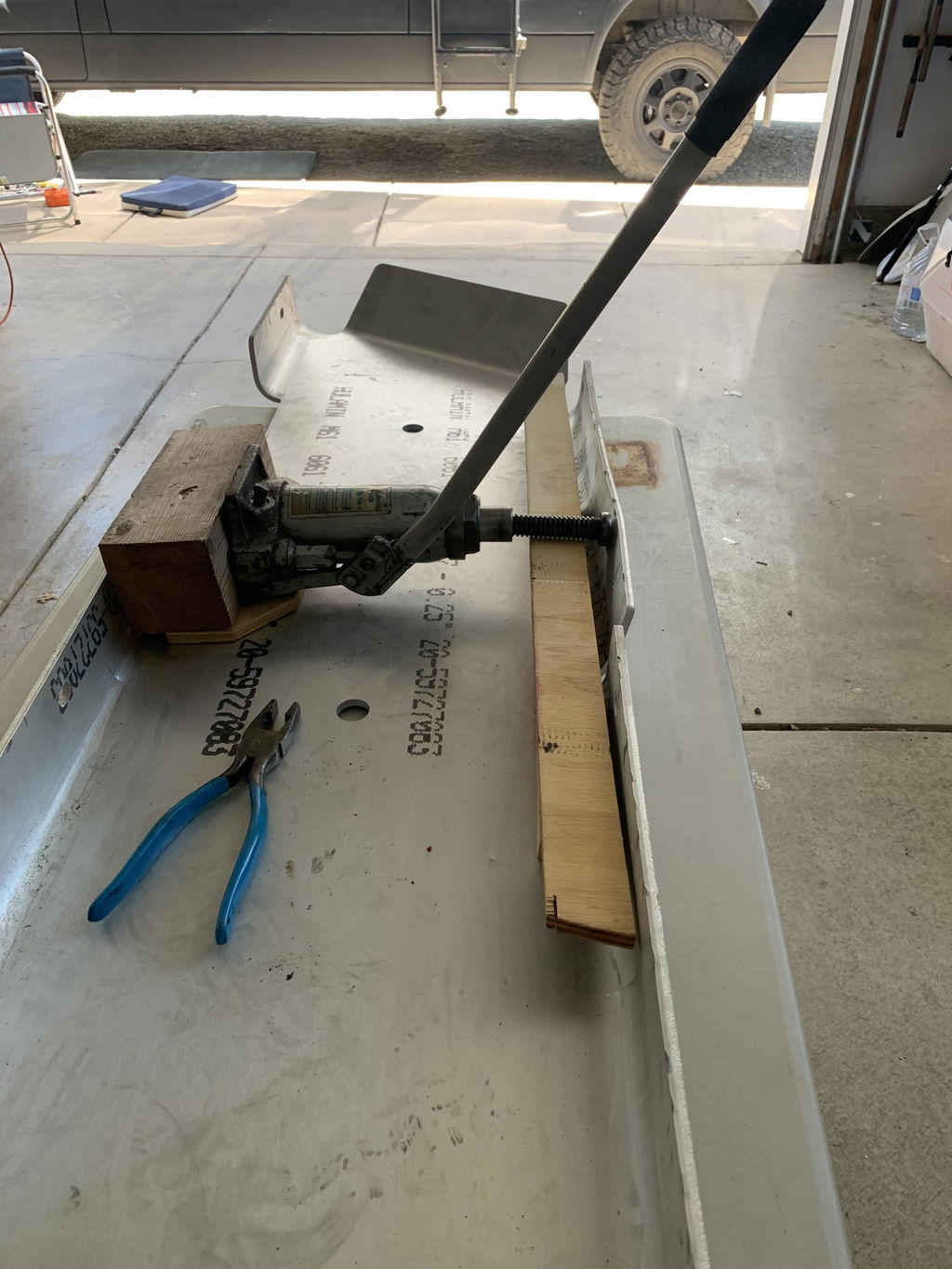

The plate is fine, it does its job. It is not difficult to install except it is too small. I had to stretch the side walls with a hydraulic jack by 10mm, 5mm per side roughly. Then it fit snuggly. When installing on a plastic tank you don't want it to scrape the sides. Attention to detail. Also some holes along the side walls would facilitate additional plates for gear between the tank and the side of the van. It could also be lighter. It's on a tank as an entire sheet so doesn't need to be so thick and heavy. For $450 its a deal...$800 not so much...$$$$$ Great service from the Van supplier I trust.

User picture User picture User picture
W
William Cargile
Fuel tank skid plate

The install on a 2019 Revel sucks. It can be done, you guys should design a few brackets different to support that vehicle.

The product after finally getting it installed is a great addition, also I have the full engine and drive train set of skid plates, they are great as well and install is challenging but not a problem.

The passenger side of the Revel needs a skid plate for the RV parts on that side, I would buy it for sure. The grey water/black water needs a rock slider or slide plate as well, when will that be available?

Hi William, thanks for the feedback. Unfortunately, the Revels can be a bit tricky due to the location of the additional tanks. Glad you were able to make these work on your van, we appreciate your support!
