ROCKER GUARDS - TRANSIT (2015-UP 148" WHEELBASE ONLY) by VAN COMPASS

ROCKER GUARDS - TRANSIT (2015-UP 148" WHEELBASE ONLY) by VAN COMPASS

SKU:4031

Regular price $ 2,203.75 USD
Regular price $ 2,203.75 USD Sale price $ 2,203.75 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

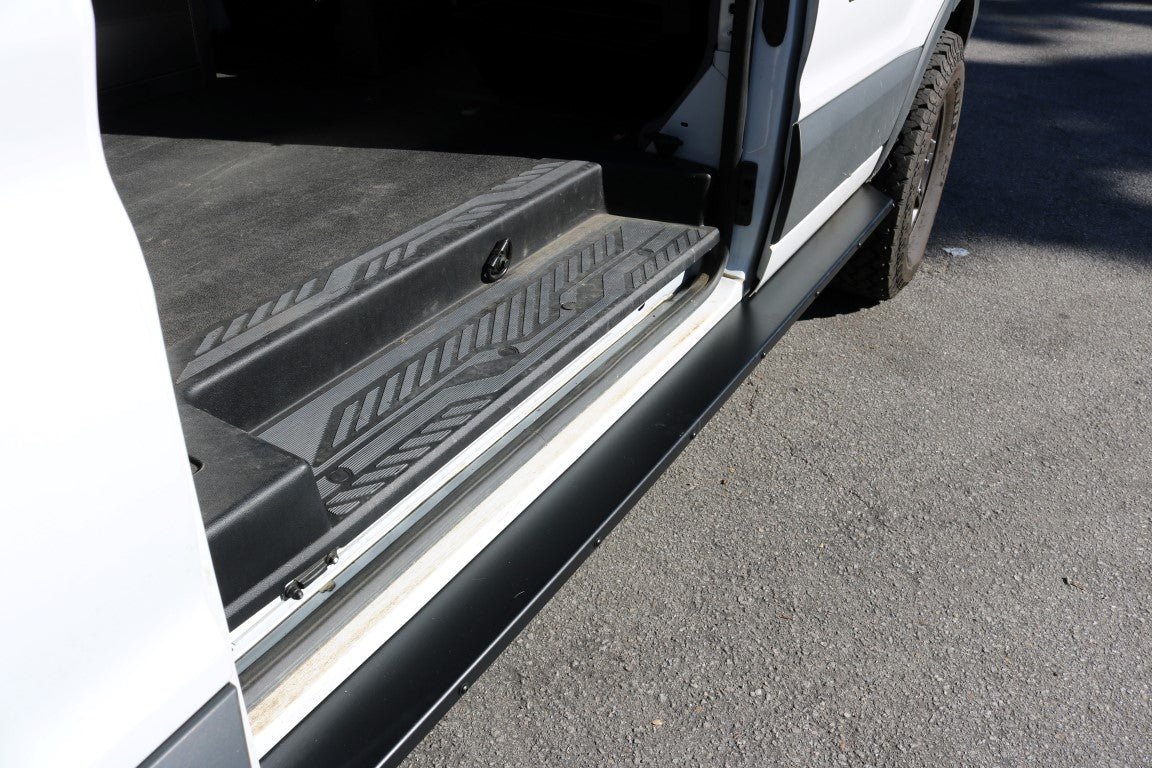

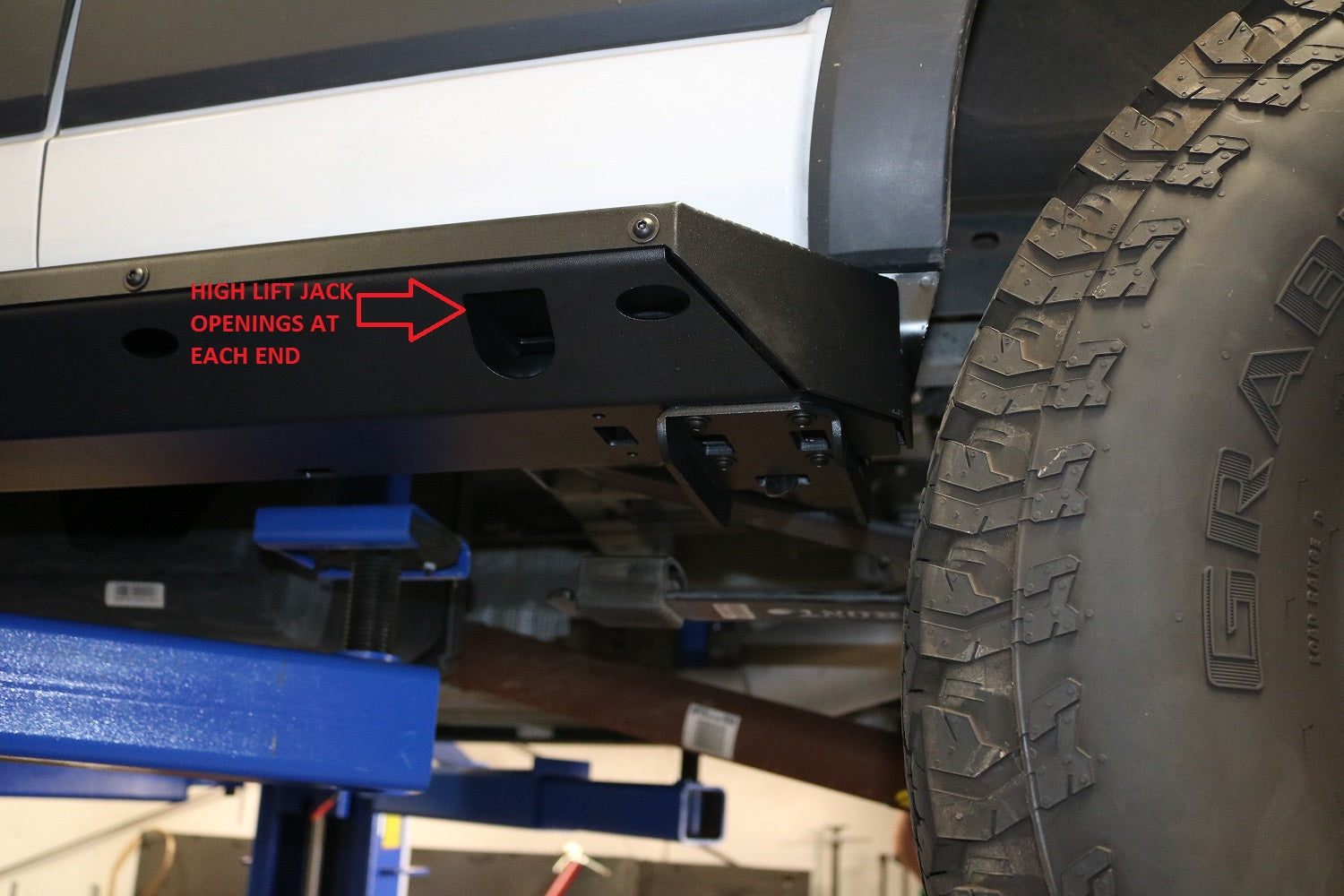

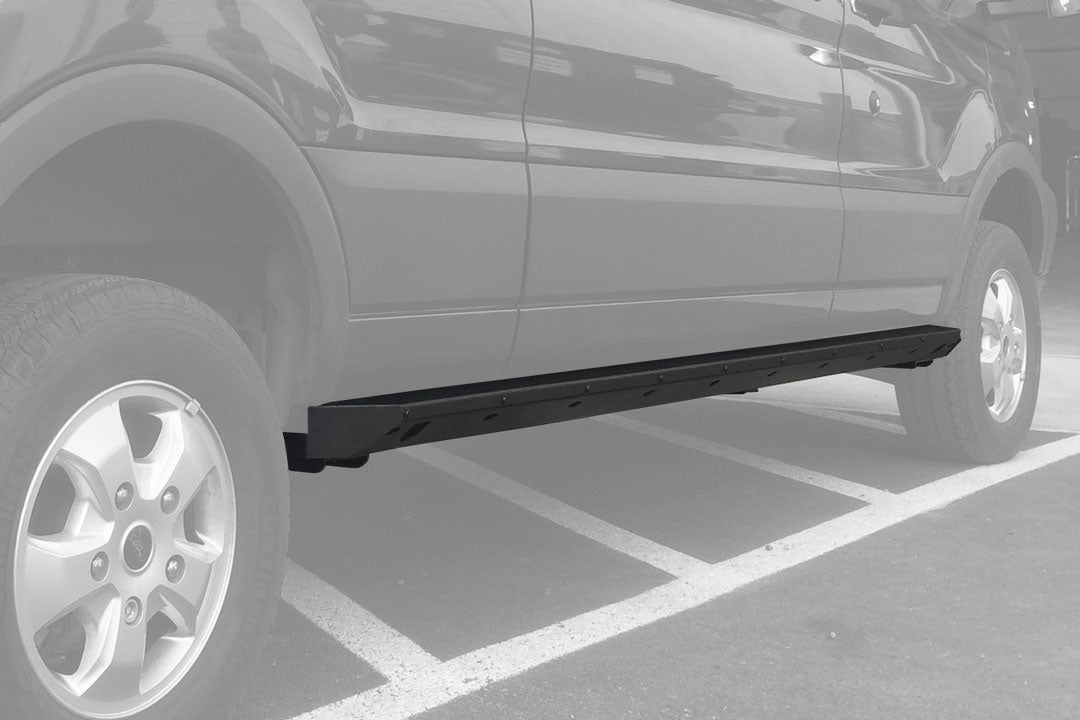

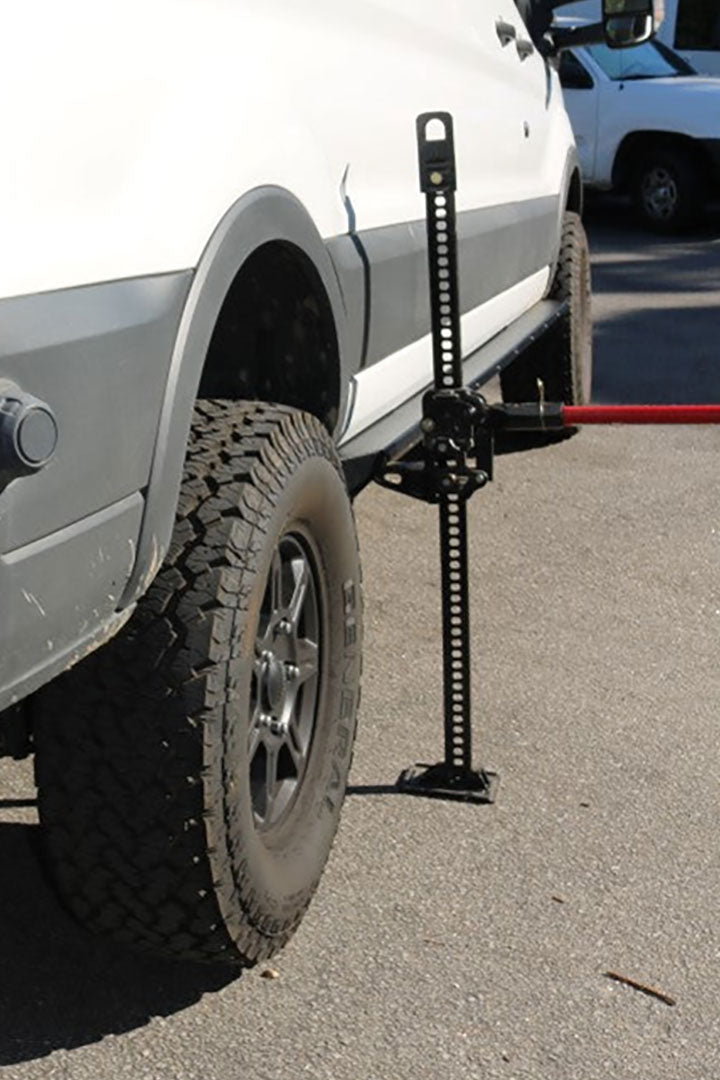

More than just a step! Add functional protection, chassis rigidity and ease of access to your 148" wheelbase Transit in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

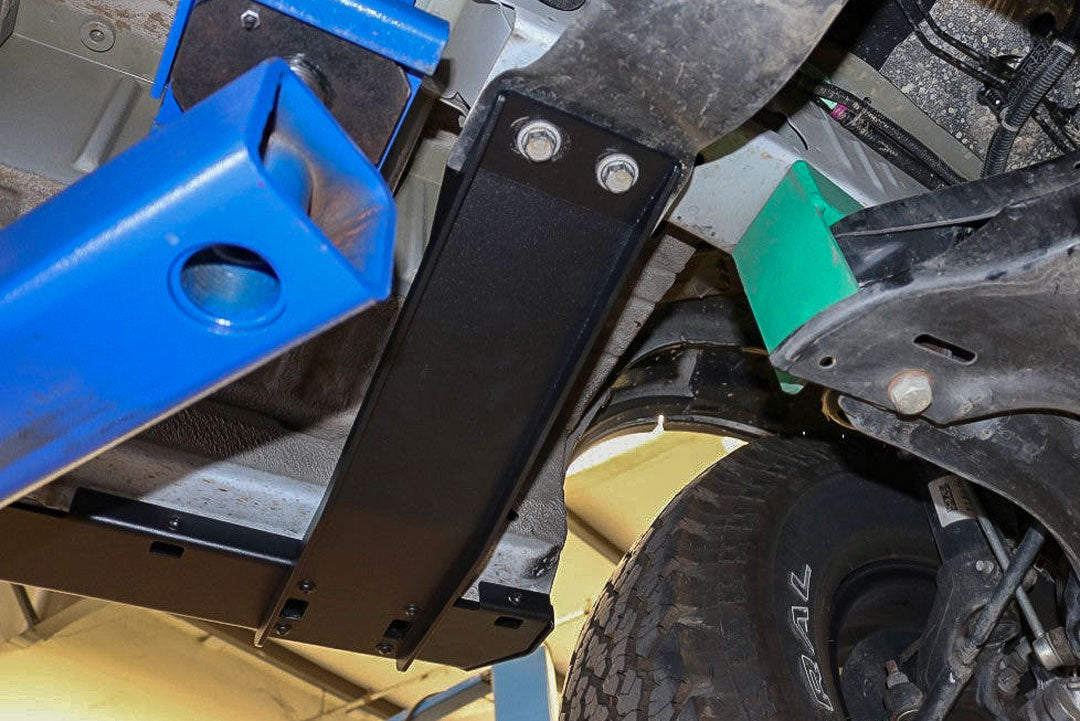

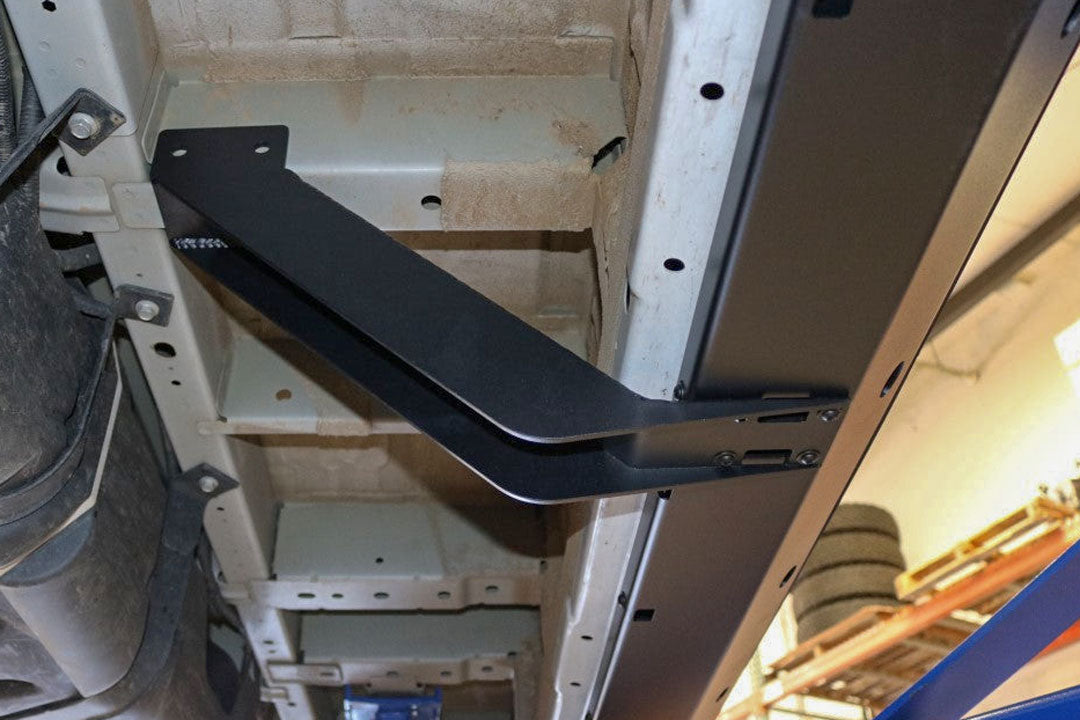

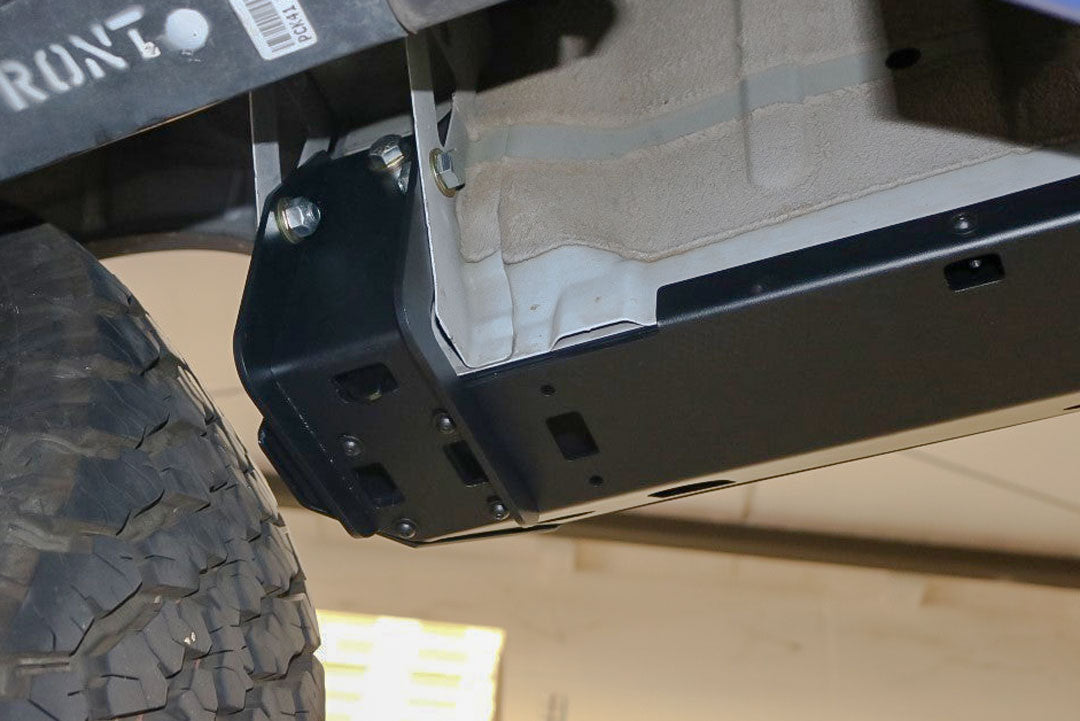

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation. Fits both 2WD and AWD vans, can compatible with or without our lift kit.

Step Surface Width: 3.5" with doors closed

*** These ship in a very long crate, non-commercial address may be subject to additional delivery fees. ***

View full details

Collapsible content

INCLUDED COMPONENTS

  • Rocker Guard step plates, 1/8" Steel, Black Powdercoat
  • Front, Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
  • Stainless Mounting hardware with AL2000 black finish for step plates

FITMENT GUIDE

MODEL: TRANSIT, 148" WHEELBASE ONLY

YEAR: 2015-PRESENT

DRIVE TYPE: AWD and RWD

INSTRUCTIONS

Ford Transit rocker guard installation instructions:

LABOR TIMES

Recommended Shop Labor Time: 4 Hours
