HIGH PERFORMANCE REAR BUMP STOP SYSTEM - SPRINTER AWD, 4X4 (2015+ 2500 ONLY) by VAN COMPASS
HIGH PERFORMANCE REAR BUMP STOP SYSTEM - SPRINTER AWD, 4X4 (2015+ 2500 ONLY) by VAN COMPASS
SKU:3073
Couldn't load pickup availability
Key Features
- Adjustable for multiple spring and lift height combinations.
- Includes all necessary hardware.
- Works with stock and VC tuned Falcon shocks.
- Works with stock and lifted vans.
- Simple installation with basic hand tools.
Unlock hidden potential and improve overall ride comfort with our High Performance Rear Bump stop system! Using our signature progressive foam bump stops, we add a more progressive feel to the rear end without the harsh impact associated with OE style rubber. The softer, progressive nature of the bump stop also enables more complete cycling of the rear shocks, so you're ready to handle big suspension hits with as much wheel travel as we could squeeze out of the chassis.
We've also created an innovative billet upper mounting adapter to convert to a more traditional style bump stop. No more fiddling with pry bars or screwdrivers to install difficult factory rubber bump stops! This kit includes all the necessary brackets, parts and hardware to work perfectly with any of our rear suspension configurations too, giving you flexibility for the future if you're just getting started on certain aspects of your van's setup.

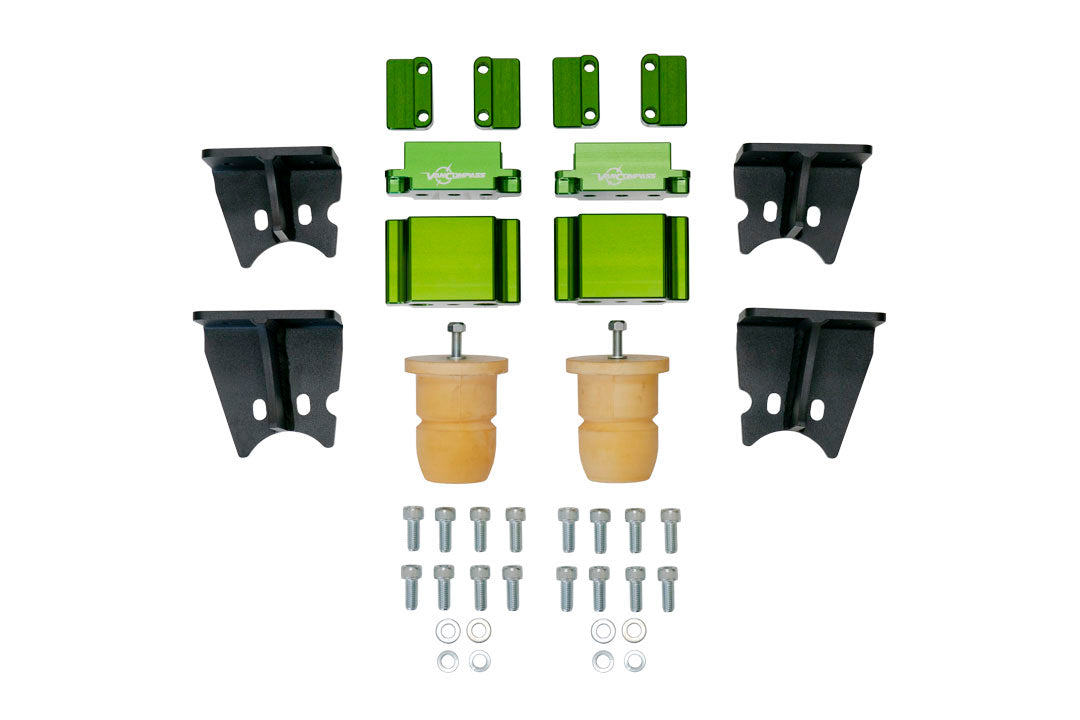

![High performance rear bump stop system for Sprinter AWD, 4x4 (2015+ 2500) by Van Compass, featuring metal parts, screws, and hardware for adjustable suspension setup.](http://vancompass.com/cdn/shop/files/3073-MAIN.jpg?v=1721156630&width=1445)

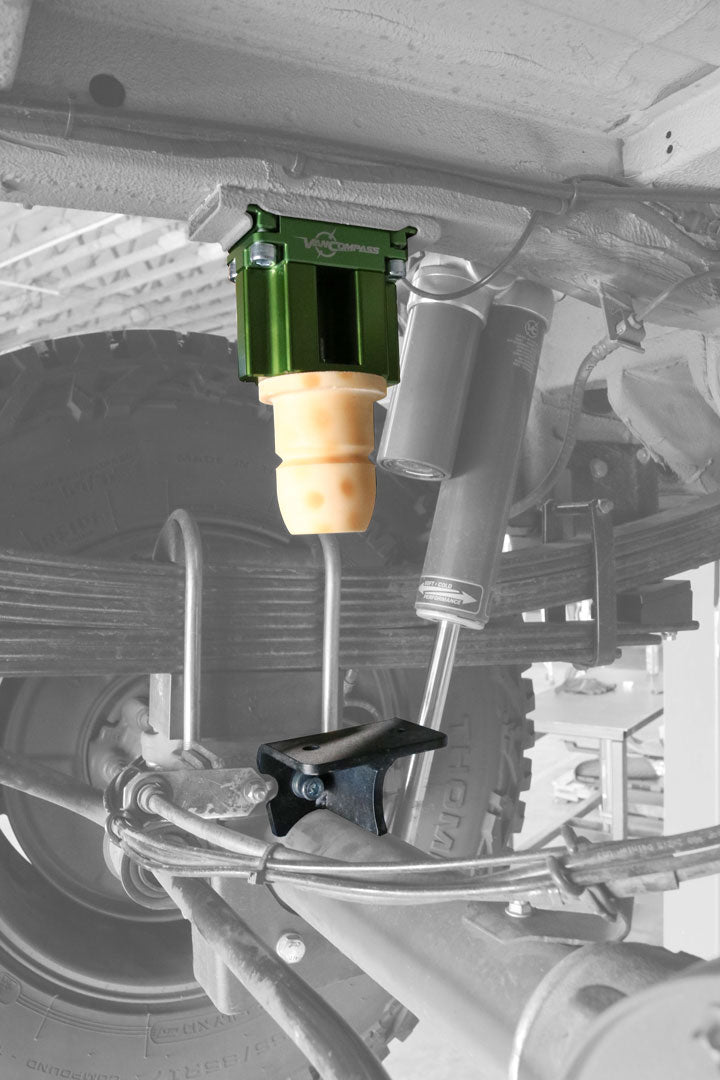

![High Performance Rear Bump Stop System for Sprinter AWD, 4x4 (2015+ 2500) by Van Compass, featuring close-up of adjustable components and necessary hardware for installation.](http://vancompass.com/cdn/shop/files/3073-IN-1.jpg?v=1721171948&width=1445)

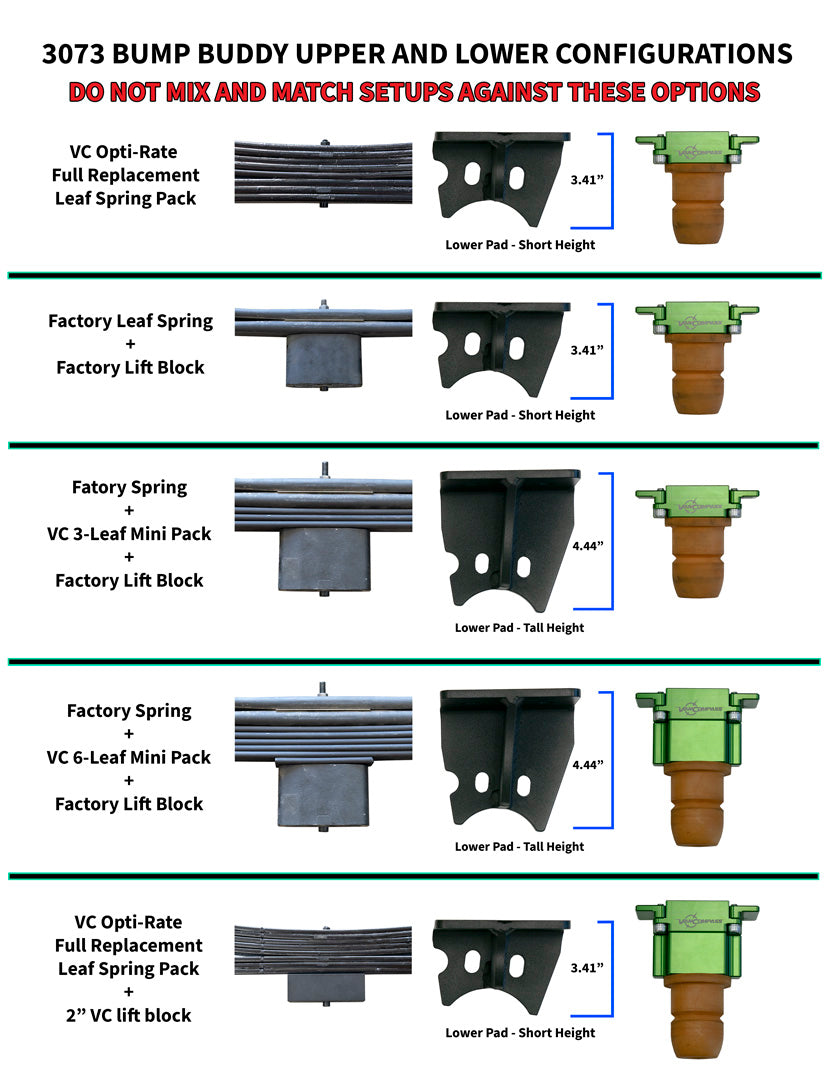

![Configuration chart High Performance Rear Bump Stop System for Sprinter AWD, 4x4 (2015+ 2500) by Van Compass, displayed with various metal brackets and hardware components for installation.](http://vancompass.com/cdn/shop/files/Bump-Lower-Configs.jpg?v=1721343433&width=1445)
Collapsible content
INCLUDED COMPONENTS
- VC Tuned Progressive foam bump stops
- Billet aluminum upper mounting plate
- Fabricated steel lower bump stop striker plate (2 heights)
- Billet aluminum 2" upper lift spacer
- All necessary mounting hardware
FITMENT GUIDE
MODEL: SPRINTER 2500
YEAR: 2015-PRESENT
DRIVE TYPE: 4X4, AWD
LABOR TIMES
Recommended Shop Labor Time: 1 Hour
