FRONT RECEIVER HITCH - FORD TRANSIT (2013+ 1500, 2500, 3500) by VAN COMPASS

FRONT RECEIVER HITCH - FORD TRANSIT (2013+ 1500, 2500, 3500) by VAN COMPASS

SKU:4070

Regular price $ 929.25 USD
Regular price Sale price $ 929.25 USD
Sale Sold out

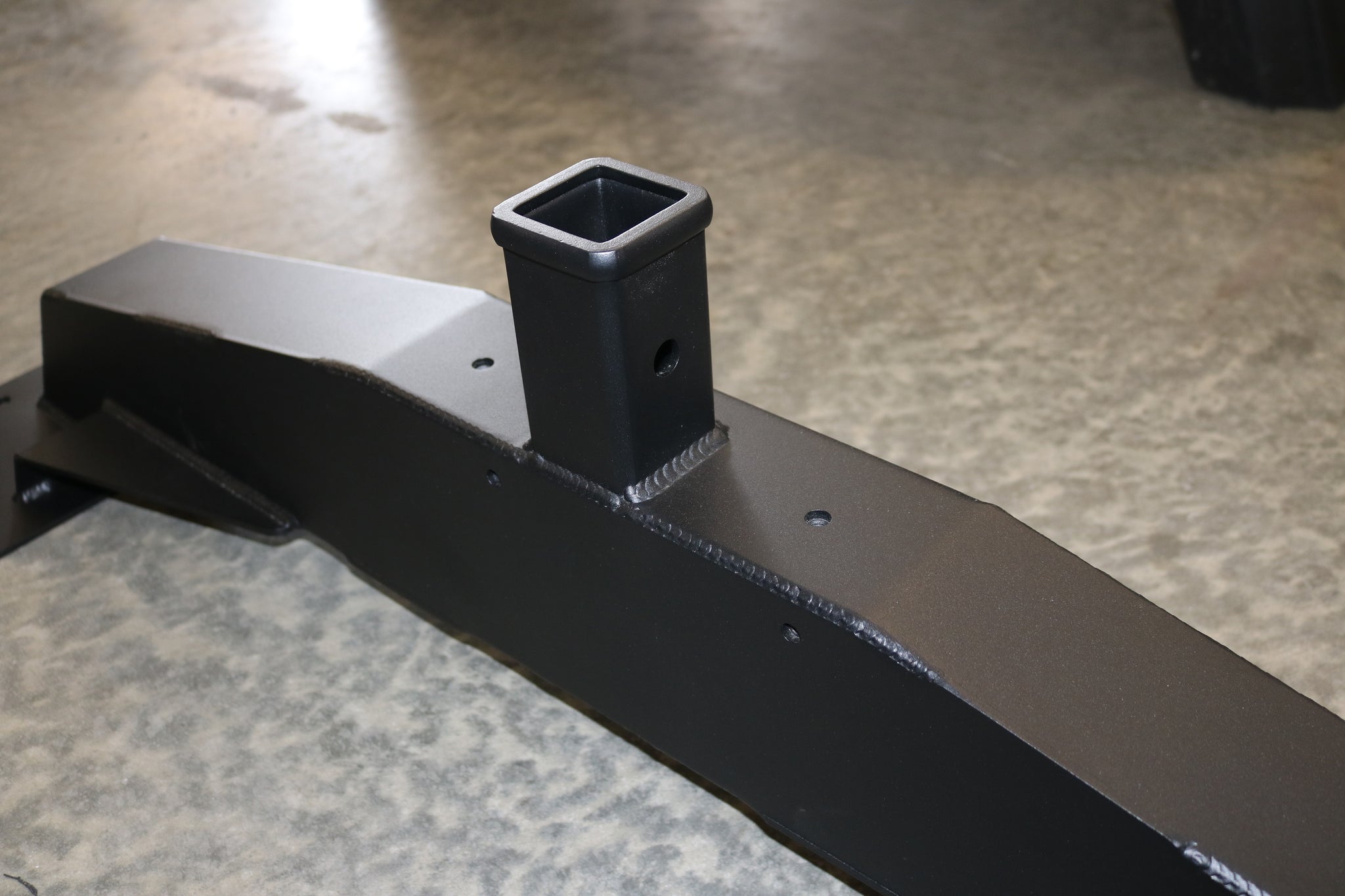

Add function to the front of your Ford Transit with the Van Compass front receiver hitch. Designed to hold items like bike / motorcycle racks, recovery shackle or even a winch cradle for vehicle recovery. Manufactured from high strength 3/16" steel and 1/4"thick square tubing, this front receiver is CNC cut, formed and welded at Van Compass to ensure a perfect fit. The receiver goes through a dual stage powder coating process once constructed. A zinc rich primer is applied and baked on before the final matte black finish for maximum corrosion protection.

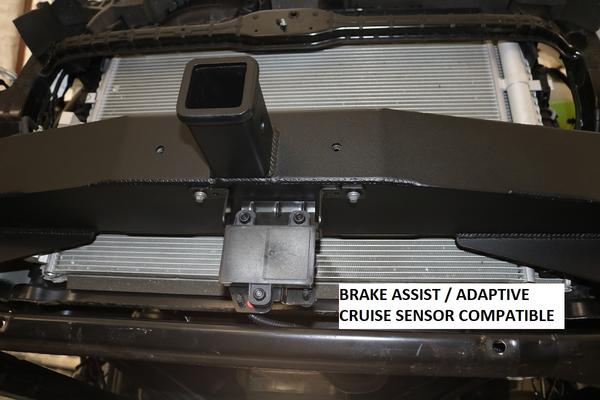

The Van Compass front hitch replaces and replicates the stock front bumper hidden under the plastic front bumper fascia. It is fully compatible with all front-end sensors, including parking sensors and the brake assist / adaptive cruise control radar sensor.

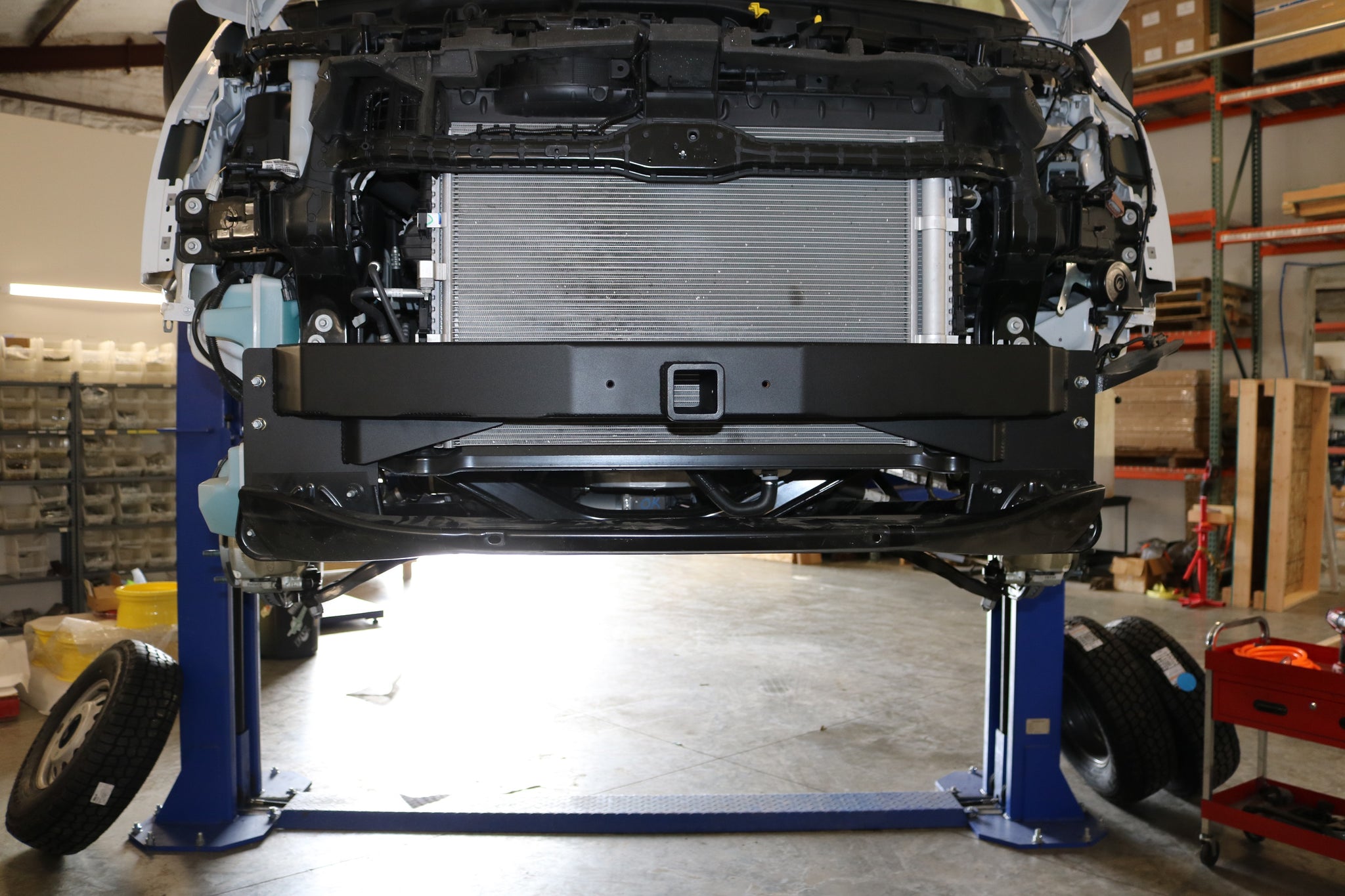

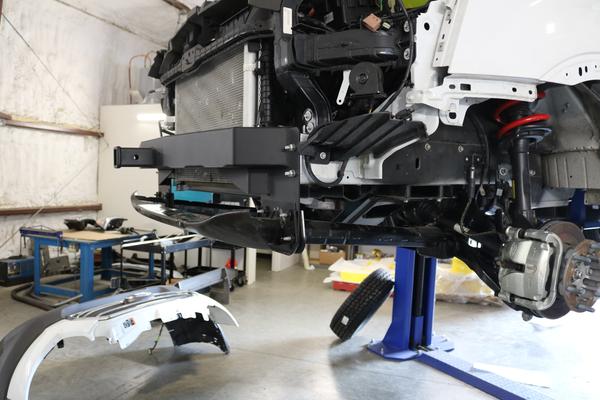

This receiver mount is bolt on with some simple trimming of factory bumper components. Like all Van Compass products, all necessary hardware to install this front receiver hitch is included. For more information see the detailed instructions and photos on this product page.

Static Load Capacity: 400 lbs

Videos

View full details

Collapsible content

INCLUDED COMPONENTS

  • Front Hitch Mount
  • Mounting Hardware

FITMENT GUIDE

MODEL: TRANSIT

YEAR: 2015-PRESENT

DRIVE TYPE: AWD and RWD

NOTE: NOT COMPATIBLE WITH TRAIL MODEL

NOTE: NOT COMPATIBLE WITH 350HD MODEL TRANSITS THAT HAVE A LARGER INTERCOOLER

NOTE: Vans with active cooling shutters will need to have the motor removed from the louver assembly and remounted out of the way.

INSTRUCTIONS

Transit front receiver hitch installation instructions:

LABOR TIMES

Recommended Shop Labor Time: 4 Hours
