BAJA BRACKET REAR SHOCK MOUNT - SPRINTER (2007+ 2500 ONLY) by VAN COMPASS
"PART NUMBER: "3063- Description
- Videos
- Instructions
- FAQ's
It's no secret that the Sprinter has some shortcomings when used for serious off road usage. As many owners are discovering, a heavily loaded van driven hard off road can stress the factory components beyond their original design parameters. From rutted Alpine 2-tracks, to the box canyons of Death Valley, to the rugged coast of Baja, owners are taking these vans to places Mercedes never really intended.

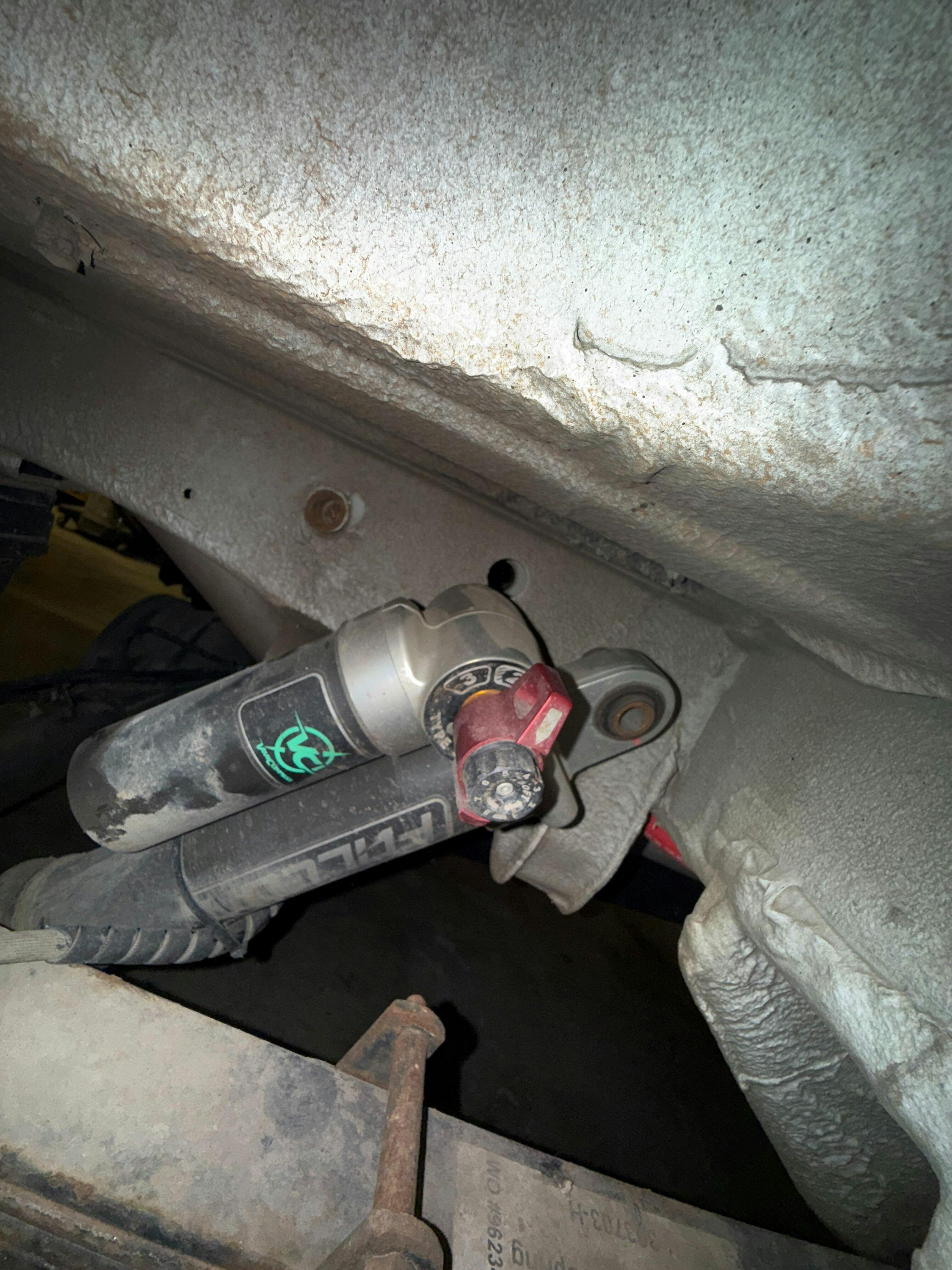

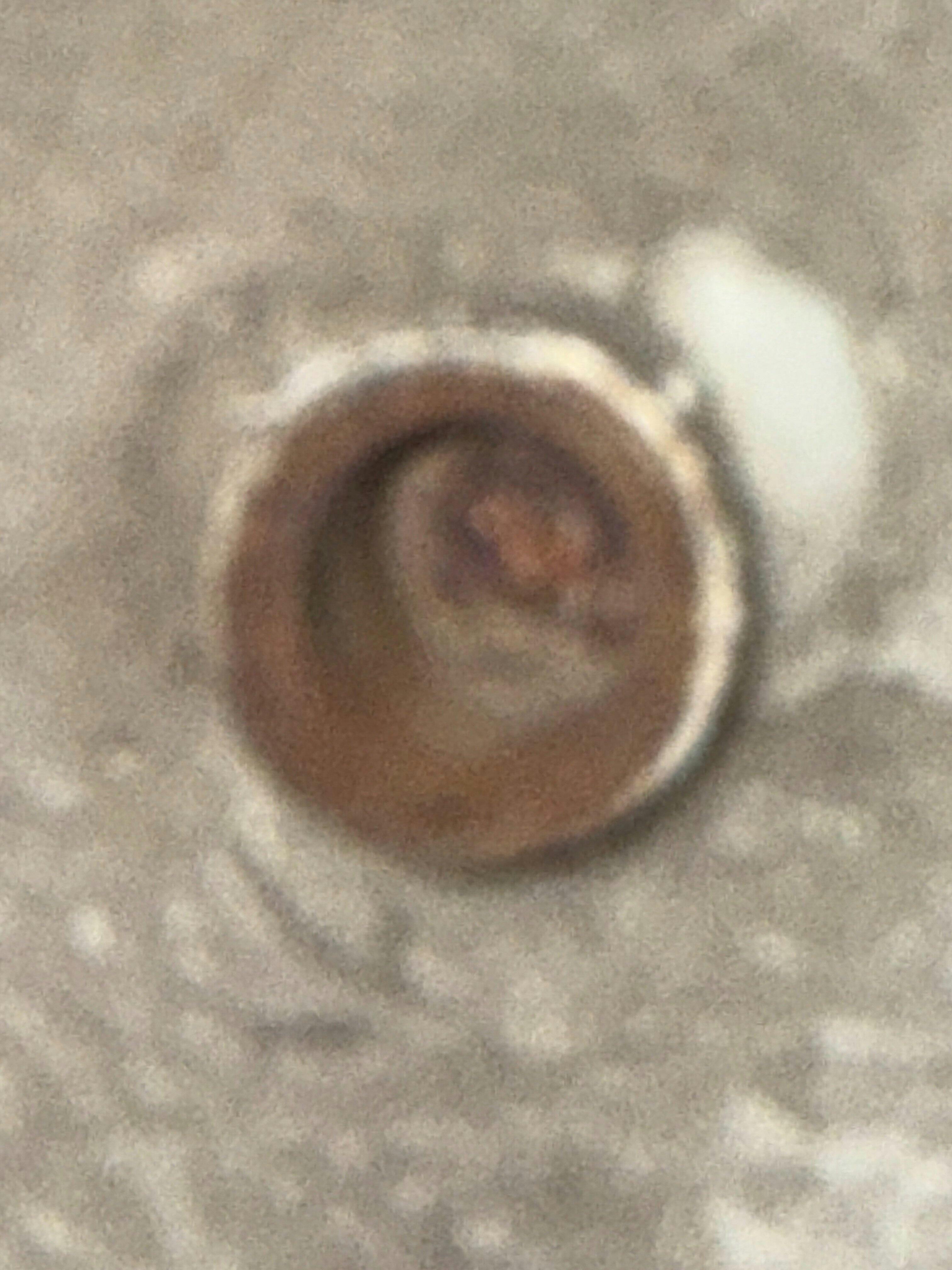

The Baja Bracket Rear Shock mount kit is a solution Van Compass has developed to eliminate one of the glaring shortcomings in the Sprinter's rear suspension setup: a single shear upper shock bolt. A single shear bolt has its benefits mostly in cost and ease of packaging, and for a delivery van on the street with frequent fleet service checks, this isn't a problem. Without reinforcement on both sides of the upper shock bushing, this puts a large amount of cyclical stress on the factory shock bolt. Over time, the bolts can stretch or come loose after long miles of washboards, and the bolt eventually yields at the worst possible location: right where it enters the threaded bung on the chassis. For our customers, exploring remote backcountry terrain the shock is a critical part of safe travel ensuring that the weight of the vehicle is kept safely under control in all conditions.

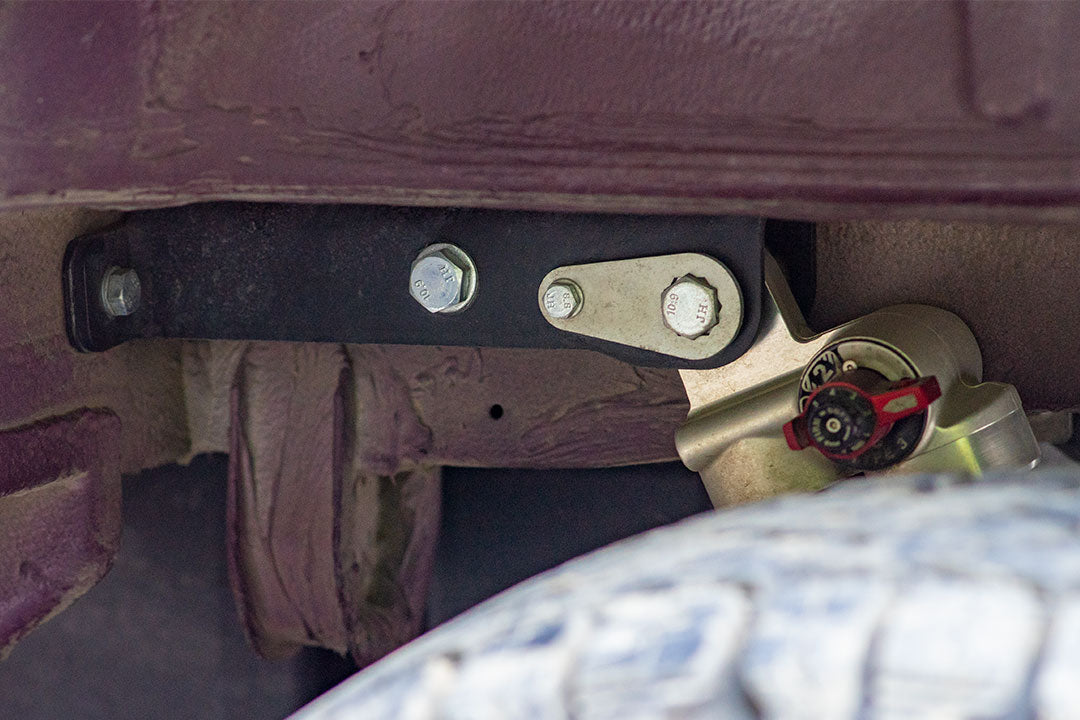

Our Baja Bracket is a sturdy, precision engineered solution to capture both sides of the upper shock bushing and eliminate the dangerous fulcrum effect that causes a bolt to eventually shear. The part is laser cut and CNC bent from 3/16" formed steel, fixture welded to ensure accuracy, then powder coated for good looks and longevity. A complete hardware kit and slotted holes ensure perfect fit and alignment on all vans, while a machined tubular brace dissipates the load of the shock safely throughout the frame rail. At Van Compass, we have the solution that won't leave you stranded. Van Further.
- Reinforces weak factory upper shock bolt.

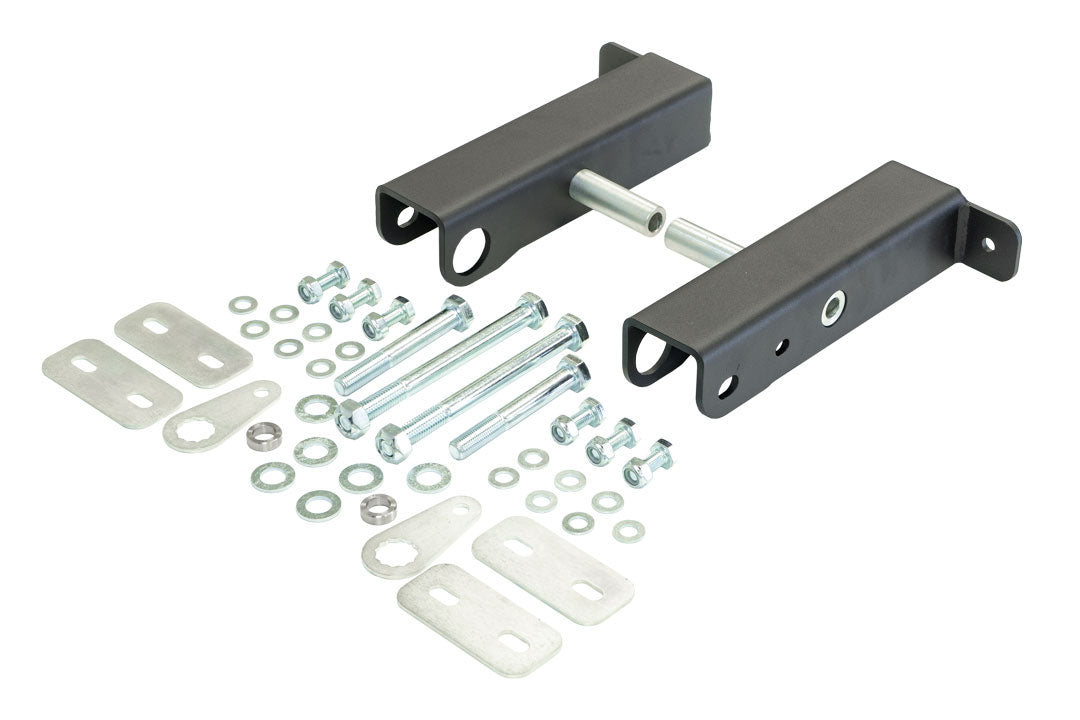

- Includes all necessary hardware.
- Works with stock and aftermarket shocks.
- Works with stock and lifted vans.
- Simple installation with basic hand tools.
NOTE: Please confirm there are no plumbing or wiring obstructions before ordering. Depending on the builder, some vans may have accessories routed that will interfere with fitment of these brackets. Some Revels and Storytellers have plumbing and wiring routed through part of the spring hanger on the passenger side, but these brackets will still fit that application.
Sprinter Baja Bracket shock mount installation instructions:
Recommended Shop Labor Time: 1 Hour
