ENGINE SKID PLATE - SPRINTER 4X4 (2015-2022 2500 OR 3500) by VAN COMPASS

SKU:4010

$ 784.90 USD

Sale Sold out

Shipping calculated at checkout.

VAN OPTIONS 2500 4X4 2500 4X4 WITH VAN COMPASS 2" LIFT KIT 3500 4X4 3500 4X4 WITH VAN COMPASS 2" LIFT KIT

Add to compare

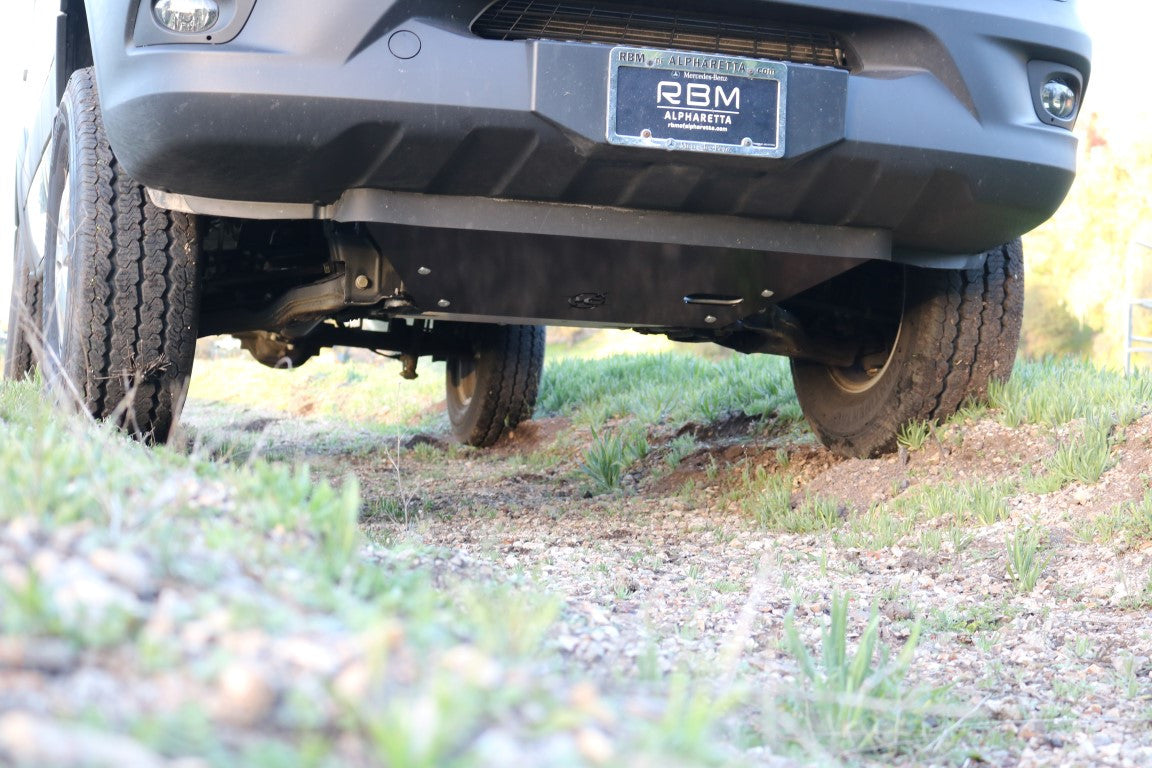

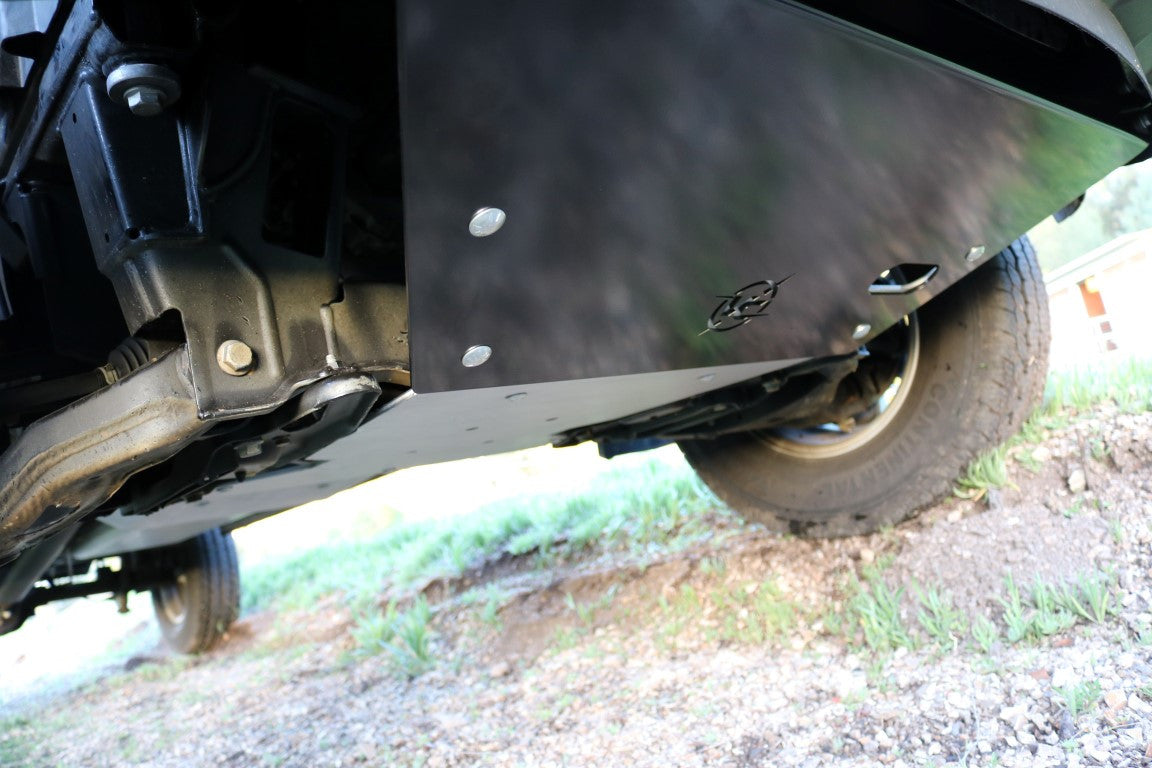

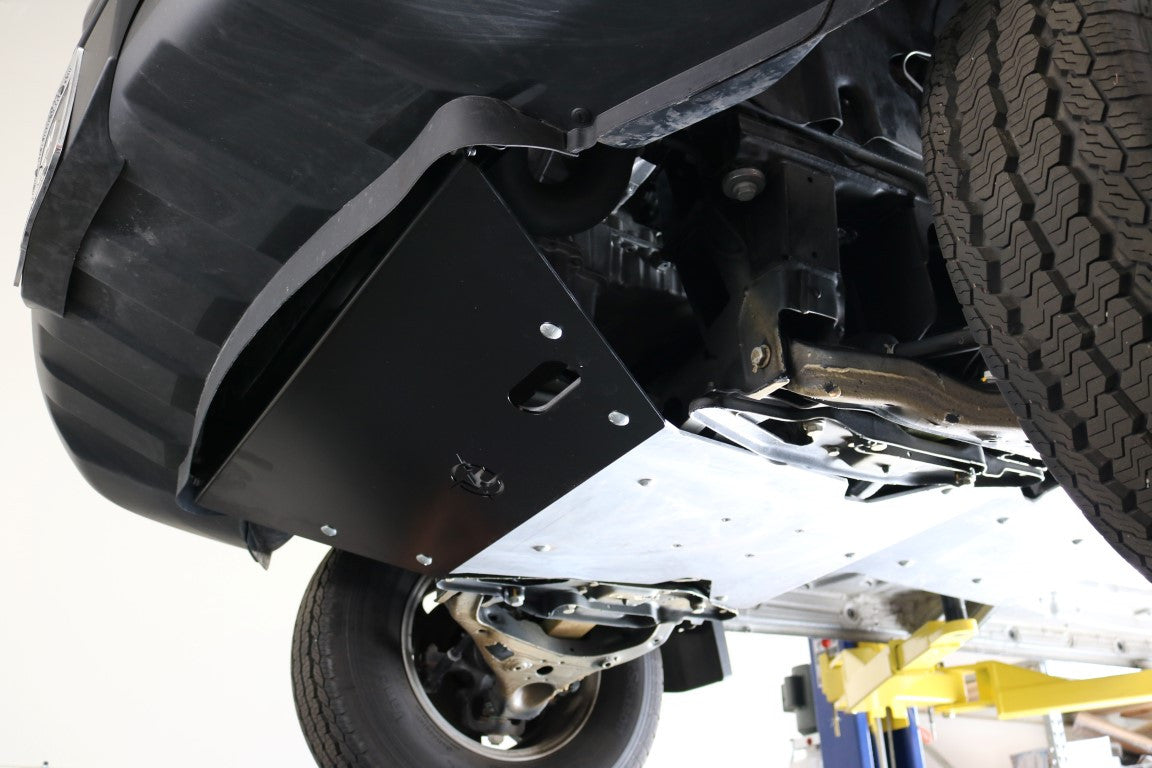

Explore with confidence in your 4x4 Sprinter with the Van Compass Engine skid plate. Designed to create a strong, smooth surface to slide over or bash into. The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4" thick 6061-T6 Aluminum and 3/16" high strength steel. The skid system is 100% bolt on with all the hardware provided. Engine oil changes can be performed without removal of skid system. For additional protection add the transmission/transfer case skid plate and fuel tank skid plate!

View full details

INCLUDED COMPONENTS

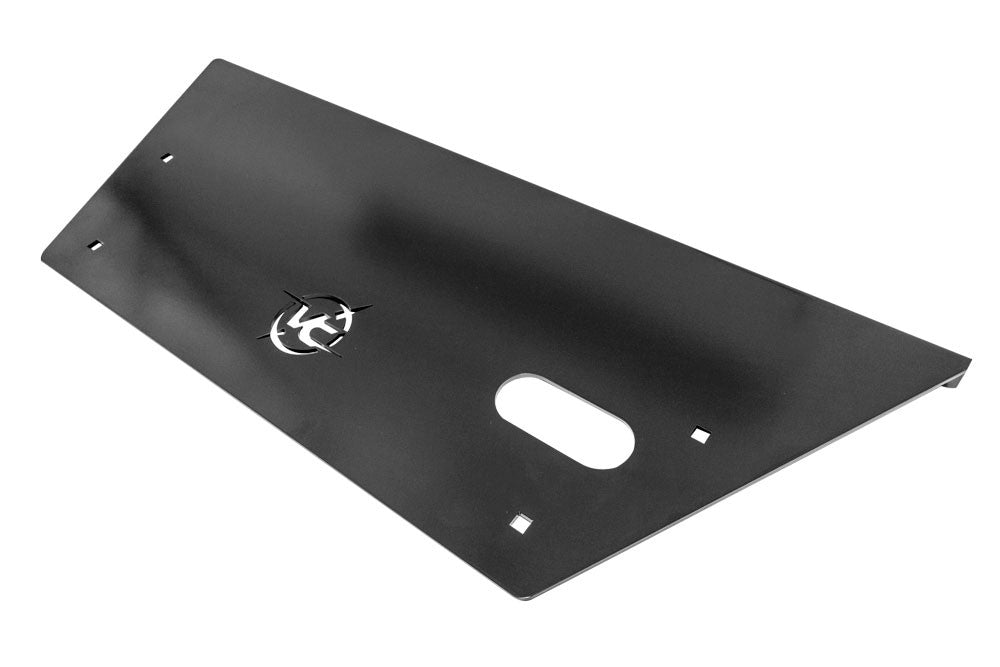

3/16" Steel Front Bash Plate, Black Powder Coat finish for corrosion protection

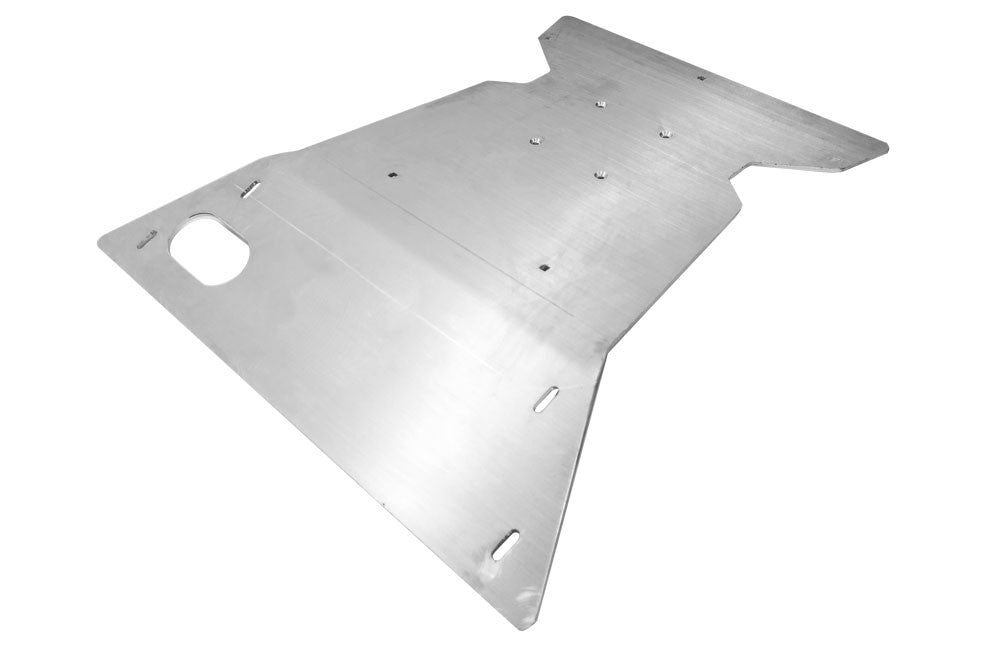

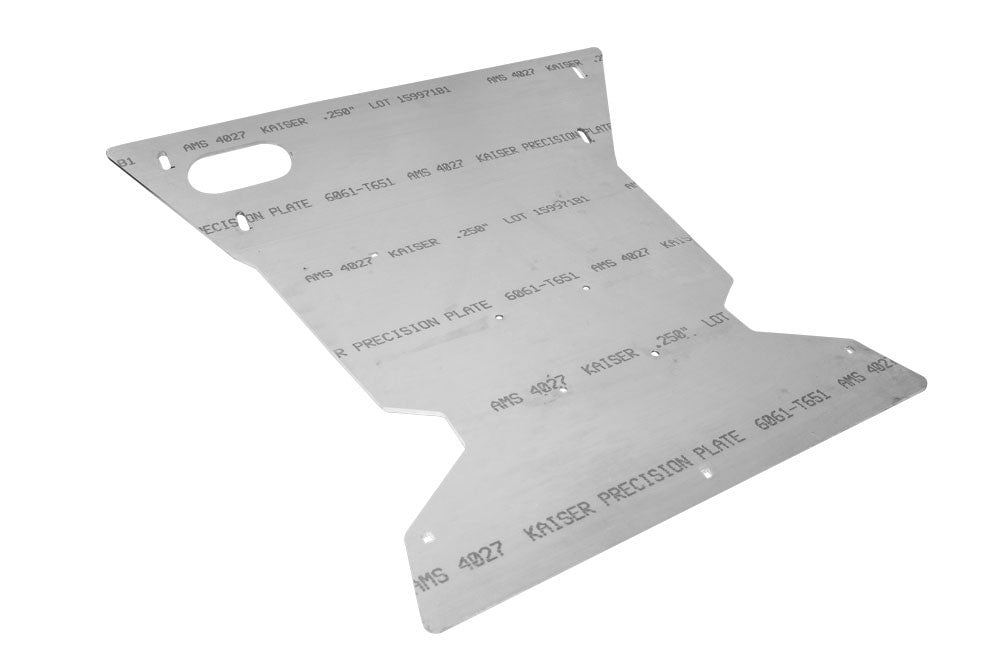

Engine Skid Plate - 1/4" 6061 T-6 Aluminum
All necessary hardware
Total installed weight 55lbs
The 3500 kit includes 4010-02 "over run" mounts that are not installed on the 3500 chassis from the factory.

FITMENT GUIDE

MODEL: SPRINTER 2500, 3500

YEAR: 2015-2022

DRIVE TYPE: 4X4, AWD

NOTE: 4029 2" lifted version is ONLY compatible with Van Compass 2" lift kit. Agile and other brands utilize non lifted part.

NOTE: 4010 skid WILL fit 2wd Sprinter ONLY if Van Compass Striker 2" lift kit is installed.

INSTRUCTIONS

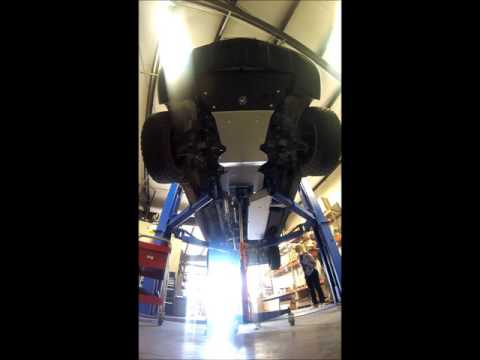

2015-2022 Sprinter 4x4 Engine Skid Plate Installation Instructions:

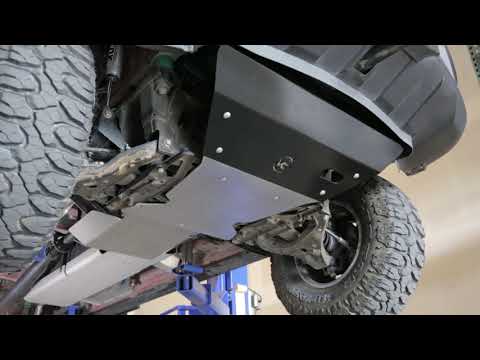

2015-22 Sprinter 4x4 3500 Engine Skid Plate Installation Instructions:

LABOR TIMES

Recommended Shop Labor Time: 1 Hour

Skid Plates

These are ideal for our VS30! Now the entire underside of our van is protected. Great design and easy to install, thanks VC for well designed useful products!

awesome product

I always install engine skid plates on my 4x4's worth the peace of mind if you drive off road, even on easier rated trails. Easy install if you have any type of industrial skills, no help, no jack.... Fast shipping and great communication.

Comforting to know it’s there

great piece of protection for the van, installs easily and comes with good instructions. If you spend much time underneath yours you will see that this piece is well worth its cost. Better to have it and not need it than need it and not have it.

Great product

Absolutely love the engine skid plate. Comes bare so you can paint/ powder coat it any color you want. Did the driveway install, the only tricky part is the spacers (they tell you this in the instructions). I used a tie wrap around mine to hold them upright and to extend my “reach” inside the frame with them.

Highly recommend this product.

Rob

Great product, not to difficult to self install

We purchased the Engine, Transmission, and Diff Skid Plates. With the use of the You Tube Video from Owl Vans, the plates were not difficult to install myself. One 61 year old man, on his back, in the driveway.

The most difficult part is installing the spacers which I came up with a great solution for. Using a metal coat hanger, I cut off a piece about four inches long. I folded it into a "U" shape essentially making a "Spring". At the top I folded tabs over. Insert the "Spring" from the top into the holes of the frame. Slide the spacer up onto the "Spring". When you get everything lined up and push the screw through, it will push the "Spring". No cutting your fingers trying to get these spacers in.

If you would like a picture of my "Spring" email me at: [****] and I will send you a picture.
