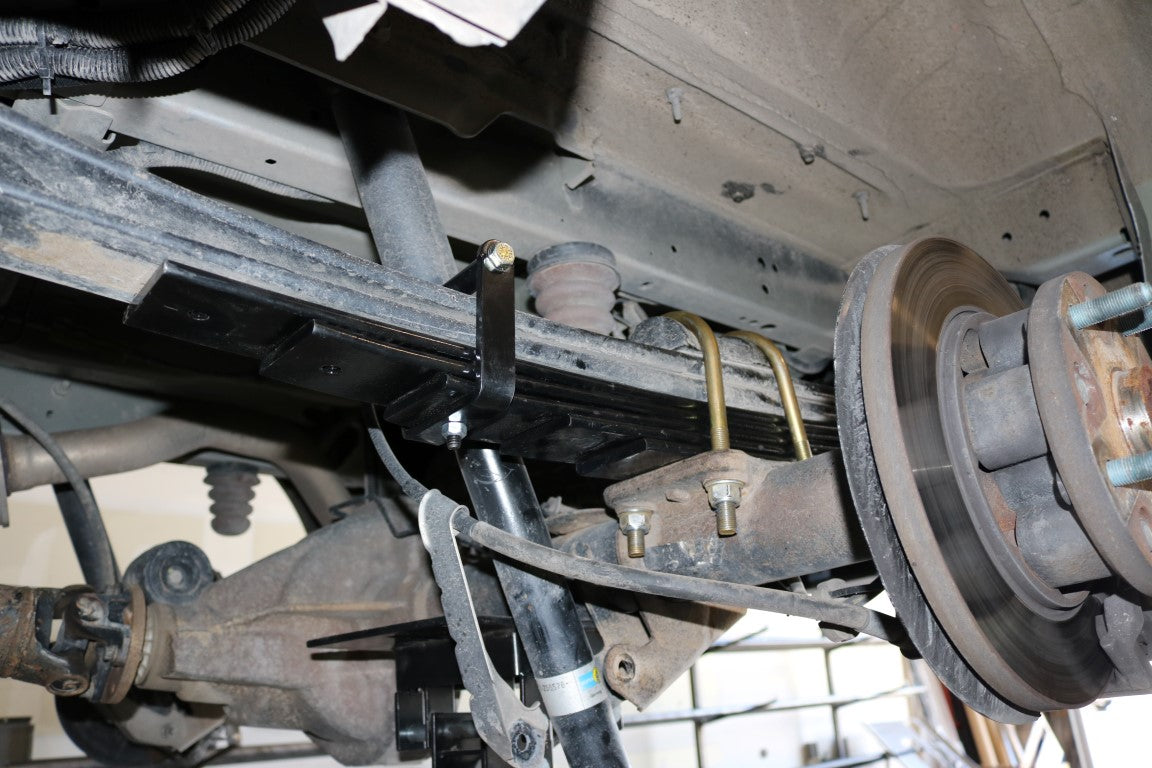

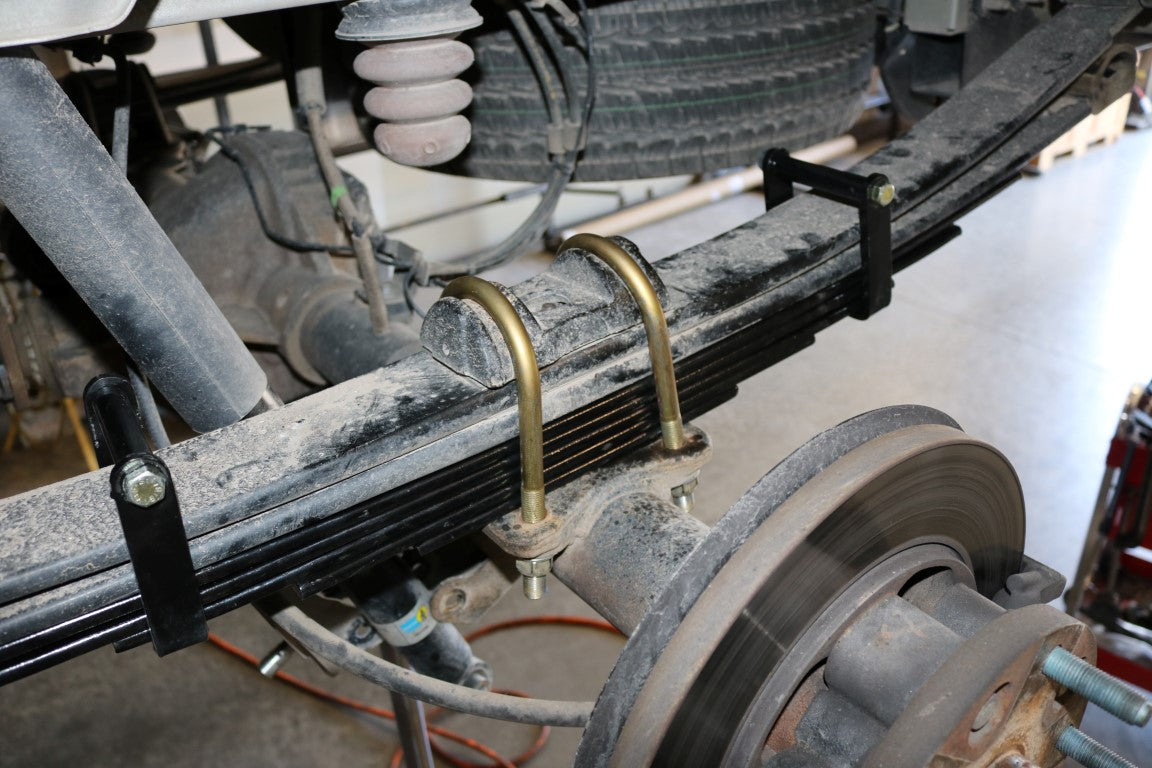

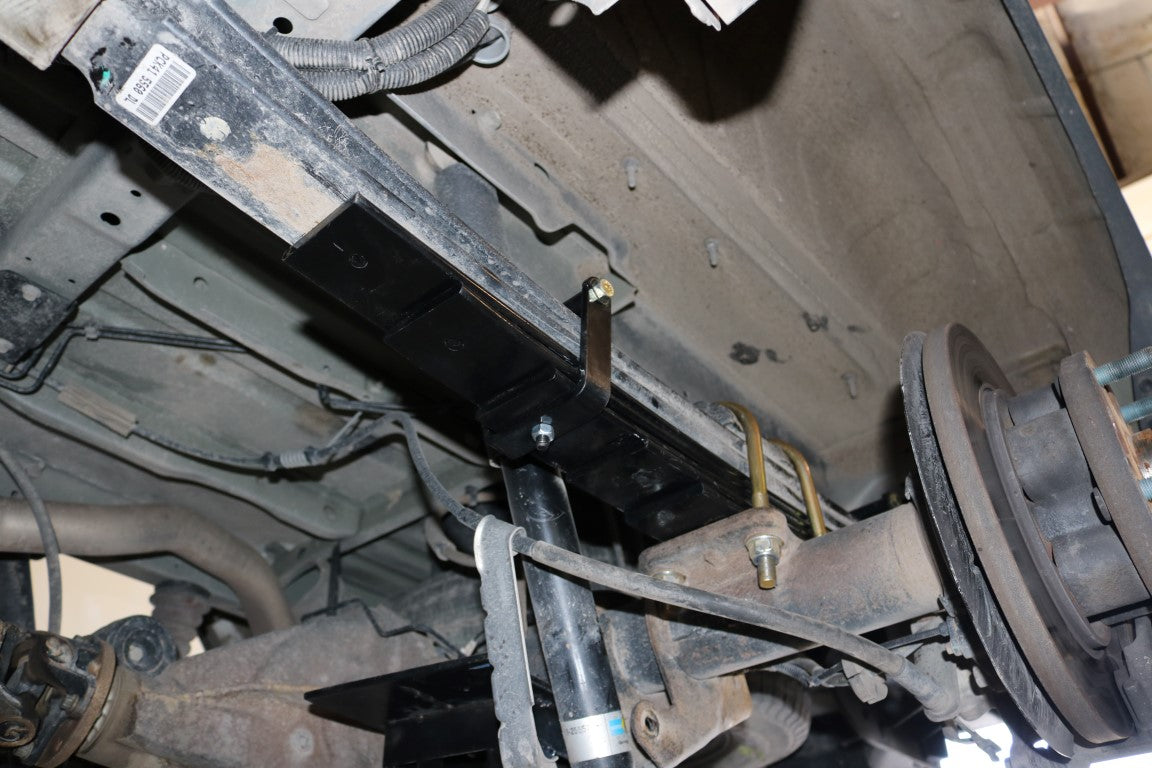

As a vehicle approaches its GVWR (Gross Vehicle Weight Rating), the rear suspension will naturally begin to sag and ride quality will begin to suffer. The Ford Transit van is no different. This multi leaf spring pack installs under the factory leaf springs and can increase ride height from 1" to 1.5" (25mm to 33mm) depending on the vehicle's weight distribution when installing 3 of teh 5 springs. The increase in spring rate gained by this leaf pack along with the additional clearance between the bumpstop and axle will reduce the chances of bottoming out, enhance vehicle stability, ride comfort and restore the factory look of the van. This product is designed to improve ride and handling while at or near GVWR, however we do not recommend exceeding the manufacturer's GVWR. All new hardware is included with this kit. New longer U-bolts, washers and locking nuts ship with the springs.
For Quigley and Quadvans that are designed with a built in 2” lift from their respective 4x4 conversion, all 5 leaf springs can be installed to replace the rear lift block installed by Quigley / Quadvan. These can be added to Van Compass Terrain 2wd 2.5" lifted vans by removing the lift block. The full 5 leaf pack will retain or in most cases lift the van an additional ½-1” from its current height. Again, a drastic improvement in vehicle stability and ride comfort can be expected for a fully loaded / built out 4wd Transit. The driver can expect a much more sporty feel and less side to side rocking when traversing uneven bumps both on and off road. Pair this spring pack with our custom tuned rear Fox shocks to achieve the ultimate in ride and handling comfort for the Ford Transit.
Compatible will all Transits that have 2 factory leaf springs per side. 3500HD vans have an additional overload spring that will not work with this kit.

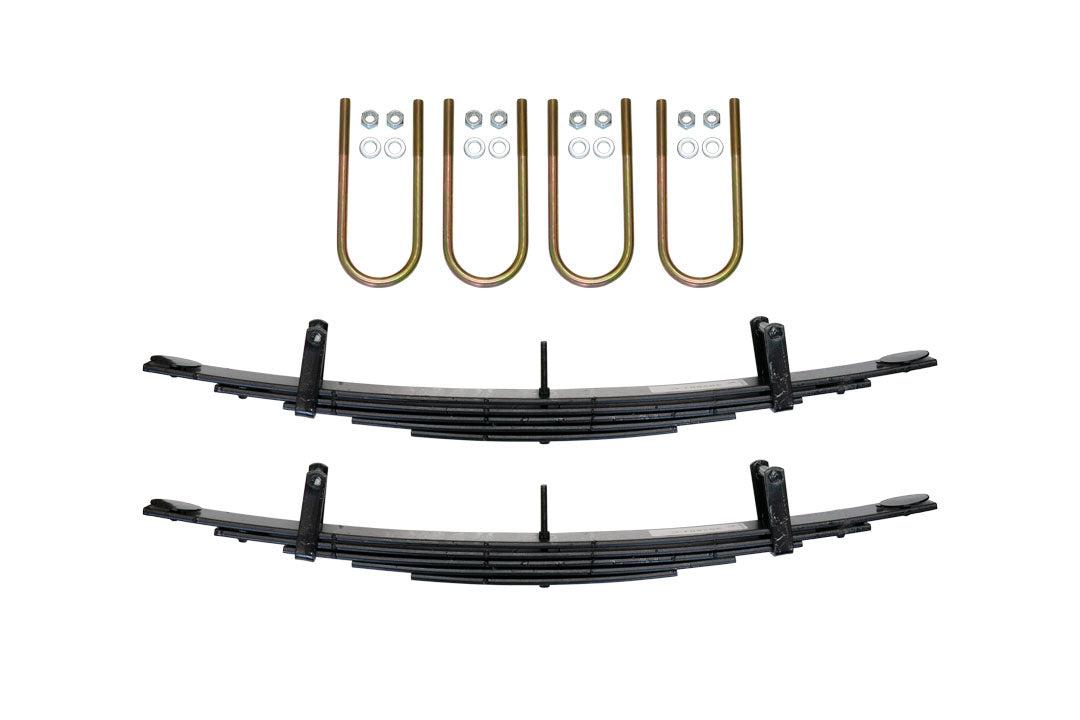

- Rear 5 leaf mini spring pack
- Hardware kit with new u-bolts
